ShrinkTrak Heat Shrinkable Markers

ShrinkTrak Heat Shrinkable Markers

ShrinkTrak Heat Shrinkable Markers

Product catalog summary
ShrinkTrak™ Heat Shrinkable Markers Overview
HellermannTyton's ShrinkTrak™ markers are designed for easy marking of wires, cables, and components. These markers feature a ladder-style design with side slits for easy application and are compliant with military specifications. They are designed to reduce printer jams and can be printed using HellermannTyton's TagPrint™ Pro software and thermal transfer printers for a permanent, solvent-resistant print.

Key Features
  • Versatility: Made from flexible, flame-retardant polyolefin tubing with a 3:1 shrink ratio, available in standard colors of yellow, white, and black.
  • High Performance: Center slit versions reduce hand cutting, and a non-slip, printable liner allows for additional data printing. Utilizes HellermannTyton’s Durattach ribbon system for optimal print performance.
  • Printer Compatibility: Designed to dispense directly into HellermannTyton thermal transfer printers, reducing jams and facilitating faster dispensing.

Specifications
  • Material: Polyolefin, cross-linked (POX)
  • Product Thickness: 3 mil total thickness
  • Shrink Temperature: +194 °F (+90 °C)
  • Operating Temperature: -67 °F to +275 °F (-55 °C to +135 °C)
  • Flame Retardant: Yes, UL224 VW1
  • Certification: AMS-DTL-23053/5 Class 1 and 3, SAE-AS81531, MIL-STD-202G Method 215K

Product Dimensions
Various sizes are available, with specific dimensions for inside diameter as supplied and after recovery, wall thickness after recovery, overall width, and height. These dimensions are approximate and subject to technical changes.

Product Selection
The document provides a detailed list of product options, including article numbers, part numbers, types, colors, center slit options, dimensions, and package quantities for different outside diameters ranging from 0.125" to 1.0".
See more

Catalog excerpts

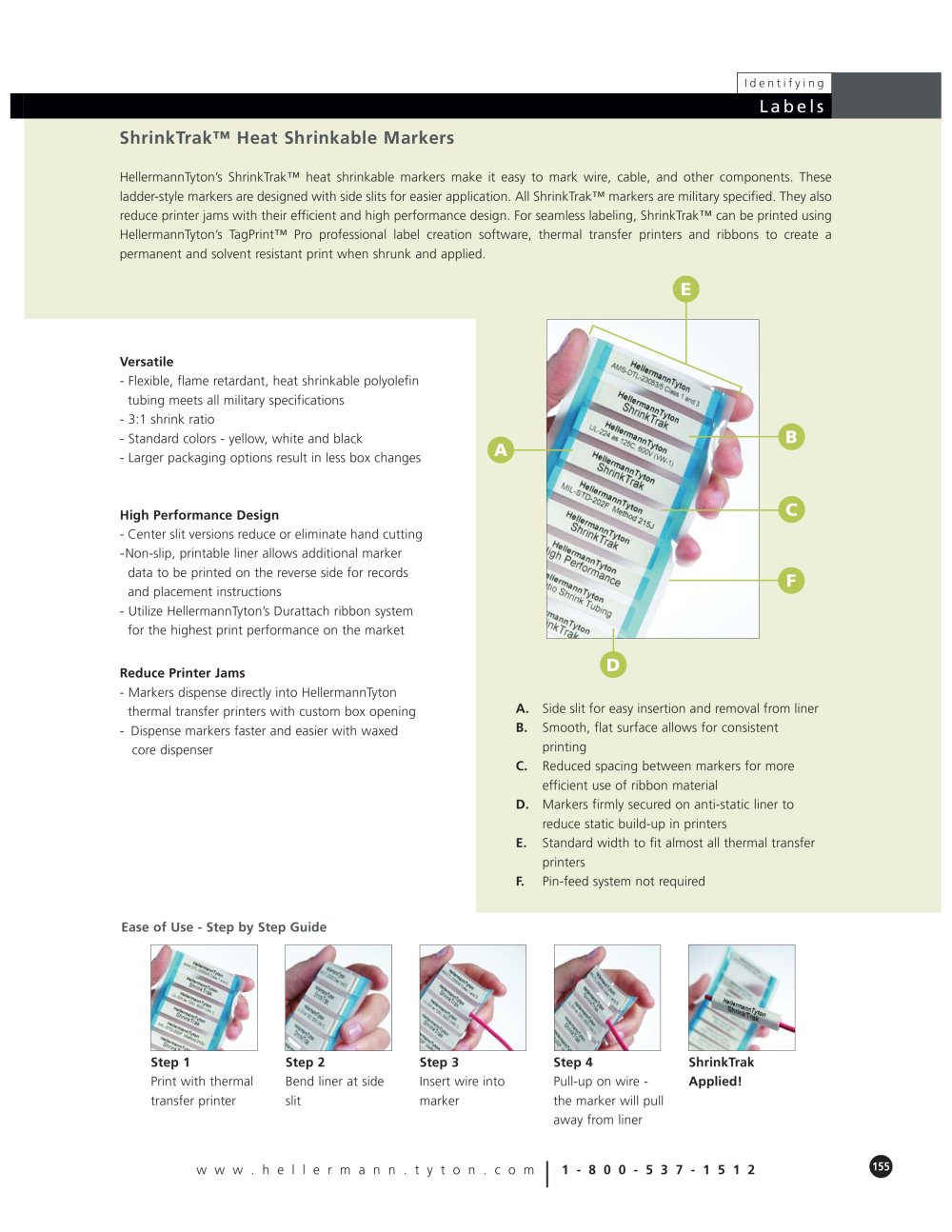

ShrinkTrak Heat Shrinkable Markers -1

HellermannTytonْs ShrinkTrak heat shrinkable markers make it easy to mark wire, cable, and other components. Theseladder-style markers are designed with side slits for easier application. All ShrinkTrakٙ markers are military specified. They alsoreduce printer jams with their efficient and high performance design. For seamless labeling, ShrinkTrak can be printed usingHellermannTytonْs TagPrint Pro professional label creation software, thermal transfer printers and ribbons to create apermanent and solvent resistant print when shrunk and applied. > Versatile - Flexible, flame retardant, heat shrinkable polyolefin tubing meets all military specifications- 3:1 shrink ratio - Standard colors - yellow, white and black- Larger packaging options result in less box changes > High Performance Design - Center slit versions reduce or eliminate hand cutting-Non-slip, printable liner allows additional marker data to be printed on the reverse side for records and placement instructions- Utilize HellermannTytonْs Durattach ribbon system for the highest print performance on the market > Reduce Printer Jams - Markers dispense directly into HellermannTyton thermal transfer printers with custom box opening-Dispense markers faster and easier with waxed core dispenser A. Side slit for easy insertion and removal from liner B. Smooth, flat surface allows for consistent printing > C. Reduced spacing between markers for more efficient use of ribbon material D. Markers firmly secured on anti-static liner to reduce static build-up in printers E. Standard width to fit almost all thermal transfer printers F. Pin-feed system not required Step 1 Step 2 Step 3 Step 4 ShrinkTrakApplied! Ease of Use - Step by Step Guide Print with thermaltransfer printer Bend liner at sideslit Insert wire intomarker Pull-up on wire -the marker will pullaway from liner w w w . h e l l e r m a n n . t y t o n . c o m >

 Open the catalog to page 1
