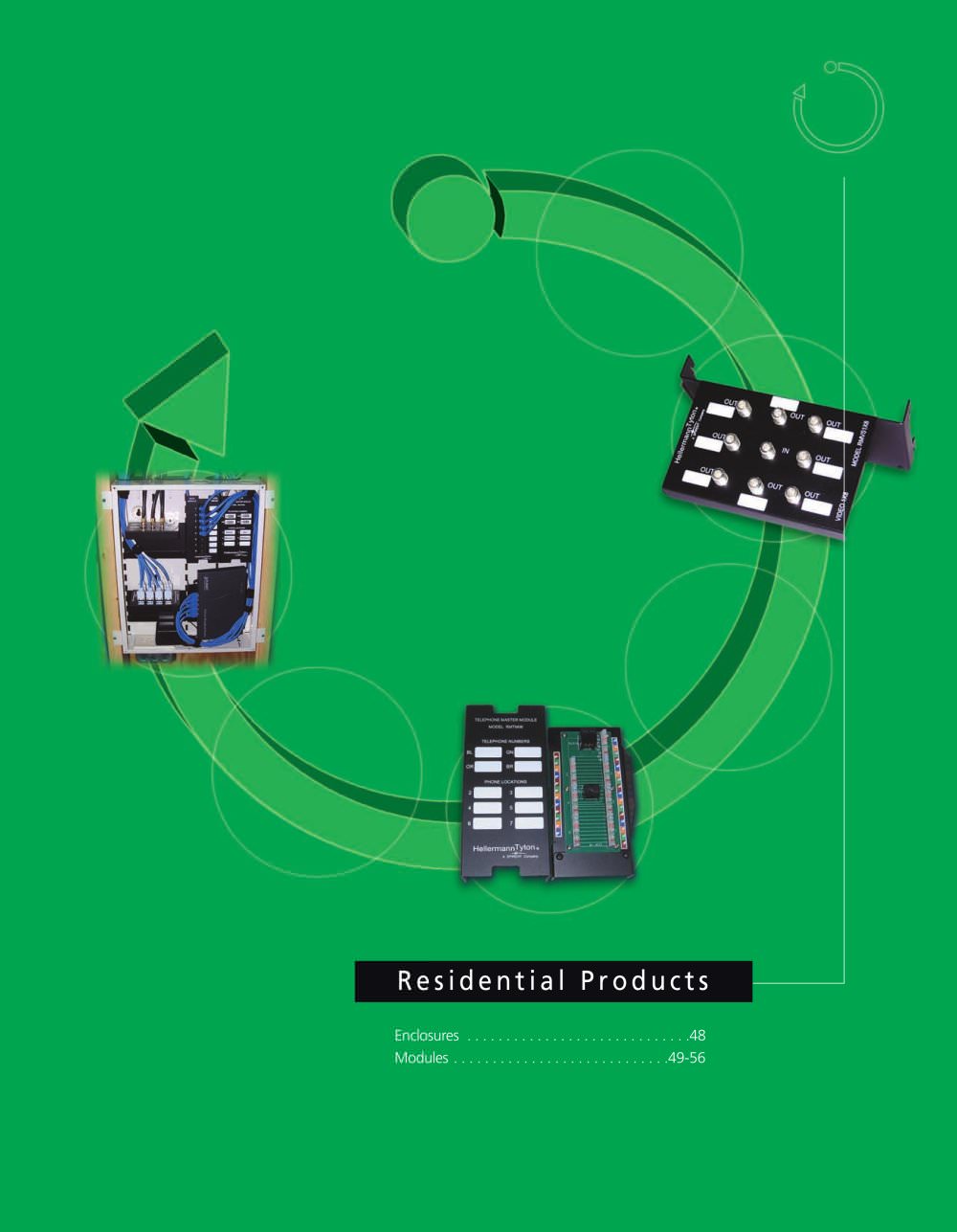

Residential Products

Residential Products

Product catalog summary

Residential Enclosure Overview
The Residential Distribution Enclosure is an integral part of the Home Network Sciences system, emphasizing durability and ease of installation. It is made from 18 gauge cold rolled steel and is UL Listed. The enclosure can be either surface-mounted or recessed between standard 16" studs, accommodating various drywall thicknesses. It features a unique latching system for easy module mounting, multiple knock-outs for conduit and power outlets, and includes a grounding screw for electrical grounding. Two models are available: RE18 and RE28, each with distinct dimensions and features.

Compatible Modules
The document outlines several modules compatible with the Residential Enclosure, each tailored for specific networking and distribution functions:

Multi-Line Telephone Distribution Module: Provides 24 multi-line connections, supports up to 4 incoming lines, and includes DSL internet access support.
Telephone Master Module: Facilitates basic telephone, fax, and modem services with up to 4 lines and 6 locations, and includes a security panel connection.
Telephone Expansion Module: Expands the capabilities of the Telephone Master Module to support additional phone locations.
Telephone & Video Combination Module: Distributes telephone and video services, including CATV, to multiple locations.
Keystone Module: Connects computers to a LAN, supports various modular jacks, and complies with EIA/TIA standards.
Telephone and Data Module: Supports LAN connections and telephone terminations, certified for Gigabit Ethernet performance.
Video Splitter Modules: Distribute video services to multiple locations, available in 1 GHz and 2 GHz bandwidths.
Audio Distribution Module: Enables whole-house audio distribution for up to 6 speaker pairs.
Satellite Multi-Switch: Distributes satellite signals to multiple receivers, with specific frequency and impedance specifications.
CATV Video Amplifier: Amplifies video signals before distribution, with adjustable signal power and a specific frequency range.
Network Hub/Switch Modules: Offer 10BASE-T and 10/100BASE-T options for data sharing, compliant with IEEE standards.
Internet Broadband Router: Shares a single internet connection among multiple computers, featuring a built-in network switch and security features.

All modules are designed for straightforward installation within the enclosure, utilizing a consistent latching design and adhering to relevant industry standards.

Catalog excerpts

Pkg. Part NumberDescriptionDimensionsQty. RMVS1X4 Four Port - 1 GHz Video Splitter3.4" H x 6.3" W x 3.5" D1 Full - size module, the width of the residential enclosure grid accommodates four half-sized or two full-sized modules. > Pkg.Part NumberDescriptionDimensionsQty. RMVS1X8 Eight Port - 1 GHz Video Splitter3.4" H x 6.3" W x 3.5" D1 Full - size module, the width of the residential enclosure grid accommodates four half-sized or two full-sized modules. > Pkg.Part NumberDescriptionDimensionsQty. RMVS1X42G Four Port - 2 GHz Video Splitter3.4" H x 6.3" W x 3.5" D1 Full - size module,the width of...

Open the catalog to page 6

Pkg. Part NumberDescriptionDimensionsQty. RMVA CATV Video Amplifier Module 4.3" H x 6.7" W x 4.3" D1 Full - size module, the width of the residential enclosure grid accommodates four half-sized or two full-sized modules. > Pkg. Part NumberDescriptionDimensionsQty. RMSM04 Satellite Multi-Switch, 4-output5.2" H x 6.4" W x 1.8" D1 Full - size module, the width of the residential enclosure grid accommodates four half-sized or two full-sized modules. >

Open the catalog to page 8
