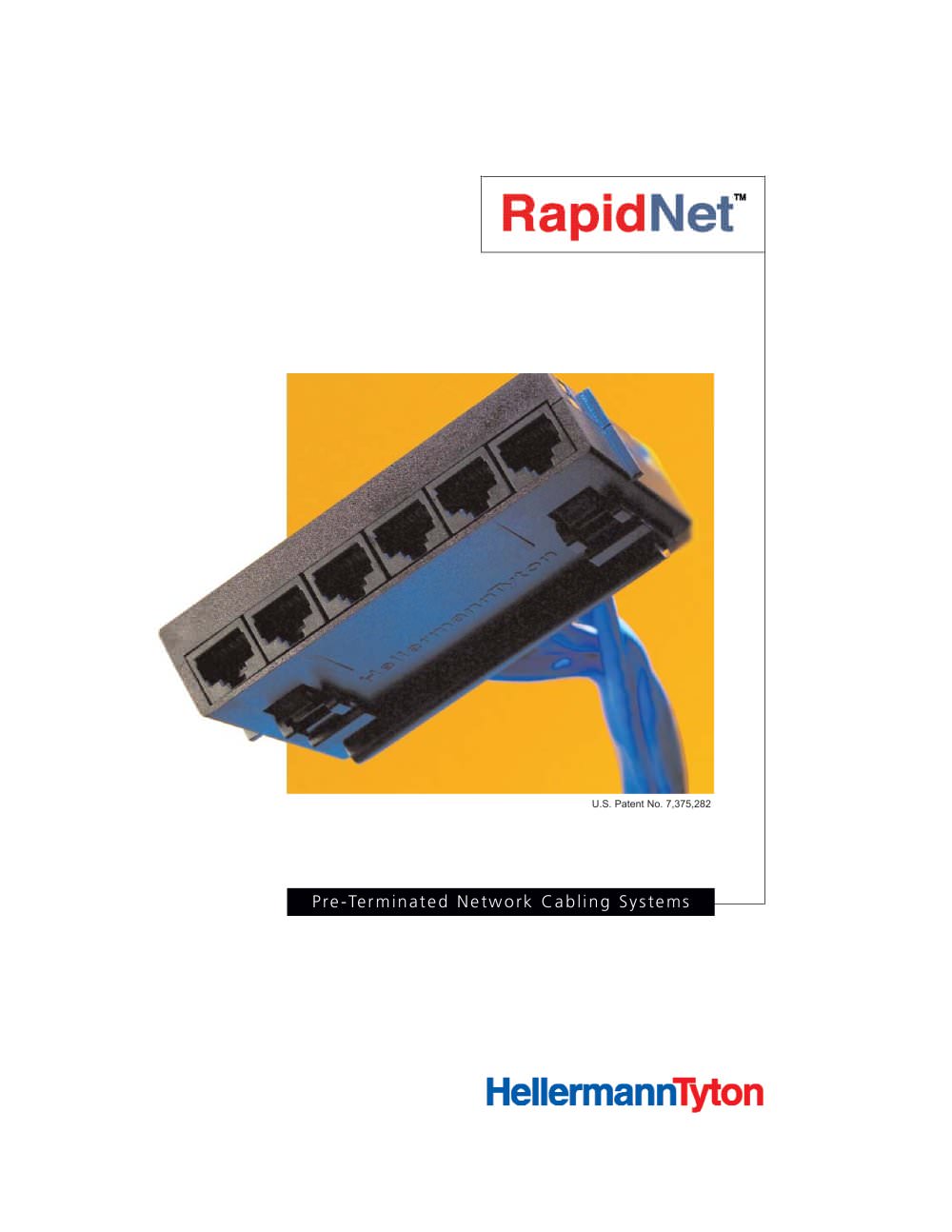

U.S. Patent No. 7,375,282 Pre-Terminated Network Cabling Systems >

RapidNet is a pre-terminated "plug and play" system which does not require on-site termination or certification testing. This dramatically reduces installation time - up to 85%. Even though installations are completed in record time, quality and performance are never compromised because each individual link is terminated and tested by HellermannTyton before being delivered to the site. > RapidNet - A Revolution in Copper & Fiber Network Cabling As a global manufacturer of network cabling solutions, HellermannTyton has always been at the forefront of technological advancement within the industry....

End-User Benefits -Verified to reduce installation by 85% -Quality controlled and 100% factory tested - Enhanced security through reduced personnel access - Ability to easily make cabling additions in-house-25 Year System Warranty Installer Benefits - Fewer technicians required -More projects completed with the same workforce -Factory terminated and 100% tested > 2 www.hellermann.tyton.com 1-800-537-1512 size="-1">

Product Features -Positive PSACR over 350 MHz and a typical worst-case margin of 15 dB at 250 MHz-Bundled cable is UL Verified to Category 6, TIA/EIA-568.B.2-1 specifications -Certification test reports included with all links -1U modular panel accepts 4 RapidNet cassettes for 24-ports -2U modular panel accepts 8 RapidNet cassettes for 48-ports -Available in lengths from 10 - 295 ft. Product Selection Cassette to Cassette (panel to panel) Part Number > RapidNet Category 6 Copper UTP Solutions RapidNet Category 6 is an ideal solution forhigh performance cabling requirements, such as Gigabit Ethernet....

RapidNet Category 6 Copper UTP Solutions continued Product Selection Cassette to Plug (panel to plug) > Plug end comes with protective mesh sleeve Part Number Description RNC6PCMPXXX* RapidNet CAT6 CMP (plenum) cassette to plug 6-port loom - blue RNC6PCMRXXX* RapidNet CAT6 CMR (riser) cassette to plug 6-port loom - white > *Note: To complete part number, replace the XӔs with the length required in feet, 10 to 295 ft. Product Selection Cassette to Open End (panel to open end) Part Number Description RNC6OCMPXXX* RapidNet CAT6 CMP (plenum) cassette to open end 6-port loom - blue RNC6OCMRXXX* RapidNet...

RapidNet Category 6 Shielded Copper Solutions binder. The cassettes for the shielded solution have a metal plat-ing applied to both the inside and outside surfaces to provide for proper grounding. This dual layer shield ensures effective screening of emissions and immunity of external electrical noise. Product Features -Cassettes are manfactured from high strength, light weight thermoplastic material- Metal plating on inside and outside of cassettes ensures effective grounding of system-Shielded RapidNet modular panel is interchangeable with RapidNet UTP copper and fiber cassettes-Exceeds TIA/EIA-568.B.2-1...

RapidNet Fiber Solutions RapidNet Fiber is an excellent solution for extremely high bandwidth needs or extended distances. RapidNet Fiber utilizes the LCconnector with a 12-fiber single unit plenum (OFNP) cable, or utilizes the SC connector with a 6-fiber single unit plenum (OFNP)cable. Cut to the customer-specified length at HellermannTyton, each 12-fiber or 6-fiber link is supplied terminated at both ends toHellermannTytons RapidNet cassettes. Lengths up to 200 feet are supplied in the RapidNet box; lengths of 201 feet or more are supplied on the RapidNet reel. Each pre-labeled 12-fiber or...

RapidNet Fiber Solutions continued Product Selection Cassette to Connector (panel to enclosure) Part Number Description RNFAAAXXXLC** RapidNet 12-fiber LC cassette to 12 LC connectors RNFAAAXXXSC** RapidNet 6-fiber SC cassette to 6 SC connectors > * Note:To complete part number, replace the AӔs with the appropriate fiber type:62P, 50P,50P10G, or SMP.* Note:To complete part number, replace the XӔs with the length required in feet. Connector end comes with pulling eye RapidNet Modular Panels All RapidNet cassettes utilize our latch design to allow quick and easy installation into modular patch...

Part Number Description RNSPP1U RapidNet Shielded Modular Panel - 1U- 24 ScTP Copper Ports > RNSPP1U (front) RNSPP1U (back) Part Number Description RNBLANK RapidNet Modular Panel Blank Insert > RNBLANK RNRCM Part Number Description RNRCM RapidNet Rear Cable Manager > (for use with 1U RapidNet Modular Patch Panels only) RapidNet Modular Panel Identification Solutions HellermannTyton offers the following identification solutions for use with RapidNet products. The front identification labels allowusers to easily meet TIA/EIA-606-A and TIA-942 administration standards. Product Selection Labels for...

continued Wire Management Products PkgQty Part Number Description . THC02 2U Horizontal Cable Organizer with five metal rings 1 PkgQty Part Number Description . THC01 1U Horizontal Cable Organizer with five metal rings 1 Fiber Enclosures HellermannTyton fiber enclosures are recommended for use on the connector end of RapidNet fiber cassette to connector assemblies. Product Selection - LC Solution Part Number Qty . Requir ed 48 Fibers in 1U FERM18S1FAP8DMMLC3 > FERM18S FERM36SFAP8DMMLCFAP8SMMSC 96 Fibers in 2U FERM36S1FAP8DMMLC6 Product Selection - SC Solution Part Number Qty . Requir ed 24 Fibers...
