HellermannTyton
Racks & Cable Management Products

Racks & Cable Management Products

Product catalog summary

Enhanced Horizontal Wire Managers
HellermannTyton's enhanced horizontal wire managers are designed for 19" racks, featuring a one-inch minimum radius to prevent cable bending and ensure reliable transmission. They include snap-on covers for easy access and have a textured design to prevent fingerprints. Key features include smooth edges, wide spacing, mounting holes, and a sloped rear design. The material is UL94V-0 rated for flammability.

Wire Management Brackets
These brackets offer horizontal cable management for racks, available in single and dual-sided variations for one to three rack spaces. They feature extended covers to hide cables and a hinge design for easy access. Customization with logos is available.

Vertical Wire Management Brackets
Available in single and dual-sided styles, these brackets are suitable for side or center mounting on relay racks. They include feed-through holes and are available in 35" and 83" lengths, with replacement covers and hinges.

Relay Racks
Modular relay racks made from heavy-duty aluminum, available in 48" and 84" heights, designed for telecommunications equipment. They feature standard 19" EIA rack mount widths and are easy to assemble with pre-threaded holes.

Wall Mount Swing-out Rack
This rack allows equipment to swing out for easy wiring, featuring quick-release hinges for opening from either side, supporting standard 19" EIA rack mount widths.

Shelves
Solid and vented equipment shelves for 19" racks, made from 16-gauge steel, supporting up to 50 pounds for cantilevered and 75 pounds for center weight shelves.

Power Strips
Available in 6 or 10 outlet formats, these power strips comply with UL Standards 1363 and 1449. The 10 outlet version offers optional surge protection with a suppression level of 330V. All models include a 10-foot power cord.

Blank Rack Panels
These panels serve as fillers for unused rack spaces, available in three sizes to reserve space for future use.

Wall Mount Patch Panel Bracket
Designed for smaller installations, these brackets conserve floor space and are suitable for 19" patch panels, featuring right or left-hand hinging.

Cable Management Panels
These panels organize cables on a relay rack, available with metal or plastic hangers for easy organization.

Catalog excerpts

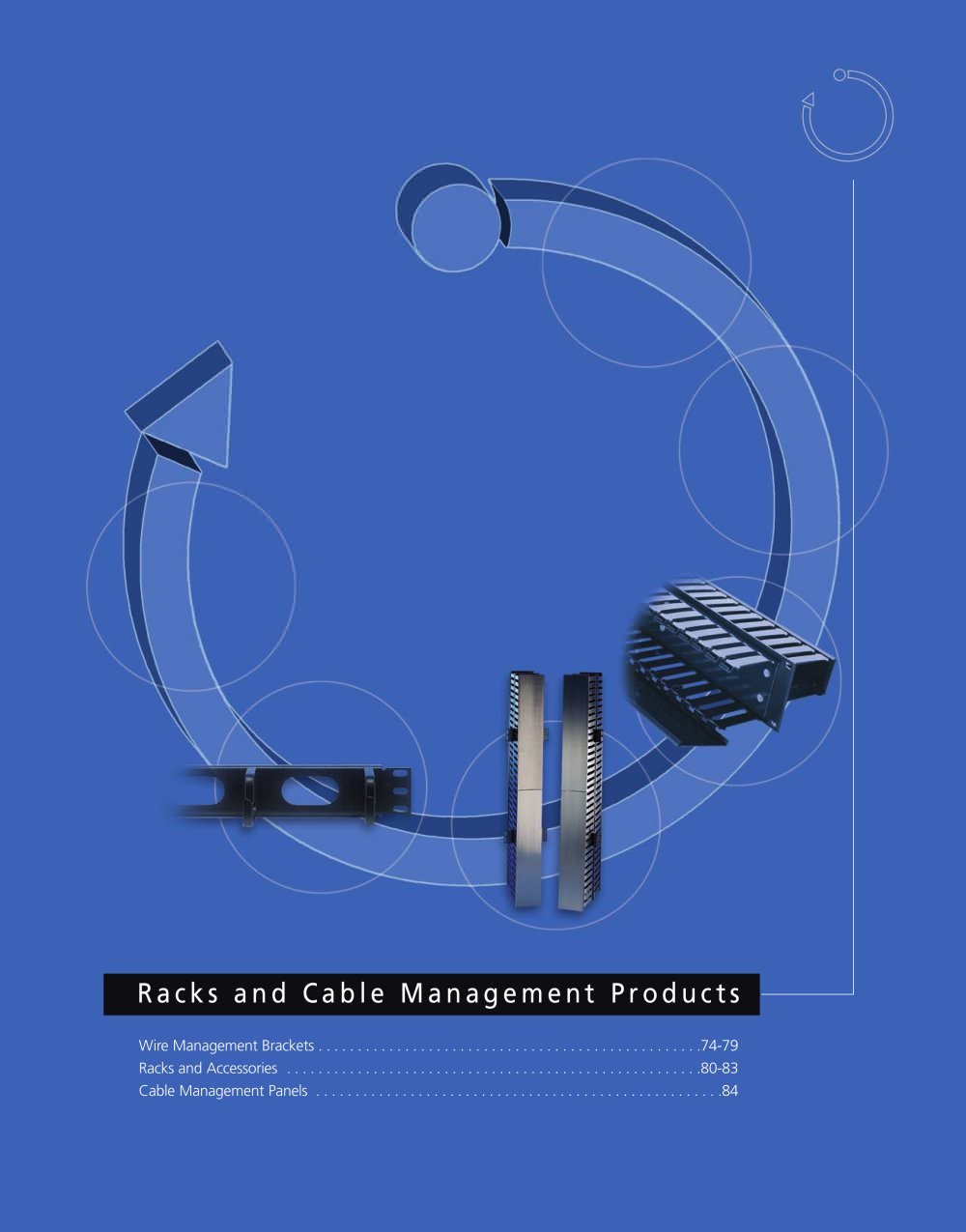

Wire Management Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74-79Racks and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80-83Cable Management Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 >

Open the catalog to page 1

Network Cabling Solutions HellermannTyton provides the most adaptable and systematic approach for cable management on relay racks. Offering a complete line of versatile products, these brackets and panels protect, route, and organize UTP, ScTP, coax and fiber optic cables and make it easy to perform moves or changes. For a completely enclosed appearance, HellermannTyton offers the horizontal and vertical wire management brackets. This design provides organization while keeping cables hidden. The cov-ers are easily removed and reattached providing quick and easy access to both the front and back...

Open the catalog to page 3

1. WMBN1 2. WMBP1 RackPkg.ShippingPart NumberDescriptionDimensionsUnitsQty.WeightOne Rack Unit Managers1. WMBN1 Single-Sided Horizontal Wire Manager1.5" x 2" slotted channel front111.00 lb 2. WMBP1 Single-Sided Horizontal Wire Manager1.5 x 3Ӕ slotted channel front112.00 lb 3. WMBN2 Dual-Sided Horizontal Wire Manager1.5" x 2" slotted channel front111.75 lb1.5" x 4" slotted channel back 4. WMBP2 Dual-Sided Horizontal Wire Manager1.5" x 3" slotted channel front112.16 lb1.5" x 4" slotted channel back Single-Sided Horizontal Wire Manager3" x 3" slotted channel front211.75lb Two Rack Unit Managers...

Open the catalog to page 4

Plastic film to protect cover provided Wire Management Bracket Hinges >

Open the catalog to page 5

Pkg.ShippingPart NumberDescriptionDimensionsQty.WeightSide Mount - Dual-sided, front and back managment1. VWMDS4X5BK Dual-Sided, Side Mount Mgr.35" high 4"x 5" slotted channel on front and back17.0 lb* VWMDS4X5BKH Dual-Sided, Side Mount Wire Mgr.35" high 4"x 5" slotted channel on front and back17.0 lbwith Hinged Coverswith 4 hinges 2. VWMDS4X5BK7 Dual-Sided, Side Mount Wire Mgr.83 high 4"x 5" slotted channel on front and back116.0 lb* VWMDS4X5BK7H Dual-Sided, Side Mount Wire Mgr.83Ԕ high 4"x 5" slotted channel on front and back116.0 lbwith Hinged Coverswith 8 hinges 3. VWMS4X4X5BK7 Dual-Sided,...

Open the catalog to page 6

Pkg.ShippingPart NumberDescriptionDimensionsQty.WeightCenter Mount - Dual-sided, front and back managment1. VWMDC4X5BK Dual-Sided, Center Mount Wire Mgr.35" high 4"x 5" slotted channel on front and back17.0 lb 2. VWMDC4X5BK7 Dual-Sided, CenterMount Wire Mgr.83 high 4"x 5" slotted channel on front and back116.0 lb 3. VWMC4X4X5BK7 Dual-Sided, Center Mount Wire Mgr.83Ԕ high 4"x 5" slotted channel on front and 116.0 lb4"x 4" slotted channel on back Single-Sided, Center Mount Wire Mgr.35" high 4"x 5" slotted channel on front13.5 lb Center Mount - Single-sided, front only managment 4. VWMSC4X5BK 5....

Open the catalog to page 7
