Product catalog summary

Overview: The document outlines the range of labeling products offered by HellermannTyton, including Rite-On Markers, Wire Marker Tapes, Handi-Cards, and WIC Markers. These products are designed for marking wires and cables, emphasizing durability and ease of use.

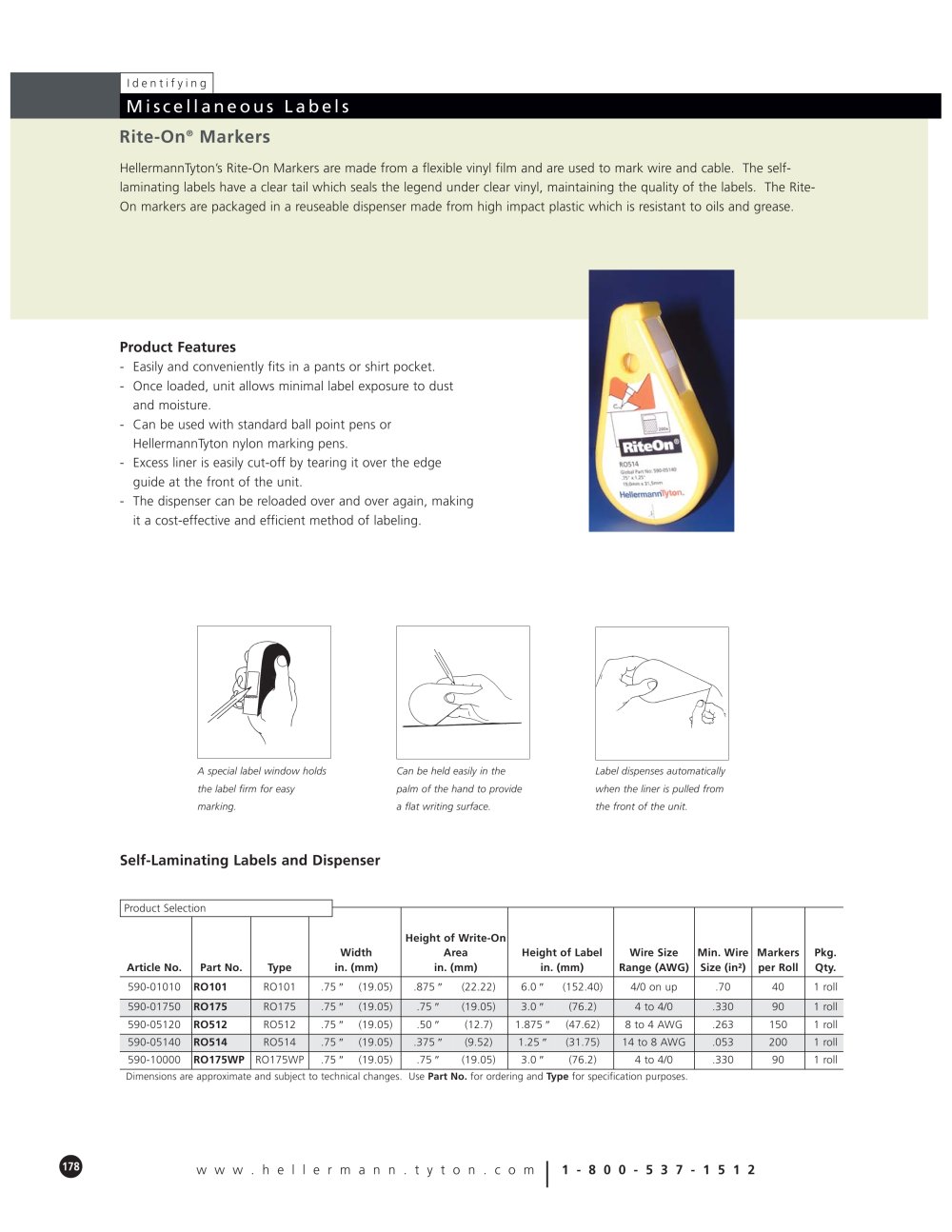

Rite-On Markers: Made from flexible vinyl film, these self-laminating markers protect the label's text. They come in a reusable dispenser resistant to oils and grease, compatible with standard pens, and are easy to reload.

Wire Marker Tapes: This economical system features sharp, smear-resistant legends. The tapes are on a carrier strip to prevent adhesive contamination, ensuring a permanent bond.

Handi-Cards: These markers are on a plastic card with strong adhesive for long-lasting bonding. Available in solid or sequence order, they are made from vinyl cloth, remaining flexible and durable under various temperatures.

WIC Markers: Designed for post-termination wire marking, these clip-on markers are legible and chemical-resistant. Available in three sizes, they come in pocket-sized dispensers.

Product Specifications: Detailed specifications include dimensions, material, color options, and packaging quantities. Part numbers are emphasized for ordering and specification purposes.

Conclusion: HellermannTyton provides a comprehensive range of labeling solutions tailored for different wire marking needs, focusing on durability, ease of use, and cost-effectiveness.

Product Overview: The document details specifications and selections for wire and cable markers, focusing on WIC markers, Clip-Tags, and Helagrip 2000 cable markers, designed for easy application and identification in various environments.

WIC Markers: Available for different wire gauges, each type is specified with a part number and package quantity. The WICTOOL applicator facilitates marker application.

Clip-Tags: Non-adhesive, snap-on markers applied using a wand, suitable for pre-terminated wires. Available in various sizes and colors, with standard legends including numbers and letters.

Helagrip 2000 Cable Markers: Made from PVC, these markers are durable and legible in tough environments, featuring a chevron shape for secure locking. Available in white, with other colors upon request.

Technical Specifications: Detailed tables list dimensions, part numbers, and specifications for each product type, including material properties and standards approvals.

Ordering Information: Part numbers and types are specified for ordering, with applicator tools available for easy marker installation.

Product Specifications: Specifications for cable marker rolls and identification marker plates are provided, with dimensions and part numbers for ordering.

Product Selection:

Helagrip 2000 Cable Marker Rolls: Black on white markers with dimensions for different part numbers.
T18 Series thru T50 Series Ties: Lists part numbers with dimensions and package quantities.

Identification Marker Plates: Made from nylon, these plates can be mounted in various orientations and marked using a HellermannTyton marking pen or hot stamped.

Catalog excerpts

A special label window holdsthe label firm for easy marking. Can be held easily in the palm of the hand to provide a flat writing surface. Label dispenses automatically when the liner is pulled from the front of the unit.

Open the catalog to page 1

Product Selection Article No.Part No.TypeWidthHeight of Write-On AreaHeight of LabelMarkersper RollPkg. Qty.in. (mm)in. (mm)in. (mm) 590-01011 101REF 101REF.75 ΢3 (19.05).875 ″ (22.22)6.0 ″ (152.4)401 roll 590-01751 175REF 175REF .75 ″ (19.05) .75 ″ (19.05) 3.0 ″ (76.2) 40 1 roll590-05121 512REF 512REF.75 ″ (19.05).50 ″ (12.7)1.875 ″ (47.62)401 roll 590-05141 514REF 514REF .75 ″ (19.05) .375 ″ (9.52) 1.25 ″ (31.75) 40 1 roll > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes. Product Selection Article No.Part No.TypeColorPkg....

Open the catalog to page 2

Product Selection Article No.Part No.TypeDescriptionPkg. Qty. 598-00256 WMTD0-9 WMTD0-9Single box of wire marker tape refill. Each box contains 76 markers of each legend 0-9 and isuse to refill the empty tape dispenser. 1 Dispenser 598-00257 WMTDM WMTDM Wire marker tape dispenser merchandiser. Each merchandiser contains 10 dispensers. Eachdispenser contains 76 markers of each legend 0-9. 1 Merchandiser598-00258 WMTM WMTMWire marker tape refill merchandiser. Each merchandiser contains 10 boxes of 76 markerseach of legend 0-9 and 10 boxes of 760 markers of one legend 0 -9. Single legend boxeshave...

Open the catalog to page 3

Product Selection Article No.Part No.TypeDescriptionPkg. Qty. 598-00260 TCWM1 TCWM145 markers each of legends 0-91 booklet 598-00261 TCWM2 TCWM2 10 markers each of A-Z, 1-15, +, -, / 1 booklet598-00262 TCWM3 TCWM310 markers each 1-451 booklet 598-00263 TCWM4 TCWM4 150 markers each 1,2,3 1 booklet598-00264 TCWM5 TCWM5150 markers each A,B, and C.1 booklet 598-00265 TCWM6 TCWM6 150 markers each T1, T2 and T3 1 booklet598-00266 TCWM7 TCWM7150 markers each L1, L2 and L31 booklet 598-00267 TCWM8 TCWM8 6 markers each 1-15, 4 markers each 16-90 and 2 markers each of A-Z, +, -, / 1 booklet598-00268 TCWM9...

Open the catalog to page 5

The convenient WIC dispenser ideal forpocket or toolbox storage. ProductData W1 W2 W3Material Label Material Polyamide 6Polyamide 6Polyamide 6 Color Yellow/ Black PrintYellow/ Black PrintYellow/ Black Print Temperature Range -40հF to +185F, intermittent 221аF (-40C to +85аC, intermittent 105C)-40аF to +185F, intermittent 221аF (-40C to +85аC, intermittent 105C)-40аF to +185F, intermittent 221аF (-40C to +85аC, intermittent 105C) Flammability Self-extinguishing UL94VO - base materialSelf-extinguishing UL94VO - basematerialSelf-extinguishing UL94VO - basematerial Approvals ICE 304, EN 60062, UL94ICE...

Open the catalog to page 7

Product Selection Article No.Part No.TypePkg. Qty. 561-00001 561-00001 WIC TOOL5 >

Open the catalog to page 8

Available standard legends include: 0-9, A to Z.One legend per package. For example, WC1-A equals 300 Clip-Tag markers in legend A.Ӕ >

Open the catalog to page 9

Product Selection Article No.Part No.TypeDescriptionMin. Outside in. (mm)Max. Outside ؘin. (mm)Pkg. Qty. 518-05013 MHG1-3CASS Helagrip Set 1-3Helagrip 2000 Cassette.03 ″ (1.3).118 ″ (2.8)1518-05025 MHG2-5CASS Helagrip Set 2-5Helagrip 2000 Cassette.078 ″ (2.0).196 ″ (5.0)1 > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes. Handy applicator tools are available for easy placement ofmarkers on the wire. The profile of the marker is designed to hug the wire and fit to various sizes of cable.

Open the catalog to page 12
