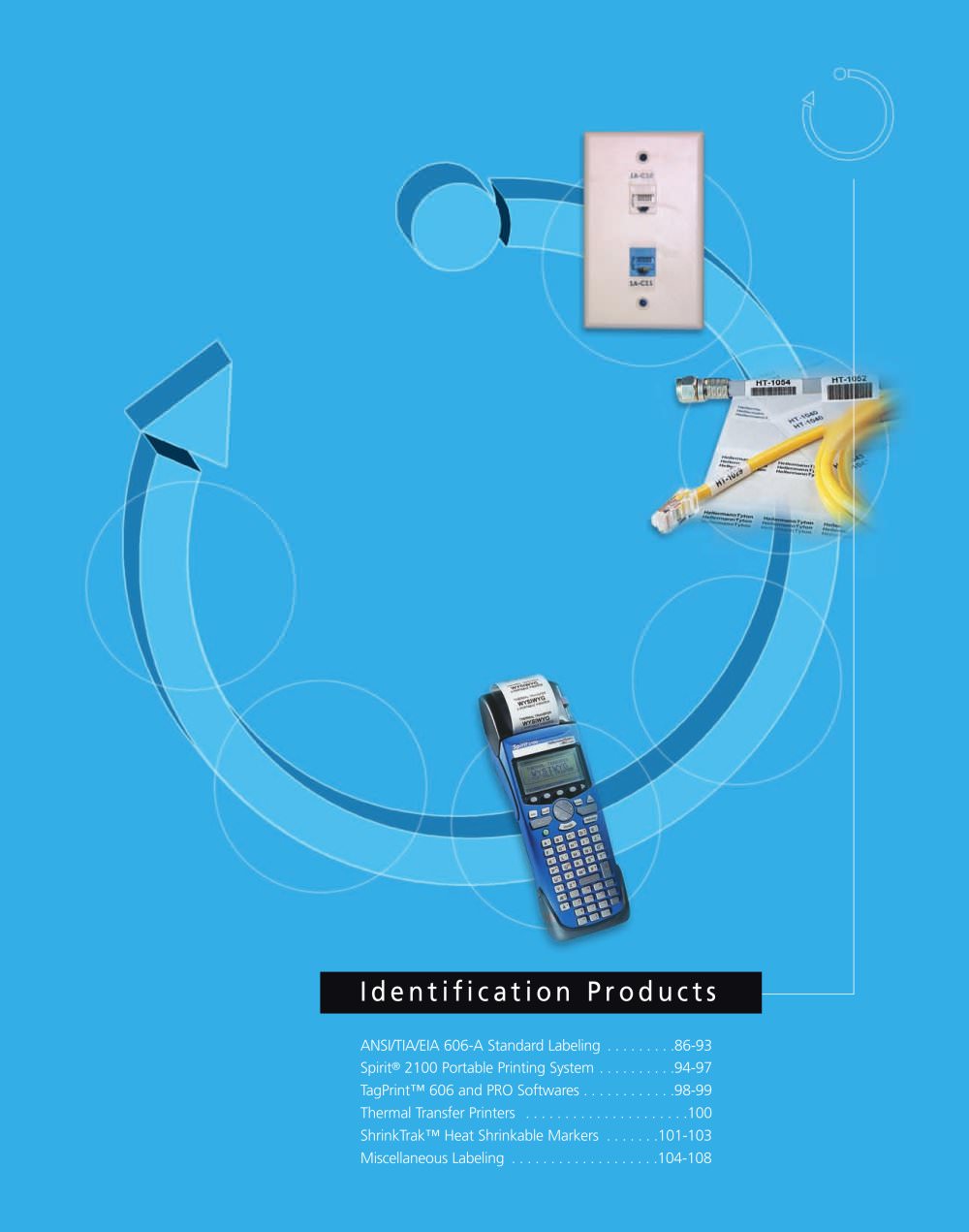

ANSI/TIA/EIA 606-A Standard Labeling . . . . . . . . .86-93Spirit > 2100 Portable Printing System . . . . . . . . . .94-97TagPrintΙ 606 and PRO Softwares . . . . . . . . . . . .98-99 Thermal Transfer Printers . . . . . . . . . . . . . . . . . . . . .100 ShrinkTrak Heat Shrinkable Markers . . . . . . .101-103 Miscellaneous Labeling . . . . . . . . . . . . . . . . . . .104-108 >

1.Select the chart listing the general application2.Identify the type of printer3.Find the specific label application > Network Cabling Solutions ANSI/TIA/EIA-606-AStandard All labels should be of a size,color and contrast to be read-ily visible by those maintaining the system. Labels should be resistant to environmental conditions likely to be encountered where they are installed, such as moisture orheat, and should be designated to have a useful life equalto or greater than that of the component labeled.Ӕ The ANSI/TIA/EIA-606-A standard was developed to speci-fy the requirements for labeling...

Network Cabling Solutions HellermannTyton offers thermal transfer labeling sys-tems, including labels and printers, which print high density text. The series of thermal transfer labels are designed specifically for thermal transfer printers and provide a clean, non-smear mark. The Spirit portablelabeling system also incorporates thermal transfer technology. > Self-Laminating Thermal Transfer Labels A series of technologically advanced labels for use onstandard ink jet printers are available fromHellermannTyton. The labels are offered in a wide range of materials and sizes. When used with pigment...

PrinterApplicationPart NumberSize (w x l)Pkg. Qty. Thermal TransferPrinting LaserPrinting Dot MatrixPrintingInk JetPrinting Spirit > Rapid Net Modular Panel, FrontTAG68T1-336 3.8 X .275Ԕ10000Rapid Net Modular Panel, RearTAG69T1-336 2" X .396"1000Faceplate - Window - Shuttered / Duplex / DecoratorTAG96T1-336 2 X .275Ԕ10000Faceplate - Port - Std. Flush / Furniture/ ModularTAGPP1T6-822.625" X .31"1000Faceplate - Port - Std. Flush / Furniture / Modular (Clear)TAGPP1T6-822C.625" X .31"1000Faceplate - Port - Std. Flush / Furniture / Modular (Clear)TAG11T4-822C.65" X .2"5000 Faceplate - Port - Std....

PrinterPart No.Application (s) Size (w x l) Pkg. Qty. Thermal Transfer Printing TAG72T1-822For 2.75" X 1.25"3000TAG73T1-822Flat2" X 1"3000 TAG75T1-822Surfaces2" X .625"2000TFOT-1Only1" X 54ft.54 ft.GWT003X2Non-adhesive Tags3" X 1.5"25 GWC003X2Non-adhesive Tags3" X 1.5"25 Thermal Transfer Printing TAGH73-3362" X 1"250 Spirit > Ӯ 2100 Portable TAGH73-3364 *For Flat2" X 1"250 Printing System TAGH27-336Surfaces1.5" X .75"500TAGH27-799Only1.5" X .75"500TAGH75-3362" X .625"500 TAGH75-3364 *2" X .625"500 Laser Printing TAG59L-788For Flat4" X 1.5"3500TAG60L-788Surfaces2.83" X 1.5"5250 TAG61L-788Only2.62"...

Printer Part NumberApplication(s)/ Material Size (w x l) Pkg. Qty.Thermal TransferPrintingLaserPrintingDot MatrixPrintingInk JetPrinting > PrinterPart NumberMaterial/ Application (s)Size (w x l) Pkg. Qty. Thermal Transfer >

PrinterPart NumberApplication(s) Size(w x l) Pkg. Qty. ANSI/TIA/EIA-606-AStandard >

Network Cabling Solutions Spirit > 2100 Portable Printing System > HellermannTytonΒs Spirit 2100 portable printing system is easy to use and features ΓWhat You See Is What You Get (WYSIWYG) label design and creation on a LCD screen that shows the outline of the label. Just type in the text (which is displayed on the screen), choose from several print sizes, and press the print button. It's that simple! The printer automatically detects the label and determines the proper size template for easy editing. The Spirit 2100 provides fast, high quality, thermal transfer printing for permanent and highlylegible...

HT2100* Spirit > ڮ 2100 Portable Printing System1 HHIGR* Standard Ribbon for Spirit Printer1 HHHST Self Laminating Ribbon for Spirit Printer1 HHDTH* DTH Ribbon for Spirit Printer1 BC10* Battery Charger 120V 60 Hz1 2100CASE* Replacement Carrying Case1 2100CABLE RS-232 Interface Cable (optional)1 RBP1* Battery Pack NiCad (replacement)1 2100PEN* Cleaning Pen (replacement)1 TS3003039* Spindle for Label Roll (replacement)1 TS3003040* Spindle Cap (replacement)1 2100CARD* Cleaning Card 2 x 6Ԕ (replacement)1 2100AC AC Power Adapter1 > *Portable Printing System Includes: Spirit 2100 printer, rechargeable...

Network Cabling Solutions Spirit > 2100 Portable Printing System Ribbon > The ribbon is supplied in a self-contained cartridge for easy loading. One ribbon perpackage. Product Selection Part NumberDescriptionPkg. Qty.Width in. (mm)Length in. (M) HHIGR Standard Ribbon 12 (50.8) 131 ( 40 ) HHHST Self-Laminating Ribbon12 (50.8)131 (40) HHIGR works on all materials Label Loading > Each roll of labels is loaded onto a reusable spindle. Simply drop the label roll intothe printer, pull the labels over the top (like loading film into a camera) and close the cover. The printer automatically feeds and...

Network Cabling Solutions > Printing- Mechanical- Direct thermal or thermal transfer printing Width: 7.9" - Selectable print speeds of 1" to 2" per second - Depth: 8.9" - TT320SM: 300 dpi (dots per inch) print resolution - Height: 7.0" - IPHC (Intelligent Print Head Control) for high quality printing in all orientations - Weight: 4 lbs. - Maximum print width: 4.09" Electrical- - Printable thickness (including liner): 0.0003" to 0.0100" Auto detectable 90-265 VAC power supply - FCC, CE, VCCI, C-TIC, CB, VL, NOM, CCC Communications- - Meets FCCClass A and VDE Class B emission standards RS-232 Serial...

Network Cabling Solutions VERSATILE - Flexible, flame retardant, heat shrinkable polyolefin tubing meets all military specifications- 3:1 shrink ratio- Standard colors - yellow, white and black - Larger packaging options result in less box changes > HIGH PERFORMANCE DESIGN - Center slit versions reduce or eliminate hand cutting - Non-slip, printable liner allows additional marker data to be printed on the reverse side for records and placement instructions- Utilize HellermannTytons Durattach ribbon system for the highest print performance on the market > A. Side slit for easy insertion and removal...
