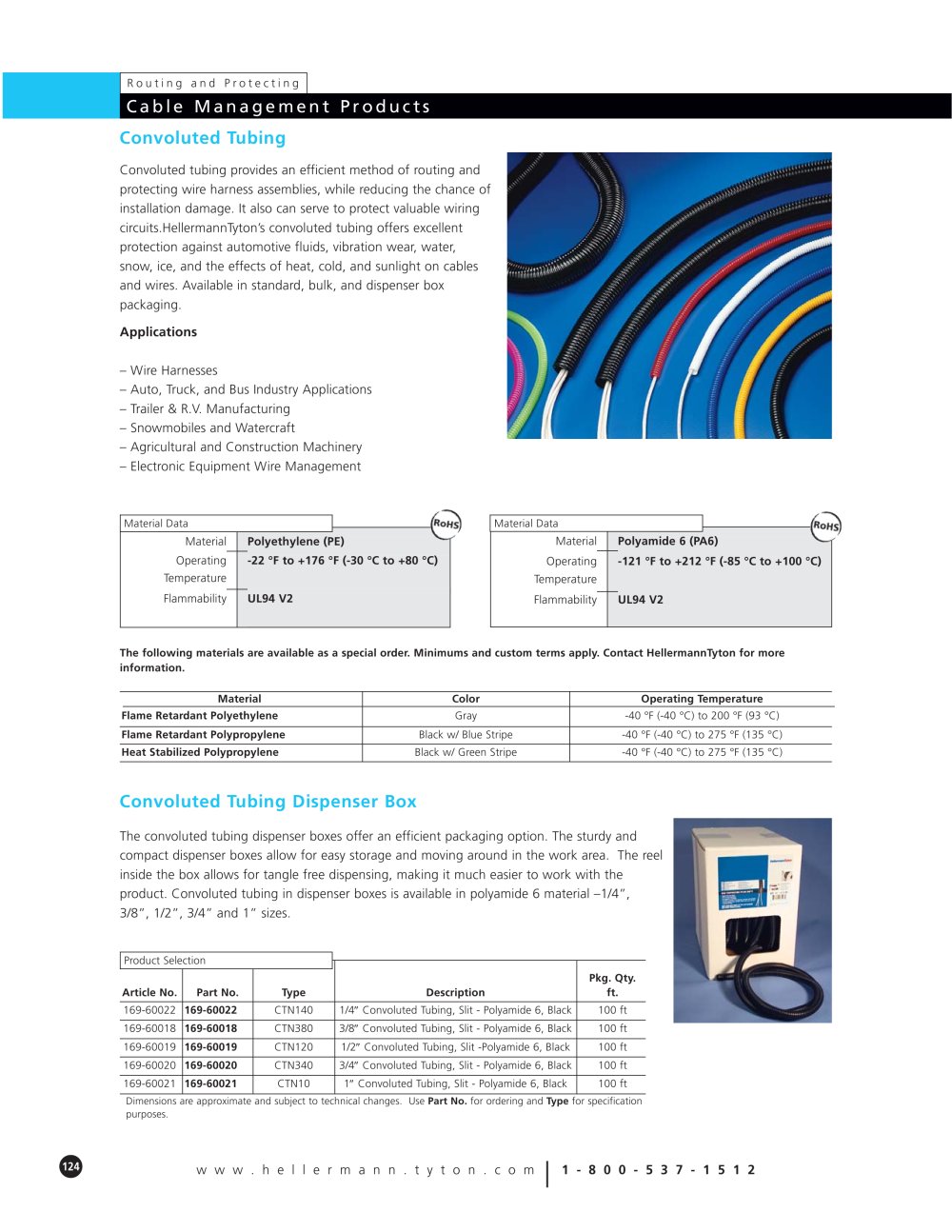

Convoluted Tubing
1 / 2 PagesView full catalog
Convoluted Tubing
Product catalog summary
Overview: The document provides detailed specifications and applications for convoluted tubing products offered by HellermannTyton. These products are designed for routing and protecting wire harness assemblies, offering protection against various environmental factors.
Specifications:
- Materials: Primarily Polyamide 6 (PA6) and Polyethylene (PE), with special order options including flame retardant polyethylene and polypropylene.
- Operating Temperature: PA6 ranges from -121°F to +212°F, while PE ranges from -22°F to +176°F.
- Flammability: Both materials are rated UL94 V2.
Product Features:
- Convoluted tubing is available in various sizes from 1/4" to 2" in diameter.
- Standard, bulk, and dispenser box packaging options are available.
- Dispenser boxes provide easy storage and tangle-free dispensing.
Applications:
- Wire harnesses in automotive, truck, and bus industries.
- Trailer and RV manufacturing.
- Snowmobiles, watercraft, agricultural, and construction machinery.
- Electronic equipment wire management.
Ordering Information:
- Use Part No. for ordering and Type for specification purposes.
- Standard tubing is slit; unslit options are available upon request.
- Custom colors and pre-cut lengths are available based on volume requirements.
Additional Notes:
- Dimensions are approximate and subject to technical changes.
- Contact HellermannTyton for special orders and custom terms.
