Cable Ties

Product catalog summary

Overview: This document provides comprehensive specifications and product selections for various cable ties manufactured by HellermannTyton. It categorizes cable ties based on tensile strength, length, bundle width, color, and packaging quantity, and includes details on installation tools and material properties.

Specifications:

Material: Primarily Polyamide 6.6 (PA66) for standard and heavy-duty ties, with variations such as high impact modified, heat stabilized (PA66HIRHS), and UV-resistant (PA66UV). Stainless Steel Types SS304 and SS316 are also used.
Operating Temperature: Ranges from -40 °F to +185 °F (-40 °C to +85 °C) for standard polyamide ties, up to +230 °F (+110 °C) for high-temperature series, and -112 °F to +1000 °F (-80 °C to +538 °C) for stainless steel ties.
Flammability: UL94 V2 for standard polyamide ties, UL94 HB for high-temperature series, and UL94 V0 for specific applications.

Product Series:

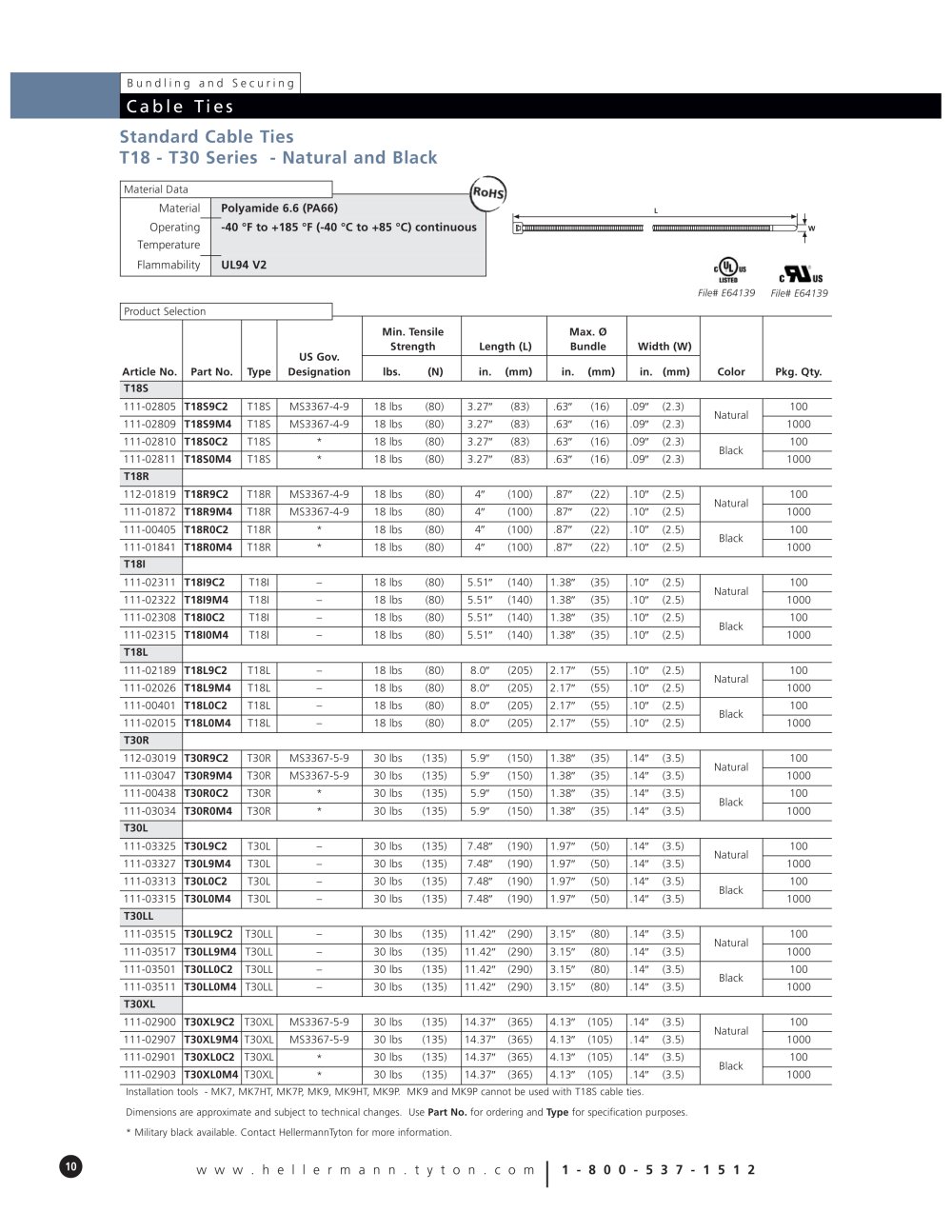

T18 to T150 Series: Includes various models with tensile strengths ranging from 18 lbs to 175 lbs, available in natural and black colors, with lengths from 3.27" to 52.17".
T250 and T255 Series: Heavy-duty ties with a tensile strength of 250 lbs, designed for higher temperature applications.

Product Types and Applications:

Halar and Tefzel Cable Ties: Suitable for low smoke, low flame, and radiation-resistant applications.
Releasable and Heavy Duty Releasable Ties: Designed for easy release and heavy-duty applications.
Speedy Tie and Clamp Ties: Reusable and designed for specific bundling needs.
Double Head and Identification Ties: Allow for dual bundling and cable identification.
Screw Mount and Fir Tree Mount Ties: Designed for secure mounting and protection against impurities.

Installation Tools: Recommended tools include MK7, MK7HT, MK7P, MK9, MK9HT, MK9P for polyamide ties, and MK9SST for stainless steel ties.

Material Data:

Polyamide: Offers UV resistance and is suitable for continuous use within specified temperature ranges.
Stainless Steel: Type SS304 is suitable for general bundling applications, while SS316 is highly resistant to corrosion, ideal for marine environments.

Key Considerations: When selecting cable ties, consider tensile strength, mounting hole diameter, panel thickness, length, maximum bundle diameter, and color. Ensure compatibility with the intended application environment, particularly regarding temperature and flammability requirements.

Ordering Information: Use the Part No. for ordering and Type for specification purposes. Contact information is provided for further inquiries.

Catalog excerpts

T250 heavy duty cable tie and lashing tie mount application Material Data >

Open the catalog to page 5

File# E64139 Product Selection Article No.Part No.TypeMin. Tensile Strength Length (L)Max. И BundleWidth (W)ColorPkg. Qty.lbs. (N) in. (mm)in. (mm)in. (mm) 111-25500 T255S0HIRX2 T255S250 lbs(1115)8.86 ″ (225)2.16 ″ (55).49 ″ (12.5)Black 25111-25400 T255R0HIRX2 T255R250 lbs(1115)20.28 ″ (520)5.71 ″ (145).49 ″ (12.5)Black 25111-25300 T255M0HIRX2 T255M250 lbs(1115)22.05 ″ (565)6.30 ″ (160).49 ″ (12.5)Black 25 > Installation tools - MK9, MK9HT, MK9P. Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.

Open the catalog to page 6

Product Selection Article No.Part No.TypeMin. TensileStrength Length (L)Max. BundleWidth (W)ColorPkg.Qty.lbs. (N) in. (mm)in. (mm)in. (mm) 111-01900 T18R2HALC2 T18R14 lbs(80)4 آ3 (100).87 ″ (22).10 ″ (2.45)Red 100111-01902 T18R2HALM4 T18R14 lbs(80)4 ″ (100).87 ″ (22).10 ″ (2.45)Red 1000 111-04895 T50R2HALC2 T50R 40 lbs (177.9) 8.0 ″ (203.2) 1.75 ″ (44.45) .176 ″ (4.5) Red 100 111-04897 T50R2HALM4 T50R 40 lbs (177.9) 8.0 ″ (203.2) 1.75 ″ (44.45) .176 ″ (4.5) Red 1000111-12056 T120R2HALK2 T120R80 lbs(355.9)15.5 ″ (394.4)4.0 ″ (101.6).31 ″ (7.8)Red 50111-12055 T120R2HALH4 T120R80 lbs(355.9)15.5...

Open the catalog to page 12

Product Selection Article No.Part No.TypeMin. Tensile Strength Length (L)Max. BundleWidth (W)ColorPkg. Qty.lbs. (N) in. (mm)in. (mm)in. (mm) 111-01923 T18R6TZC2 T18R(U)9.0 lbs(40)4 آ3 (100).87 ″ (22).10 ″ (2.5)Blue100111-01924 T18R6TZM4 T18R(U)9.0 lbs(40)4 ″ (100).87 ″ (22).10 ″ (2.5)Blue1000 111-05026 T50R6TZC2 T50R(U) 35.5 lbs (158) 8 ″ (200) 1.75 ″ (50) .18 ″ (4.6) Blue 100 111-04933 T50R6TZM4 T50R(U) 35.5 lbs (158) 8 ″ (200) 1.75 ″ (50) .18 ″ (4.6) Blue 1000111-12026 T120R6TZK2 T120R70 lbs(311)15 ″ (380)4.0 ″ (100).30 ″ (7.6)Blue50 > Tefzel is a registered trademark of E.I. DuPont Corporation....

Open the catalog to page 13

Product Selection Article No.Part No.TypeMin. Tensile Strength Length (L)Max. BundleWidth (W)ColorPkg. Qty.lbs. (N)in. (mm)in. (mm)in. (mm) 115-40200 REZ200.NB3P REZ20030 lbs(135)7.88 آ3 (200)1.97 ″ (50).19 ″ (4.7)Black 100115-40300 REZ300.NB3P REZ30030 lbs(135)12.00 ″ (305)3.15 ″ (80).19 ″ (4.7)Black 100 > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.

Open the catalog to page 15

Product Selection Article No.Part No.TypeMin. TensileStrength Length (L)Max. BundleWidth (W)ColorPkg. Qty.lbs. (N) in. (mm)in. (mm)in. (mm) 115-00036 RT150REP0X2 RT150REP175 lbs(780)15.35 آ3 (390)4 ″ (105).346 ″ (8.8)Black 25115-00037 RT150MEP0X2 RT150MEP175 lbs(780)21.06 ″ (535)5.90 ″ (150).346 ″ (8.8)Black 25115-00038 RT150LEP0X2 RT150LEP175 lbs(780)32.28 ″ (820)9.65 ″ (245).346 ″ (8.8)Black 25 > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes. Material Data >

Open the catalog to page 16

Product Selection Article No.Part No.TypeMin. TensileStrength Length (L)Max. BundleWidth (W)ColorPkg. Qty.lbs. (N) in. (mm)in. (mm)in. (mm) 115-01200 RT255S0HIRX2 RT255S250 lbs(1112)8.86 آ3 (225)2.16 ″ (55).49 ″ (12.5)Black 25115-01300 RT255R0HIRX2 RT255R250 lbs(1112)20.28 ″ (515)5.71 ″ (145).49 ″ (12.5)Black 25115-01400 RT255M0HIRX2 RT255M250 lbs(1112)22.05 ″ (560)6.30 ″ (160).49 ″ (12.5)Black 25 > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes. Product Selection Article No.Part No.TypeMin. TensileStrength Length (L)Max....

Open the catalog to page 17

SpeedyTie - Quick and easy. Speedy Tie is particularly suited fortemporary but safe bundling or fixing. Distributor Pack - point of purchasedisplay for the SpeedyTie. Product Selection Article No.Part No.TypeDescriptionMin. TensileStrength Length (L)Max. BundleWidth (W)Pkg.Qty.CartonQty.lbs. (N) in. (mm)in. (mm)in. (mm) 115-00001 RTT750HR.NX900 RTT750HRDistributor Pack - orderin carton qty. only200 lbs(888)29.52 آ3 (750)8.27 ″ (210).51 ″ (13)560115-00000 RTT750HR.NX1P RTT750HROEM Pack - order incarton qty. only200 lbs(888)29.52 ″ (750)8.27 ″ (210).51 ″ (13)25300 > Dimensions are approximate and...

Open the catalog to page 18

Product Selection Article No.Part No.TypeMin. TensileStrength MountingHole PanelThicknessLength (L)Max. ؘBundleWidth (W)ColorPkg.Qty.lbs. (N)in. (mm)in. (mm)in. (mm)in. (mm)in. (mm) 157-01100 T50SDP6.HB6P T50SDP645 lbs(200).25 ″ - .28 ″ ″ - .28 ″ (6.3-7.0).03 (0.8 - 7.0)6.69 ″ (170)1.22 ″ (31).20 ″ (5.1)Black 500Installation tools - MK7, MK7HT, MK7P, MK9, MK9HT, MK9P. Dimensions are approximate and subject to technical changes. Use Part No. forordering and Type for specification purposes. > Product Selection Article No.Part No.TypeMin. TensileStrength MountingHole PanelThicknessLength (L)Max....

Open the catalog to page 26

Product Selection Article No.Part No.TypeMin. TensileStrength MountingHole PanelThicknessLength (L)Max. ؘBundleWidth (W)ColorPkg.Qty.lbs. (N)in. (mm)in. (mm)in. (mm)in. (mm)in. (mm) 150-35930 150-35930 T50RSP50 lbs(222).24 ″ - .26 ″ ″ - .05 ″ (6.0-6.5).03 (0.75 - 1.3)7.48 ″ (190)1.77 ″ (45).18 ″ (4.6)Black 1000Installation tools - MK7, MK7HT, MK7P, MK9, MK9HT, MK9P. Dimensions are approximate and subject to technical changes. Use Part No. forordering and Type for specification purposes. >

Open the catalog to page 29

Product Selection Article No.Part No.TypeStud Min. TensileStrength Length (L)Max. ؘBundleWidth (W)ColorPkg.Qty.in. (mm)lbs. (N)in. (mm)in. (mm)in. (mm) 157-01300 T120RSM0HIRK2 T120RSM.25 ″ (6.25)120 lbs(535)15.94 ″ (405)3.98 ″ (101).30 ″ (7.6)Black 50Installation tools - MK9, MK9HT, MK9P. Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type forspecification purposes. > Product Selection Article No.Part No.TypeStud Min. TensileStrength Length (L)Max. ؘBundleWidth (W)ColorPkg.Qty.in. (mm)lbs. (N)in. (mm)in. (mm)in. (mm) 155-30602 155-30602 T50SSBS50TE.20...

Open the catalog to page 31
