Helical Products Co., Inc. introduces machined springs using HELI-CAL Flexure technology, offering advanced performance compared to traditional springs. These springs are designed to integrate multiple functions into a single unit, enhancing system performance and reducing costs.
- Unique flexible helix configuration providing performance in compression, extension, torsion, lateral bending, and translation.
- Single or multiple functions integrated into one piece, improving efficiency and cost-effectiveness.
- Precise performance and broad range of spring rates.
- Enhanced safety, repeatability, and predictability.
- Integration with entire assembly and cost reduction.
- Accommodates various spring modes, including compression-extension and torsion.
- Multiple start flexures resolve moments, providing pure moments in torsional springs.
- Machined springs allow for various end configurations such as threads, flanges, slots, and pinholes.
- Eliminates the need for traditional torsional spring tangs, offering more design flexibility.
Helical offers free engineering consultations and technical support to assist with design and application needs. Customers are encouraged to leverage their expertise for optimal solutions.
Helical's machined springs represent a significant advancement in spring technology, providing superior performance and integration capabilities for modern applications. For more information, visit their website or contact them directly.
Catalog excerpts

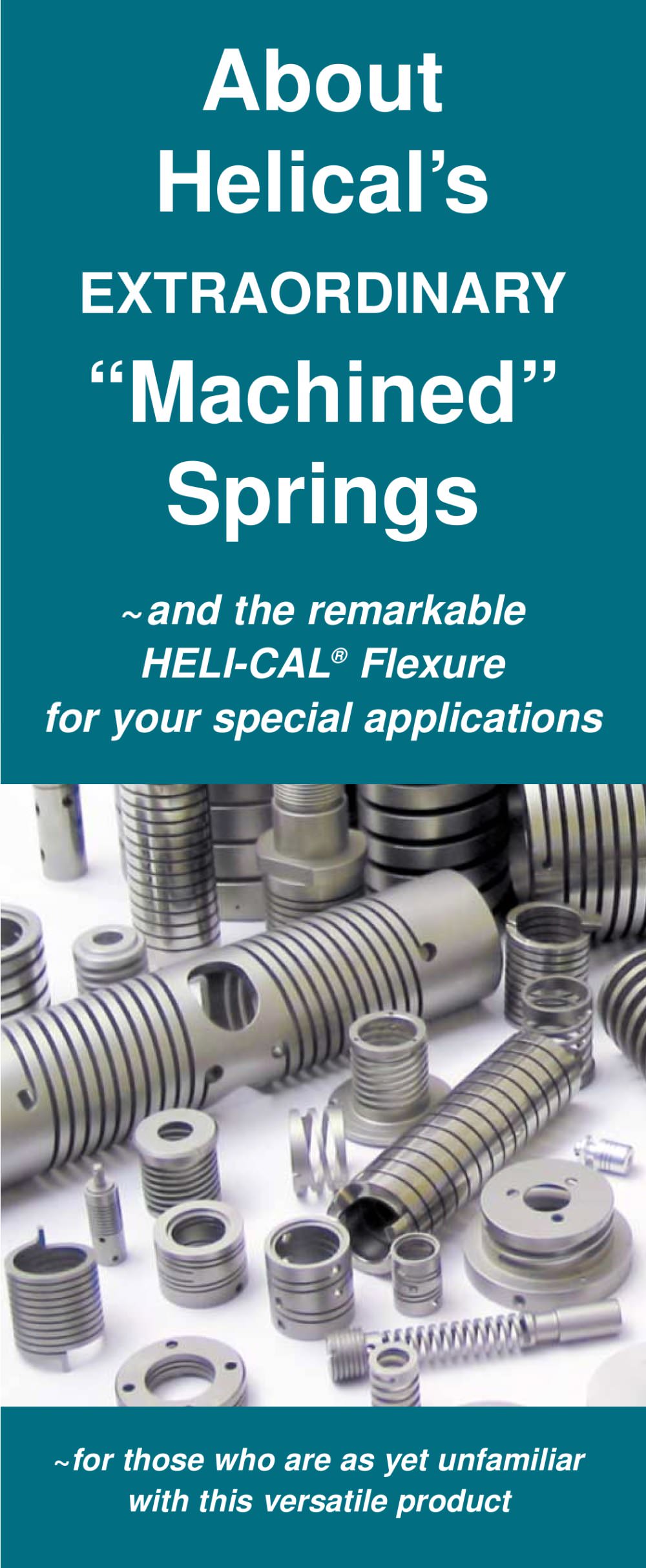

~ for those who are as yet unfamiliarwith this versatile product >
Open the catalog to page 1
What is a machined spring?? What are some of the advantagesof machined springs?? How are machined springsdifferent?? What are the advantages of multiplestart springs?? Explain Փsingle start and ԓdoublestart flexures.? What are the basic elastic modesapplicable to machined springs?? Can machined springs be made sothat the coils donԒt touch?? Can I get a listing of catalogmachined springs? >
Open the catalog to page 2
uses HELI-CALFlexure technologyto produce high performance, machined springs in a way that takes much of the guesswork out of the design and manufacturing processes.It may seem to some that machinedspringsӔ is a preposterous idea, but believe us, machined springsӔ offer performance that often appears to be light years ahead of ordinary springs. Interested? Call Toll Free 877-353-9873 Or log onto www.heli-cal.com >
Open the catalog to page 3
The HELI-CALFlexure is a flexiblehelix (curved beam) machined into a unique configuration that incorporates special performance characteristics.Used as a spring, the multi-functionalflexure provides exacting performance in compression, extension, torsion, lateral bending, and lateral translation modes. >
Open the catalog to page 4
Wire-wound spring.Three separate pieceswelded together.Helical machined spring.Single piece. Integratedparts-functions. The key is integrating severalparts into one piece. >
Open the catalog to page 5
Tapered endFlangesThreaded ends >
Open the catalog to page 6
HexTangs with pinholesSlots >
Open the catalog to page 7
This spring of 7075-T6 aluminum withfive starts provides compression, torsion, lateral bending and lateral translation rates, all within one individual spring. >
Open the catalog to page 8
A single start spring is a singlecontinuous coil element whichstarts at one end and terminatesat the other end. This configurationis common to most springs. Adouble startӔ spring has twointertwined continuous coil elements.In effect, this puts two independenthelixes in the same cylindrical plane.Multiple start flexures, such as triplestart etc., are similar extensionsof the concept. >
Open the catalog to page 9
The operational limitations of loops andhooks are not present with machined springs. The tangs common to traditionalӔ torsional springs are not needed.The incorporation of a cross slot,double tangs, spline or bolt circle, allows for a pure moment attachment so that there are no unresolved forces or moments. >
Open the catalog to page 10
Light years ahead of traditionalsprings: Introducing: > End attachments More precise performance Abroad range of spring rates andfunctionality Safety operation Repeatabilitypredictability Integration with entire assembly Cost reduction Accommodates spring modes: compression-extension, torsion,lateral bending, lateral translation Torsional springs produce puremoments. Multiple starts resolve(cancel) moments Easier assemblyFree engineeringconsultation > The key is integrating several parts into one piece. PRODUCTS COMPANY, INC. POBox 1069 ? 901 W. McCoy Lane ? Santa Maria, CA93456Toll Free 888-211-9589...
Open the catalog to page 11
PRODUCTS COMPANY, INC. P.O. Box 1069, Santa Maria, CA93456-1069Toll free 877-353-9873 www.heli-cal.com >
