Introduction

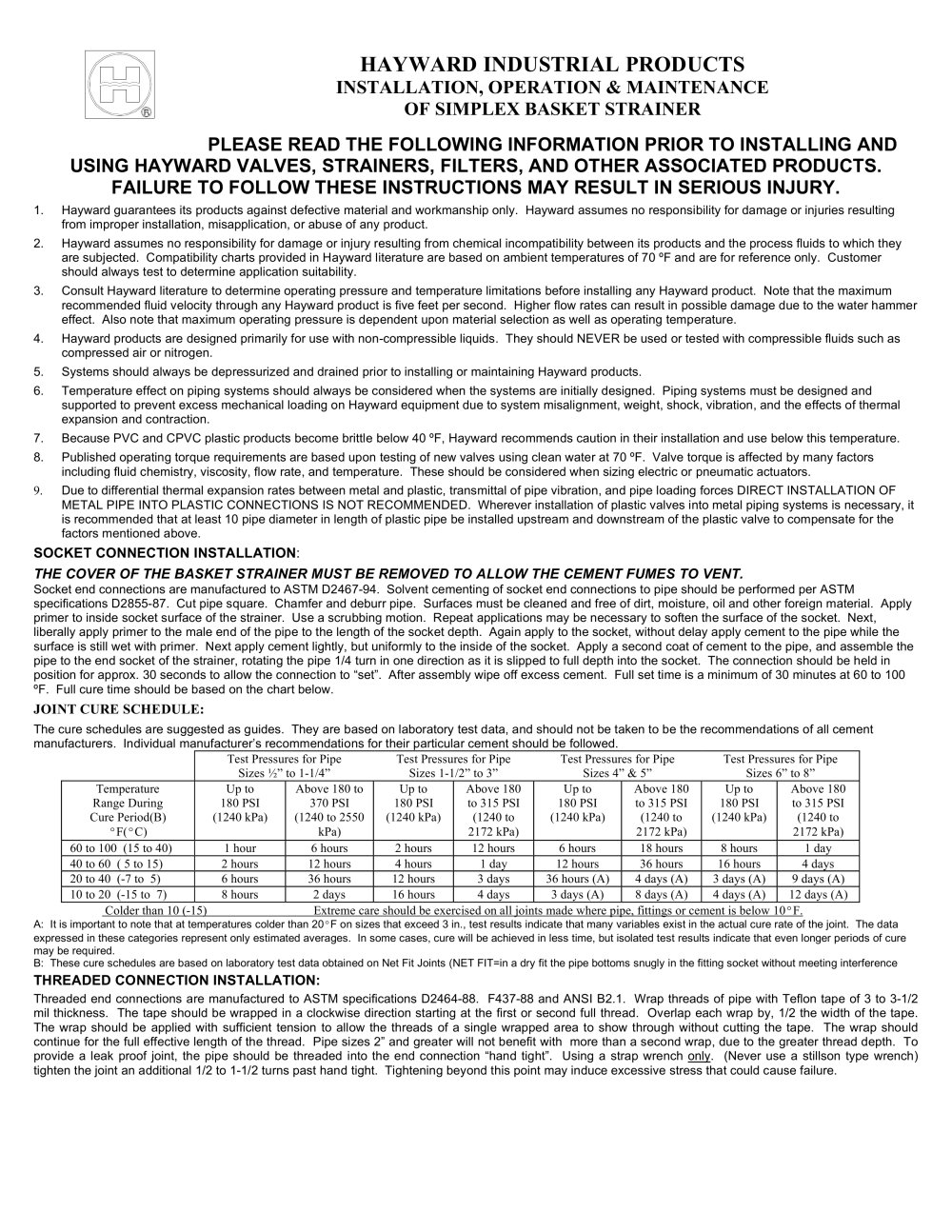

This document provides installation, operation, and maintenance instructions for the Hayward Simplex Basket Strainer. It emphasizes the importance of following these guidelines to prevent injury and ensure proper product performance.

Product Warranty and Responsibility
Hayward guarantees its products against defects in material and workmanship but does not assume responsibility for damages or injuries due to improper installation, misuse, or chemical incompatibility. Users should verify compatibility and operating conditions.

Installation Guidelines

• Ensure systems are depressurized and drained before installation or maintenance.
• Consider temperature effects on piping systems to prevent mechanical loading on equipment.
• Use caution with PVC and CPVC products below 40ºF as they become brittle.
• Avoid direct installation of metal pipes into plastic connections; use at least 10 pipe diameters of plastic pipe upstream and downstream.

Socket Connection Installation
Follow ASTM specifications for solvent cementing. Ensure surfaces are clean and apply primer and cement as instructed. Allow appropriate set and cure times based on temperature and pipe size.

Threaded Connection Installation
Use Teflon tape on threads, wrapping in a clockwise direction. Tighten joints using a strap wrench to avoid excessive stress.

Flanged Connection Installation
Tighten flange bolts to compress the gasket without distorting flanges. Use alternating sequence and well-lubricated metal bolts and nuts.

Operation and Maintenance

• Depressurize the strainer before cleaning.
• Install pressure gauges to monitor pressure loss and determine when cleaning is needed.
• Clean baskets promptly to prevent hardening of contents.
• Ensure the cover and O-ring are clean and lubricated before reassembly.

Conclusion
Following these detailed instructions will ensure the safe and efficient operation of the Hayward Simplex Basket Strainer.
