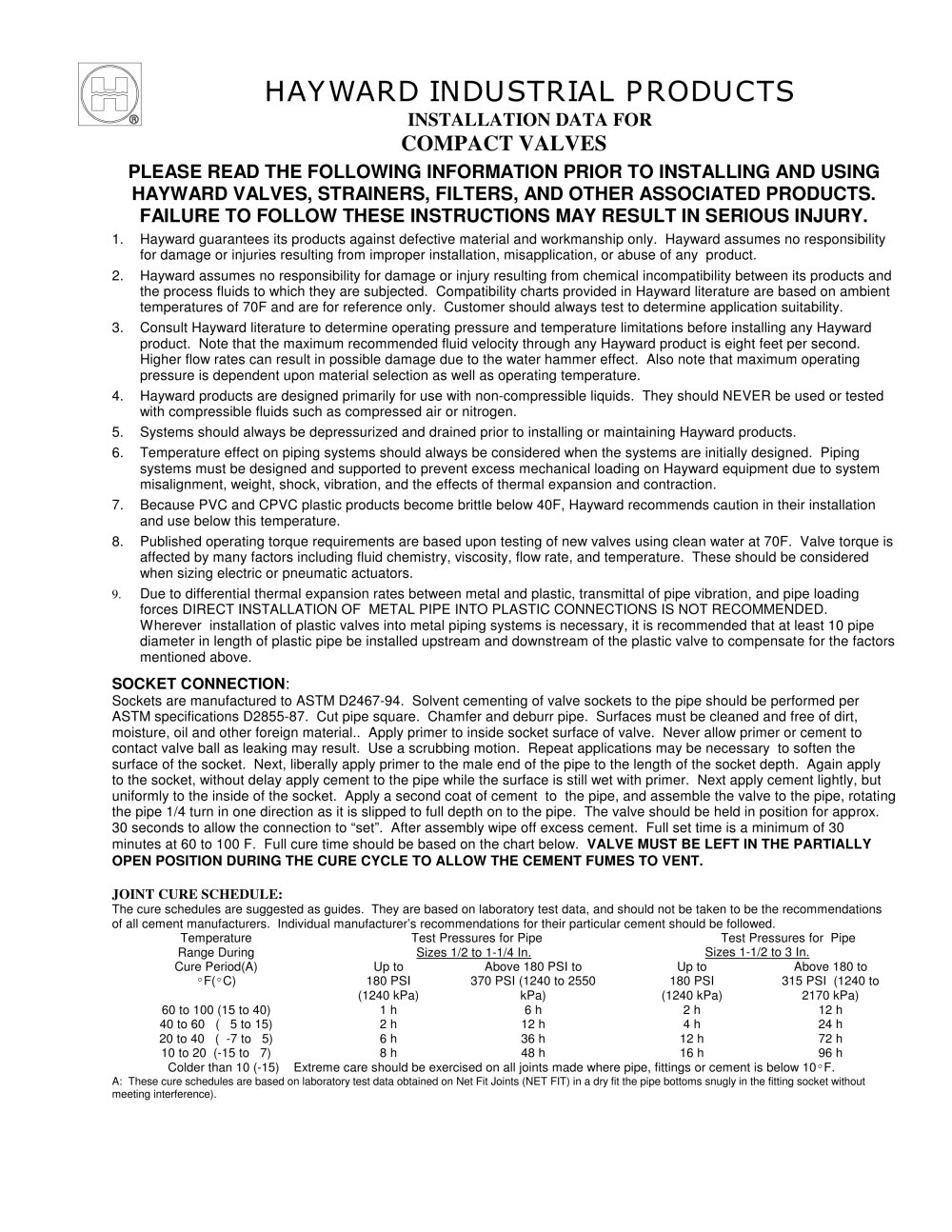

The cure schedules are suggested as guides. They are based on laboratory test data, and should not be taken to be the recommendations of all cement manufacturers. Individual manufacturers recommendations for their particular cement should be followed. Temperature Test Pressures for Pipe Test Pressures for Pipe Range During Sizes 1/2 to 1-1/4 In. Sizes 1-1/2 to 3 In. Cure Period(A) Up to Above 180 PSI to Up to Above 180 to Һ F( C) 180 PSI (1240 kPa) 370 PSI (1240 to 2550 kPa) 180 PSI (1240 kPa) 315 PSI (1240 to 2170 kPa) 60 to 100 (15 to 40) 1 h 6 h 2 h 12 h 40 to 60 ( 5 to 15) 2 h 12 h 4 h 24 h 20 to 40 ( -7 to 5) 6 h 36 h 12 h 72 h 10 to 20 (-15 to 7) 8 h 48 h 16 h 96 h Colder than 10 (-15) Extreme care should be exercised on all joints made where pipe, fittings or cement is below 10 ں F. > A: These cure schedules are based on laboratory test data obtained on Net Fit Joints (NET FIT) in a dry fit the pipe bottoms snugly in the fitting socket without meeting interference). size="-1">

Open the catalog to page 1

THREADED CONNECTION: Threaded valve ends are manufactured to ASTM specifications D2464-88. F437-88 and ANSI B2.1. Wrap threads of pipe with Teflon tape of 3 to 3-1/2 mil thickness. The tape should be wrapped in a clockwise direction starting at the first or second full thread. Overlap each wrap by, 1/2 the width of the tape. The wrap should be applied with sufficient tension to allow the threads of a single wrapped area to show through without cutting the tape. The wrap should continue for the full effective length of the thread. Pipe size 2 will not benefit with more than a second wrap,...
