Pneumatic Actuator Models PAD/PAS & PKD/PKS
3Pages

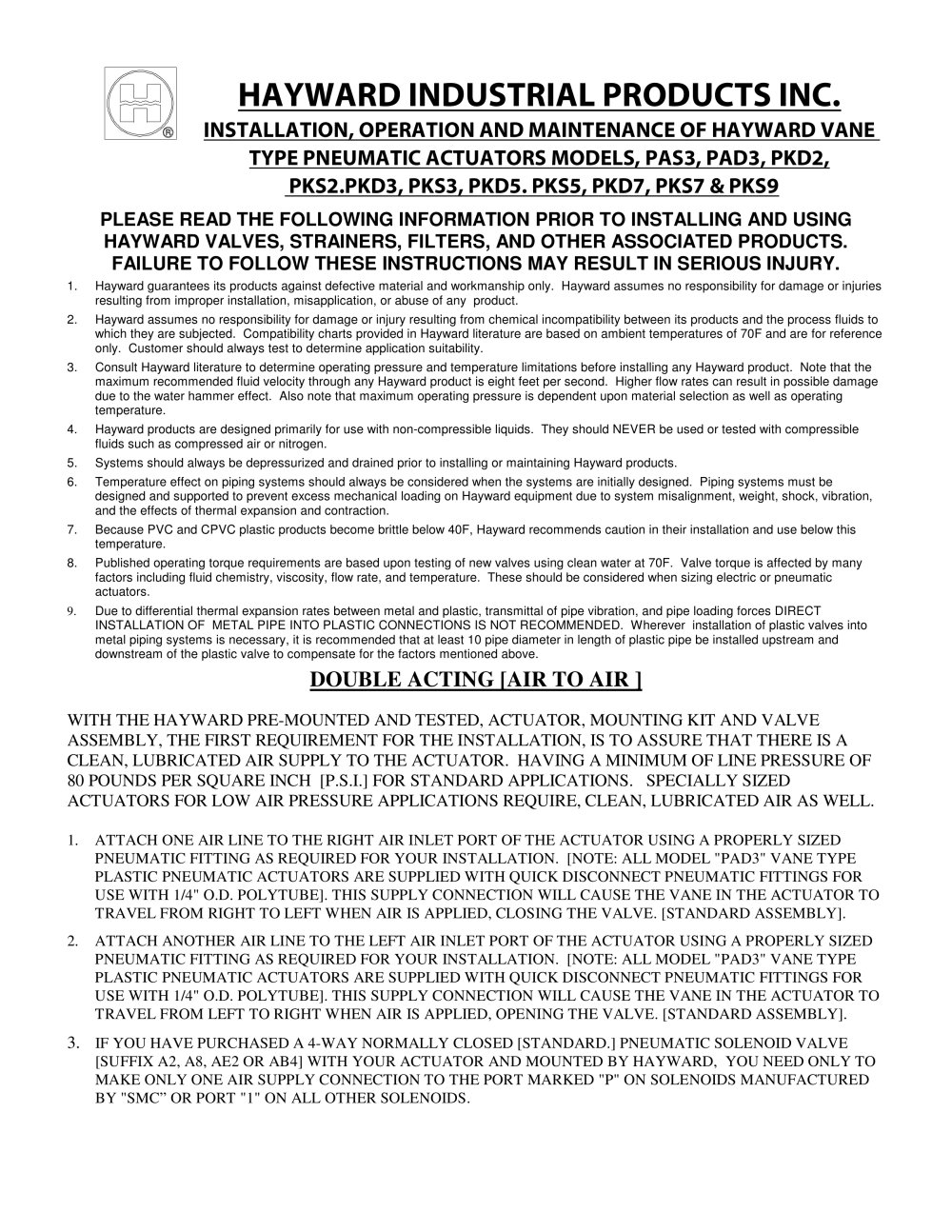

INSTALLATION, OPERATION AND MAINTENANCE OF HAYWARD VANE TYPE PNEUMATIC ACTUATORS MODELS, PAS3, PAD3, PKD2, PKS2.PKD3, PKS3, PKD5. PKS5, PKD7, PKS7 & PKS9 > PLEASE READ THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING HAYWARD VALVES, STRAINERS, FILTERS, AND OTHER ASSOCIATED PRODUCTS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY. 1. Hayward guarantees its products against defective material and workmanship only. Hayward assumes no responsibility for damage or injuries resulting from improper installation, misapplication, or abuse of any product. 2. Hayward assumes no responsibility for damage or injury resulting from chemical incompatibility between its products and the process fluids to which they are subjected. Compatibility charts provided in Hayward literature are based on ambient temperatures of 70F and are for reference only. Customer should always test to determine application suitability. 3. Consult Hayward literature to determine operating pressure and temperature limitations before installing any Hayward product. Note that the maximum recommended fluid velocity through any Hayward product is eight feet per second. Higher flow rates can result in possible damage due to the water hammer effect. Also note that maximum operating pressure is dependent upon material selection as well as operating temperature. 4. Hayward products are designed primarily for use with non-compressible liquids. They should NEVER be used or tested with compressible fluids such as compressed air or nitrogen. 5. Systems should always be depressurized and drained prior to installing or maintaining Hayward products. 6. Temperature effect on piping systems should always be considered when the systems are initially designed. Piping systems must be designed and supported to prevent excess mechanical loading on Hayward equipment due to system misalignment, weight, shock, vibration, and the effects of thermal expansion and contraction. 7. Because PVC and CPVC plastic products become brittle below 40F, Hayward recommends caution in their installation and use below this temperature. 8. Published operating torque requirements are based upon testing of new valves using clean water at 70F. Valve torque is affected by many factors including fluid chemistry, viscosity, flow rate, and temperature. These should be considered when sizing electric or pneumatic actuators. 9. Due to differential thermal expansion rates between metal and plastic, transmittal of pipe vibration, and pipe loading forces DIRECT INSTALLATION OF METAL PIPE INTO PLASTIC CONNECTIONS IS NOT RECOMMENDED. Wherever installation of plastic valves into metal piping systems is necessary, it is recommended that at least 10 pipe diameter in length of plastic pipe be installed upstream and downstream of the plastic valve to compensate for the factors mentioned above. DOUBLE ACTING [AIR TO AIR ] > WITH THE HAYWARD PRE-MOUNTED AND TESTED, ACTUATOR, MOUNTING KIT AND VALVE ASSEMBLY, THE FIRST REQUIREMENT FOR THE INSTALLATION, IS TO ASSURE THAT THERE IS A CLEAN, LUBRICATED AIR SUPPLY TO THE ACTUATOR. HAVING A MINIMUM OF LINE PRESSURE OF 80 POUNDS PER SQUARE INCH [P.S.I.] FOR STANDARD APPLICATIONS. SPECIALLY SIZED ACTUATORS FOR LOW AIR PRESSURE APPLICATIONS REQUIRE, CLEAN, LUBRICATED AIR AS WELL. 1. ATTACH ONE AIR LINE TO THE RIGHT AIR INLET PORT OF THE ACTUATOR USING A PROPERLY SIZED PNEUMATIC FITTING AS REQUIRED FOR YOUR INSTALLATION. [NOTE: ALL MODEL "PAD3" VANE TYPE PLASTIC PNEUMATIC ACTUATORS ARE SUPPLIED WITH QUICK DISCONNECT PNEUMATIC FITTINGS FOR USE WITH 1/4" O.D. POLYTUBE]. THIS SUPPLY CONNECTION WILL CAUSE THE VANE IN THE ACTUATOR TO TRAVEL FROM RIGHT TO LEFT WHEN AIR IS APPLIED, CLOSING THE VALVE. [STANDARD ASSEMBLY]. 2. ATTACH ANOTHER AIR LINE TO THE LEFT AIR INLET PORT OF THE ACTUATOR USING A PROPERLY SIZED PNEUMATIC FITTING AS REQUIRED FOR YOUR INSTALLATION. [NOTE: ALL MODEL "PAD3" VANE TYPE PLASTIC PNEUMATIC ACTUATORS ARE SUPPLIED WITH QUICK DISCONNECT PNEUMATIC FITTINGS FOR USE WITH 1/4" O.D. POLYTUBE]. THIS SUPPLY CONNECTION WILL CAUSE THE VANE IN THE ACTUATOR TO TRAVEL FROM LEFT TO RIGHT WHEN AIR IS APPLIED, OPENING THE VALVE. [STANDARD ASSEMBLY]. 3. IF YOU HAVE PURCHASED A 4-WAY NORMALLY CLOSED [STANDARD.] PNEUMATIC SOLENOID VALVE [SUFFIX A2, A8, AE2 OR AB4] WITH YOUR ACTUATOR AND MOUNTED BY HAYWARD, YOU NEED ONLY TO MAKE ONLY ONE AIR SUPPLY CONNECTION TO THE PORT MARKED "P" ON SOLENOIDS MANUFACTURED BY "SMC OR PORT "1" ON ALL OTHER SOLENOIDS. size="-3">

THE ELECTRICAL CONNECTION TO SOLENOID VALVES HAVING A "PLUG-ON TYPE ELECTRICAL CONNECTOR, REFERRED TO AS A "DIN" CONNECTOR, IS MADE USING 18-3 OR 16-3 THREE WIRE "SJ" OR "SJO" TYPE RUBBER CORD. THIS WIRE HAS TWO (2) WIRES FOR POWER, ONE (1) WHITE AND ONE (1) BLACK. IT ALSO HAS A THIRD WIRE, WHICH IS GREEN. THIS IS THE GROUND WIRE. CONNECT THE BLACK WIRE TO EITHER ONE OF THE TWO (2) PARALLEL TERMINAL CONNECTORS, AND THE WHITE WIRE TO THE REMAINING PARALLEL TERMINAL CONNECTOR. CONNECT THE GREEN WIRE TO THE TERMINAL, WHICH IS PERPENDICULAR TO THE TWO (2) POWER TERMINALS. FOR SOLENOID VALVES...

THE ELECTRICAL CONNECTION TO SOLENOID VALVES HAVING A "PLUG-ON TYPE ELECTRICAL CONNECTOR, REFERRED TO AS A "DIN" CONNECTOR, IS MADE USING 18-3 OR 16-3 THREE WIRE "SJ" OR "SJO" TYPE RUBBER CORD. THIS WIRE HAS TWO (2) WIRES FOR POWER, ONE (1) WHITE AND ONE (1) BLACK. IT ALSO HAS A THIRD WIRE, WHICH IS GREEN. THIS IS THE GROUND WIRE. CONNECT THE BLACK WIRE TO EITHER ONE OF THE TWO (2) PARALLEL TERMINAL CONNECTORS, AND THE WHITE WIRE TO THE REMAINING PARALLEL TERMINAL CONNECTOR. CONNECT THE GREEN WIRE TO THE TERMINAL, WHICH IS PERPENDICULAR TO THE TWO (2) POWER TERMINALS. NORMALLY CLOSED...
