Installation Instructions Overview:
This document provides critical installation instructions for Hayward valves, strainers, filters, and associated products. It emphasizes the importance of following these guidelines to prevent serious injury and ensure proper product functionality.
Product Guarantee and Responsibility:
Hayward guarantees its products against defects in material and workmanship. However, it does not assume responsibility for damages or injuries resulting from improper installation, misuse, or chemical incompatibility. Users are advised to test for application suitability.
Operating Conditions:
Users must consult Hayward literature to understand the operating pressure and temperature limitations. The maximum recommended fluid velocity is eight feet per second to avoid damage from the water hammer effect. The maximum operating pressure depends on material selection and temperature.
Usage Restrictions:
Hayward products are designed for non-compressible liquids and should not be used with compressible fluids like compressed air or nitrogen. Systems must be depressurized and drained before installation or maintenance.
Design Considerations:
Piping systems should account for temperature effects and be designed to prevent mechanical loading on Hayward equipment. PVC and CPVC products become brittle below 40°F, requiring caution during installation and use.
Torque and Installation Recommendations:
Valve torque requirements are based on tests with clean water at 70°F. Factors such as fluid chemistry and temperature should be considered when sizing actuators. Direct installation of metal pipes into plastic connections is not recommended due to differential thermal expansion rates and other factors.
Foot Valve Screen Assembly Instructions:

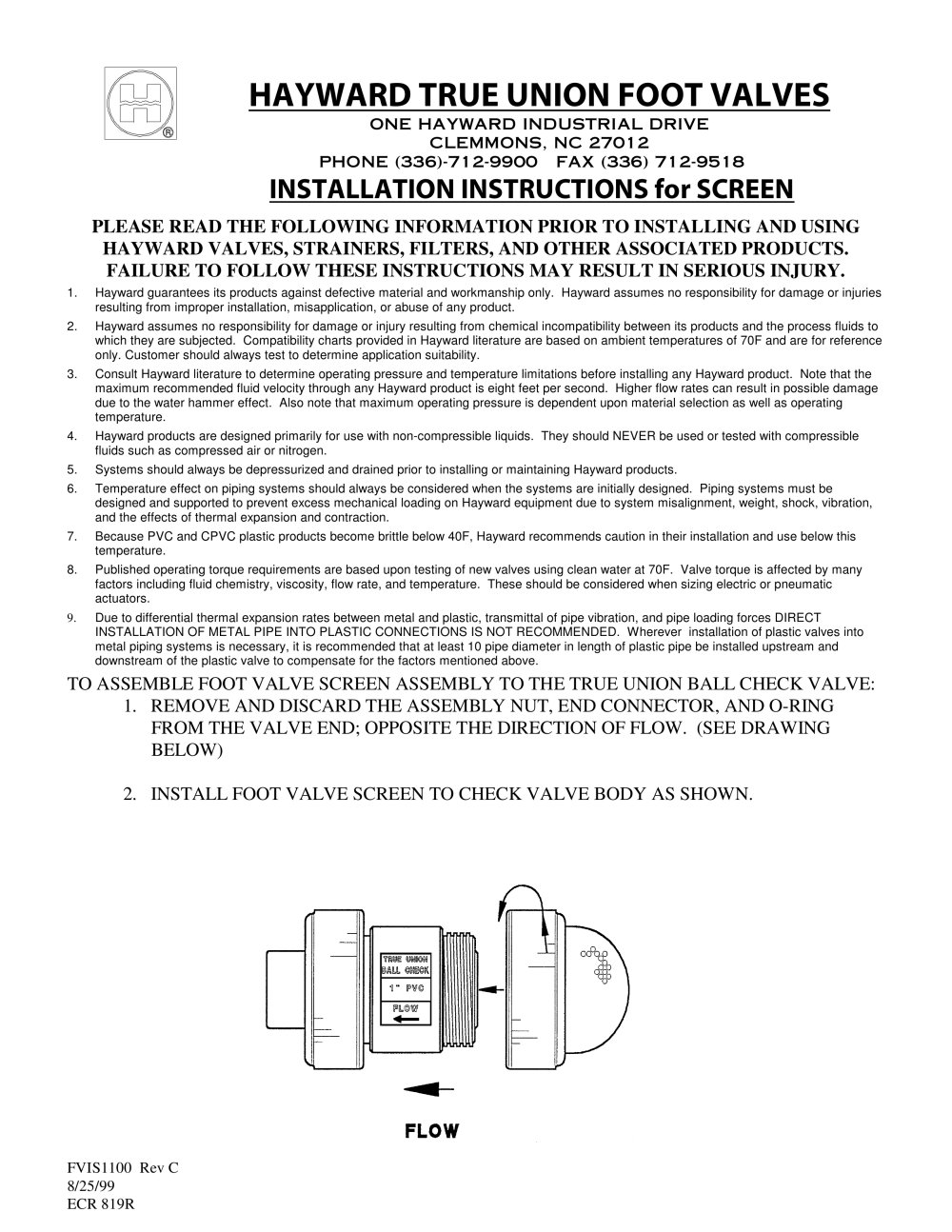

To assemble the foot valve screen to the true union ball check valve, remove and discard the assembly nut, end connector, and O-ring from the valve end opposite the flow direction. Install the foot valve screen to the check valve body as shown in the accompanying drawing.
