Installation Instructions
1. Disconnect the power supply before beginning installation.
2. Remove the actuator cover to access wiring diagrams necessary for installation. Additional screws, if required, are provided in a polybag inside the actuator.
3. Wiring documentation is located inside the actuator, either as a label on the cover or a printed sheet.
4. For actuators with multiple options, additional documentation may be included in a polybag within the shipping carton.

Compliance with Local Codes
Ensure electrical connections comply with local building and electrical codes. Connect wires according to the installation schematic to the terminal strip or wire leads with appropriate connectors.

Warranty Information
All Hayward electric actuators come with a two-year warranty covering material defects and workmanship.

Actuator Coupling
Use only the supplied coupling for the actuator and valve interface.

Torque Specifications
Ball Valves:
- 1/4" thread for 1/4" to 2" valves: 25 to 30 inch pounds
- 3/8" thread for 2 1/2" to 6" valves: 70 to 90 inch pounds
Butterfly Valves:
- 3/8" thread for 1 1/2" to 12" valves: 100 to 140 inch pounds

Note: Follow these torque specifications when attaching Hayward plastic mounting brackets to valves.
See more

Catalog excerpts

Electric Actuator Model EAU & Electric Actuator Model EVR-1

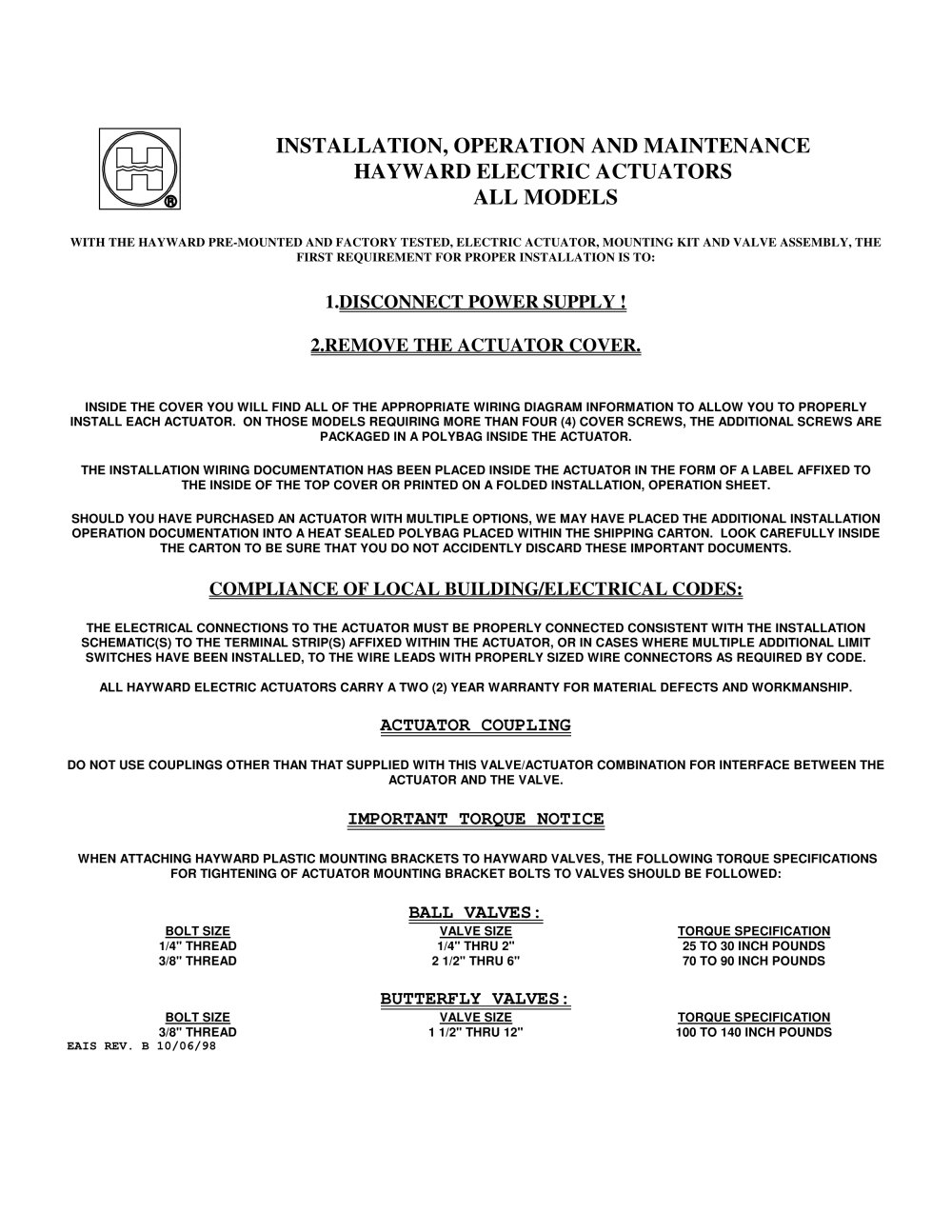

WITH THE HAYWARD PRE-MOUNTED AND FACTORY TESTED, ELECTRIC ACTUATOR, MOUNTING KIT AND VALVE ASSEMBLY, THE FIRST REQUIREMENT FOR PROPER INSTALLATION IS TO: > INSIDE THE COVER YOU WILL FIND ALL OF THE APPROPRIATE WIRING DIAGRAM INFORMATION TO ALLOW YOU TO PROPERLY INSTALL EACH ACTUATOR. ON THOSE MODELS REQUIRING MORE THAN FOUR (4) COVER SCREWS, THE ADDITIONAL SCREWS ARE PACKAGED IN A POLYBAG INSIDE THE ACTUATOR. THE INSTALLATION WIRING DOCUMENTATION HAS BEEN PLACED INSIDE THE ACTUATOR IN THE FORM OF A LABEL AFFIXED TO THE INSIDE OF THE TOP COVER OR PRINTED ON A FOLDED INSTALLATION, OPERATION SHEET. SHOULD YOU HAVE PURCHASED AN ACTUATOR WITH MULTIPLE OPTIONS, WE MAY HAVE PLACED THE ADDITIONAL INSTALLATION OPERATION DOCUMENTATION INTO A HEAT SEALED POLYBAG PLACED WITHIN THE SHIPPING CARTON. LOOK CAREFULLY INSIDE THE CARTON TO BE SURE THAT YOU DO NOT ACCIDENTLY DISCARD THESE IMPORTANT DOCUMENTS. > THE ELECTRICAL CONNECTIONS TO THE ACTUATOR MUST BE PROPERLY CONNECTED CONSISTENT WITH THE INSTALLATION SCHEMATIC(S) TO THE TERMINAL STRIP(S) AFFIXED WITHIN THE ACTUATOR, OR IN CASES WHERE MULTIPLE ADDITIONAL LIMIT SWITCHES HAVE BEEN INSTALLED, TO THE WIRE LEADS WITH PROPERLY SIZED WIRE CONNECTORS AS REQUIRED BY CODE. ALL HAYWARD ELECTRIC ACTUATORS CARRY A TWO (2) YEAR WARRANTY FOR MATERIAL DEFECTS AND WORKMANSHIP. > DO NOT USE COUPLINGS OTHER THAN THAT SUPPLIED WITH THIS VALVE/ACTUATOR COMBINATION FOR INTERFACE BETWEEN THE ACTUATOR AND THE VALVE. > WHEN ATTACHING HAYWARD PLASTIC MOUNTING BRACKETS TO HAYWARD VALVES, THE FOLLOWING TORQUE SPECIFICATIONS FOR TIGHTENING OF ACTUATOR MOUNTING BRACKET BOLTS TO VALVES SHOULD BE FOLLOWED: > BOLT SIZE VALVE SIZE TORQUE SPECIFICATION 1/4" THREAD 1/4" THRU 2" 25 TO 30 INCH POUNDS 3/8" THREAD 2 1/2" THRU 6" 70 TO 90 INCH POUNDS > BOLT SIZE VALVE SIZE TORQUE SPECIFICATION 3/8" THREAD 1 1/2" THRU 12" 100 TO 140 INCH POUNDS EAIS REV. B 10/06/98 >
