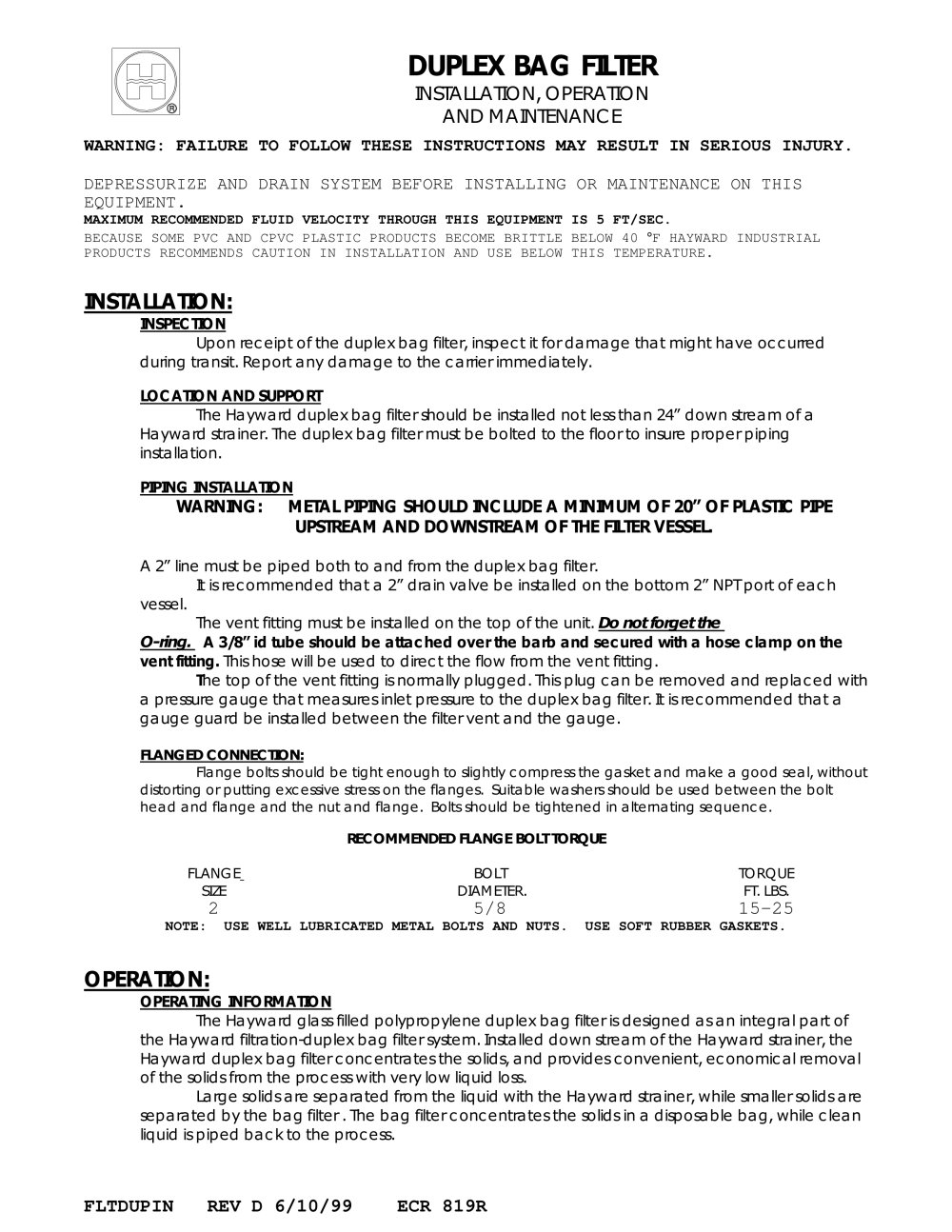

MAXIMUM RECOMMENDED FLUID VELOCITY THROUGH THIS EQUIPMENT IS 5 FT/SEC. BECAUSE SOME PVC AND CPVC PLASTIC PRODUCTS BECOME BRITTLE BELOW 40 F HAYWARD INDUSTRIAL PRODUCTS RECOMMENDS CAUTION IN INSTALLATION AND USE BELOW THIS TEMPERATURE. INSPECTION Upon receipt of the duplex bag filter, inspect it for damage that might have occurred during transit. Report any damage to the carrier immediately. LOCATION AND SUPPORT The Hayward duplex bag filter should be installed not less than 24Д down stream of a Hayward strainer. The duplex bag filter must be bolted to the floor to insure proper piping installation. PIPING INSTALLATION > Do not forget the A 2Ԕ line must be piped both to and from the duplex bag filter. It is recommended that a 2 drain valve be installed on the bottom 2Ԕ NPT port of each vessel. The vent fitting must be installed on the top of the unit. O-ring. A 3/8 id tube should be attached over the barb and secured with a hose clamp on the vent fitting. This hose will be used to direct the flow from the vent fitting. T he top of the vent fitting is normally plugged. This plug can be removed and replaced with a pressure gauge that measures inlet pressure to the duplex bag filter. It is recommended that a gauge guard be installed between the filter vent and the gauge. > FLANGED CONNECTION: Flange bolts should be tight enough to slightly compress the gasket and make a good seal, without distorting or putting excessive stress on the flanges. Suitable washers should be used between the bolt head and flange and the nut and flange. Bolts should be tightened in alternating sequence. RECOMMENDED FLANGE BOLT TORQUE FLANGE SIZE BOLT DIAMETER. TORQUE FT. LBS. NOTE: USE WELL LUBRICATED METAL BOLTS AND NUTS. USE SOFT RUBBER GASKETS. OPERATING INFORMATION The Hayward glass filled polypropylene duplex bag filter is designed as an integral part of the Hayward filtration-duplex bag filter system. Installed down stream of the Hayward strainer, the Hayward duplex bag filter concentrates the solids, and provides convenient, economical removal of the solids from the process with very low liquid loss. Large solids are separated from the liquid with the Hayward strainer, while smaller solids are separated by the bag filter . The bag filter concentrates the solids in a disposable bag, while clean liquid is piped back to the process. >

Open the catalog to page 1

COVER 2 CLASS 150 INLET FLANGE INACTIVE UNIT VENT VALVE WITH OPTIONAL GAUGE AND GAUGE GAURD ACTIVE UNIT HANDLE POINTS IN THIS DIRECTION 2Ԕ CLASS 150 FLANGED OUTLET CHANGE OVER HANDLE OPTIONAL DRAIN VALVE >
