Overview

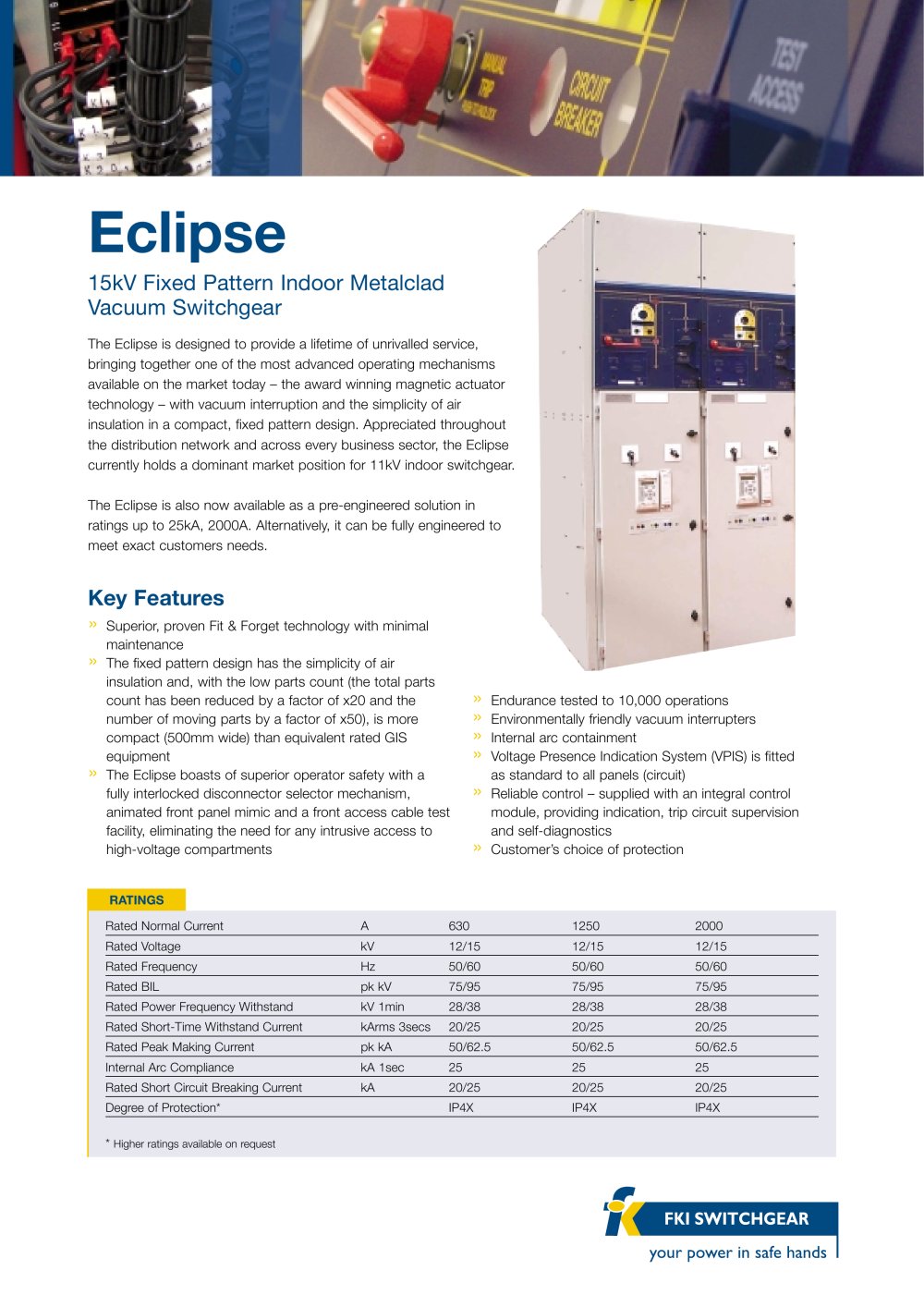

The document describes the Eclipse 15kV Fixed Pattern Indoor Metalclad Vacuum Switchgear, highlighting its advanced features, specifications, and engineering details. It emphasizes the product's reliability, safety, and environmental benefits.
Key Features
Technical Specifications
Design and Construction
Engineering Details
Standards and Compliance
Contact Information
Contact details for various regional offices and the main website are provided for further inquiries.
The document describes the Eclipse 15kV Fixed Pattern Indoor Metalclad Vacuum Switchgear, highlighting its advanced features, specifications, and engineering details. It emphasizes the product's reliability, safety, and environmental benefits.
Key Features
- Fit & Forget technology with minimal maintenance.
- Compact design with reduced parts count, enhancing simplicity and reliability.
- Enhanced operator safety with interlocked disconnector selector mechanism and front access cable test facility.
- Utilizes award-winning magnetic actuator technology and vacuum interruption.
- Available as a pre-engineered solution or customizable to customer needs.
Technical Specifications
- Rated Normal Current: 630A, 1250A, 2000A.
- Rated Voltage: 12/15 kV.
- Rated Frequency: 50/60 Hz.
- Rated BIL: 75/95 kV.
- Rated Short-Time Withstand Current: 20/25 kA for 3 seconds.
- Internal Arc Compliance: 25 kA for 1 second.
- Degree of Protection: IP4X.
Design and Construction
- Endurance tested to 10,000 operations.
- Environmentally friendly vacuum interrupters.
- Internal arc containment and Voltage Presence Indication System (VPIS) as standard.
- Reliable control with integral control module for indication, trip circuit supervision, and self-diagnostics.
Engineering Details
- Dimensions for various panels and components are provided, ensuring adaptability and future expansion.
- Busbars constructed from high conductivity copper with vermin-proof covered joints.
- Three-phase vacuum interrupter assembly supported by a single moulding.
- Patented single coil magnetic actuator mechanism based on a solenoid plunger.
- Generous CT accommodation for complex protection schemes.
Standards and Compliance
- Complies with IEC standards: IEC 60056, IEC 60298, IEC 60129, IEC 60255, IEC 60694, EATS 41-36, EATS 50-18.
- Quality Assurance certified to ISO 9001 by AFAQ-EAQA.
Contact Information
Contact details for various regional offices and the main website are provided for further inquiries.
See more
Catalog excerpts
Standards: IEC 60056, IEC 60298, IEC 60129, IEC 60255, IEC 60694, EATS 41-36, EATS 5O-18 Auxiliary Operating Supply125/110/48/30V dcTypical Weight Range between 500kg and 650kg Busbars1250A, 2000A Normal Service Conditions: Ambient air temperature-5 ˚C to +40 ˚C Relative humidity < 95%Altitude < 1000m > Quality Assurance Certified and accredited to ISO 9001 by the AFAQ-EAQA. DIMENSIONS (Inmm) Dimensions for a standard Eclipse feeder/incomer panel; (a) 1162 (b) 2165 (c) 500 Dimensions for a standard Bus-section panel; (a) 1162 (b) 2165 (c) 1000 Dimensions for a Busbar earthing switch; > (c) (a)...
