ELECTRIC ROUGH TERRAIN SCISSOR LIFTS

The construction and industrial sectors are evolving. At the same time, expectations around performance, autonomy, and versatility haven’t changed: machines need to deliver, no matter the terrain or constraints. THE RISE OF ELECTRIC MEWPs Shifting toward electric equipment is no longer a future plan, it’s already underway. The challenge is clear: meet environmental demands while maintaining high productivity in all conditions, indoor or outdoor, rough or smooth terrain. The PULSEO range was designed precisely in response to this new context . 100% electric , built for tough environments , and...

PULSEO SCISSORS RANGE FULL ELECTRIC & ROUGH TERRAIN SCISSORS PULSEO

ELECTRIC ROUGH TERRAIN SCISSORS LIFTS, FOR WHAT APPLICATIONS? Heavy construction Cladding, insulation, etc. Finishing & Maintenance Electricity, HVAC, plumbing, painting, etc. Specific industrial operations & events Aviation, places prohibiting combustion engines, etc.

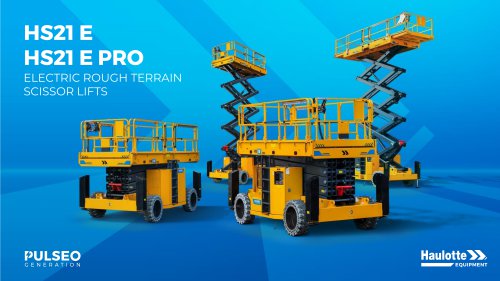

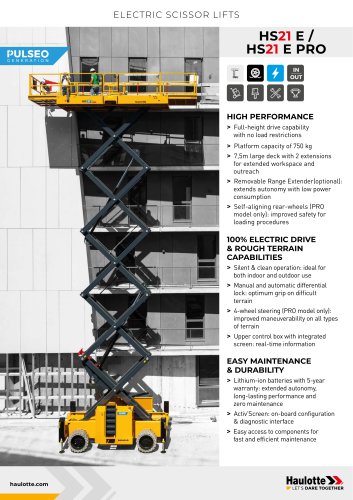

NEW HS21 E & HS21 E PRO MAJOR BENEFITS Working height : 21,2 m Load capacity: 4 people / 750 kg 4-wheel steering with auto alignment of the rear wheels Driveable at full height 72V Lithium-ion batteries Upper control box with screen

Oscillating Axle Self - aligning rear - wheels Activ’Energy Management – SMART Activ’ Screen Activ’ Lighting System Leak containment system Central tube holder Access handles on platform plinth Load capacity 72V Lithium - ion batteries Swing door

EXPERIENCE HIGHER PRODUCTIVITYPLATFORM CAPACITY OF 750KC • 4 persons in the platform • Central tube holder (optional) • Material handling rack (optional) • With 2 extensions for extended workspace and outreach • Foldable guardrails in 2 min - only 8 pins • Made out of easy to replace aluminum plates • Ideal for both indoor and outdoor use

© Designed as a true co-pilo1, guiding the operator step-by-step to: ensure quicker machine familiarization, • avoid handling errors, • reduce unnecessary machine lockouts, • limit calls to after-sales service. © Intuitive screen interface: Displays real-time information about the machine. It features intelligent brightness management for optimal readability in any conditions. © Self-adjusting interface: if the machine is not equipped with a specific function (such as the Range Extender), it won’t appear on the screen,preventing anyconfusion fortheoperator.

NEW UPPER CONTROL BOX WITH SCREEN ROBUST, USER-FRIENDLY, AND EASY TO MAINTAIN FOR MAXIMUM DAILY PRODUCTIVITY 2 4.3-inch color screen (non-touch) Reinforced to resist shocks and scratches (IK9 rating) Only 8 screws to access the electronic components Removable joystick Function not available on the machine: command not visible

REDEFINING THE USER EXPERIENCE Time & battery level Instructions (overload, low battery, incorrect positioning of outriggers, etc.) Working area The screen interface is divided into 5 areas, giving the operator a clear view of the machine's status regarding current operations and the working environment. In case of difficulties (overload, low battery…), the screen provides the operator with an early warning and instructions on how to continue using the machine. Instructions are provided in pictograms and drawings to be fully understood in any operator’s language. Machine status

EXPERIENCE DRIVING EFFICIENCY Designed for rough terrain 4- wheel drive and axle - based transmission for optimal traction and maximum torque Climb slopes up to 38% Tilt up to 3.5 ° longitudinally and 1.5 ° laterally Manual and automatic differential lock for optimal grip Even greater maneuverability with the PRO version 4- wheel steering With such large scissors, wheels cannot be seen all at once. The automatic rear - wheels alignment system makes maneuvering easier both on the jobsite and during transport to load the machine back onto the truck.

EXPERIENCE THE POWER OF 100% ELECTRIC 3 days of autonomy in electric mode and up to 9 additional days with the Range Extender on a single fuel tank a 100% electric motor , suitable for both indoor and outdoor use (IN/OUT) Non- marking tires available as an option perfect for sensitive surfaces *Unlimited duty cycle thanks to the Range Extender, which can be refilled at any time 13

EXTEND YOUR DUTY CYCLES CHARGER (machine plugged to the main) Power delivered Equipped as standard. 230V or 110V depending on country Three-phased 380 V (worldwide except US) RANGE EXTENDER Option requires three - phased specific plugs on jobsites STANDARD CHARGE Three-phased With the REX attached, you can work indefinitely, as long as there is fuel ACCELERATE CHARGING HS21 E Maximum charge duration* from 20% to

LITHIUM-ION BATTERIES: RELIABILITY, AND INNOVATION EXTENDED AUTONOMY & LONG-LASTING PERFORMANCE Thanks to their advanced technology, Lithium-ion batteries deliver: • Extended autonomy to work all day without performance drop-off • Faster charging times compared to conventional lead-acid batteries • The flexibility to recharge at any time, even partially, with no full-cycle requirement The result: increased machine uptime and optimized productivity on job sites. Built to last, they offer a service life of up to 10 years, several times longer than traditional batteries, significantly reducing replacement...

LITHIUM-ION BATTERIES: RELIABILITY, AND INNOVATION ZERO MAINTENANCE & UNFAILING RESISTANCE Lithium-ion batteries are completely maintenance-free: no water refilling, no corrosion risks, no servicing constraints. This ensures time savings, enhanced safety, and peace of mind for operators. Their resilience to extreme temperatures (-25°C/+55°C) and heavy-duty usage (even with multiple charge cycles), guarantees uncompromised reliability in the toughest job site conditions. Haulotte provides a 5-year warranty on Lithium-ion batteries, ensuring long-term peace of mind. Zero maintenance : no water,...
