Ring ionizers RI 20 / RI 32 / RI 65

Ring ionizers RI 20 / RI 32 / RI 65
2Pages

Catalog excerpts

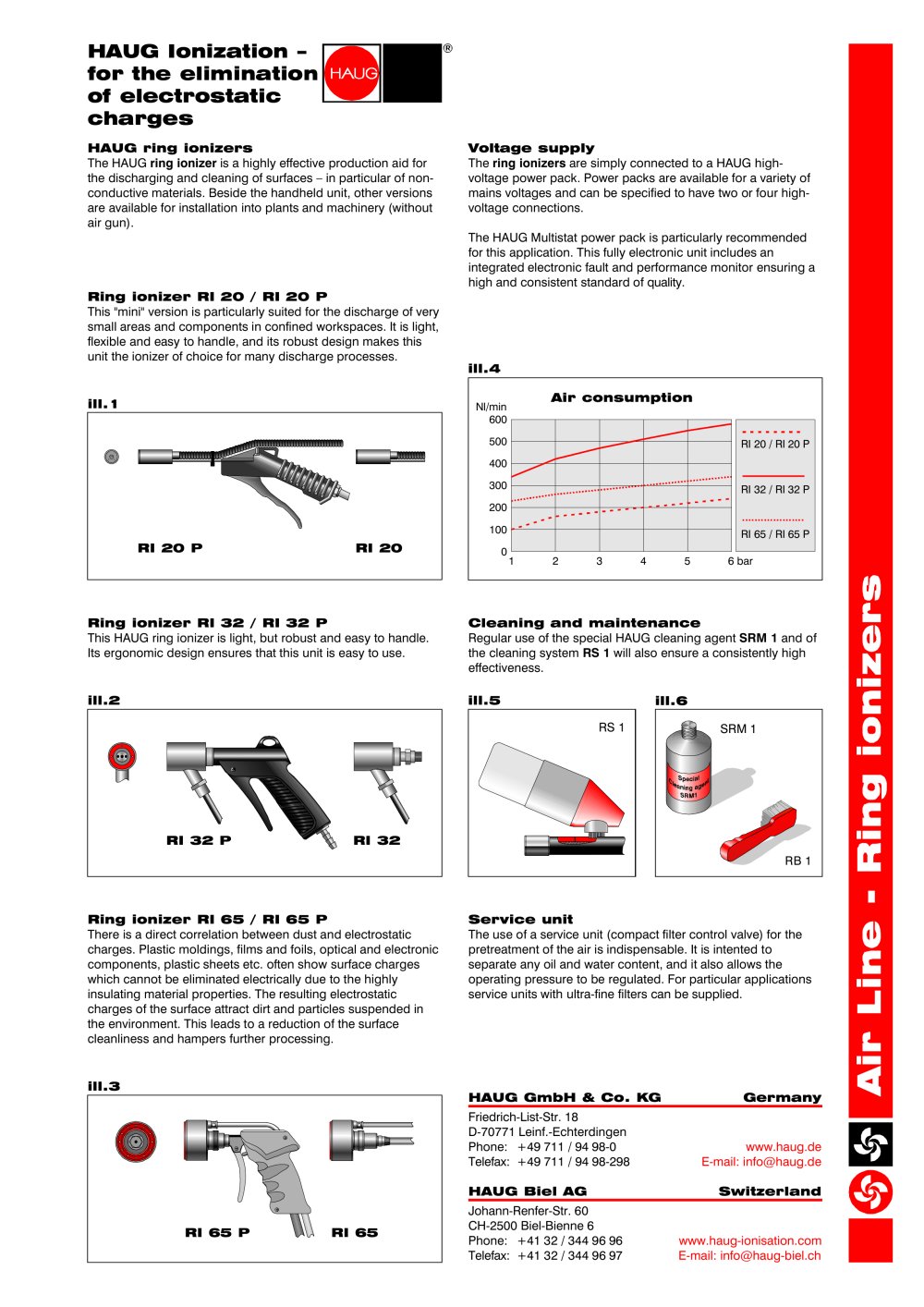

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial Black", sans-serif; } .font3 { font:13.00pt "Arial Black", sans-serif; } HAUG lonization -for the limination of electrostatic charges HAUG ring ionizers The HAUG ring ionizer is a highly effective production aid for the discharging and cleaning of surfaces - in particular of non-conductive materials. Beside the handheld unit, other versions are available for installation into plants and machinery (without air gun). Voltage supply The ring ionizers are simply connected to a HAUG high-voltage power pack. Power packs are available for a variety of mains voltages and can be specified to have two or four high-voltage connections. The HAUG Multistat power pack is particularly recommended for this application. This fully electronic unit includes an integrated electronic fault and performance monitor ensuring a high and consistent standard of quality. Ring ionizer RI 20 / RI 20 P This "mini" version is particularly suited for the discharge of very small areas and components in confined workspaces. It is light, flexible and easy to handle, and its robust design makes this unit the ionizer of choice for many discharge processes. ill.4 Nl/min 600 500 400 300 200 100 Air consumption RI 20/RI 20 P RI 32/RI32P RI 65/RI65P 0 6 bar Ring ionizer RI 32 / RI 32 P This HAUG ring ionizer is light, but robust and easy to handle. Its ergonomic design ensures that this unit is easy to use. Cleaning and maintenance Regular use of the special HAUG cleaning agent SRM 1 and of the cleaning system RS 1 will also ensure a consistently high effectiveness. ill.2 ill.5 ill.6 Ring ionizer RI 65 / RI 65 P There is a direct correlation between dust and electrostatic charges. Plastic moldings, films and foils, optical and electronic components, plastic sheets etc. often show surface charges which cannot be eliminated electrically due to the highly insulating material properties. The resulting electrostatic charges of the surface attract dirt and particles suspended in the environment. This leads to a reduction of the surface cleanliness and hampers further processing. Service unit The use of a service unit (compact filter control valve) for the pretreatment of the air is indispensable. It is intented to separate any oil and water content, and it also allows the operating pressure to be regulated. For particular applications service units with ultra-fine filters can be supplied. ill.3 HAUG GmbH & Co. KG Germany Friedrich-List-Str. 18 D-70771 Leinf.-Echterdingen Phone: +49 711 / 94 98-0 Telefax: +49 711 /94 98-298 HAUG Biel AG www.haug.de E-mail: info@haug.de Switzerland Johann-Renfer-Str. 60 CH-2500 Biel-Bienne 6 Phone: +41 32/344 96 96 Telefax: +41 32 / 344 96 97 www.haug-ionisation.com E-mail: info@haug-biel.ch

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial Black", sans-serif; } Standard holders Technical data RI 20 / RI 20 P M6 150 2° 10.7207.001 Types: Dimensions: Nozzle: Weight RI 20: Weight RI 20 P: RI 20 RI 20 P Order-No.: 04.7200.000 Order-No.: 04.7203.000 66 0 20 mm 0 2 mm, solid stream nozzle 0.2 kg (without HV-cable, without air hose) 0.5 kg (with handle, without HV-cable, 30 10.7202.000 without air hose) Air consumption:...

Open the catalog to page 2

Ring ionizers RI 20 / RI 32 / RI 65 2Pages
