Ring ionizer EI RIF

Ring ionizer EI RIF

Product catalog summary

Overview: The document discusses the ring ionizer, a specialized equipment designed to eliminate electrostatic charges during the conveying of granular products. It ensures a steady and efficient production process by neutralizing high static charge potentials.

Specifications: The ring ionizer is powered by the HAUG Multistat high voltage mains, featuring automatic fault indication via an integrated flashing LED, an easily scanned analog display for operational readiness, and connectivity for optical or acoustic signaling devices. It is available in various sizes with external diameters ranging from 140 mm to 380 mm and internal diameters from 20 mm to 300 mm. Operating pressure is between 1 to 2 bars, and it functions within a temperature range of +5 °C to +45 °C.

Applications: The ring ionizer is essential in the plastic and automobile industries, particularly for injection molding machines, extruders, and metal separators. It is effective in the transportation and feeding of granular and powdery materials, especially plastic granules and mixtures.

Advantages: The equipment can be used with or without compressed air support, efficiently eliminating negative effects on separating shafts during classification processes. It also prevents explosion risks during uncontrolled discharge operations. The ionizer can be integrated seamlessly with existing pipe or hose conveying systems.

Technical Data: The document provides detailed technical specifications for different models of the ring ionizer, including order numbers and dimensions. It also lists accessories such as air connections and high-voltage cables.

Contact Information: HAUG GmbH & Co. KG in Germany and HAUG Biel AG in Switzerland are the manufacturers, with contact details provided for further inquiries.

Catalog excerpts

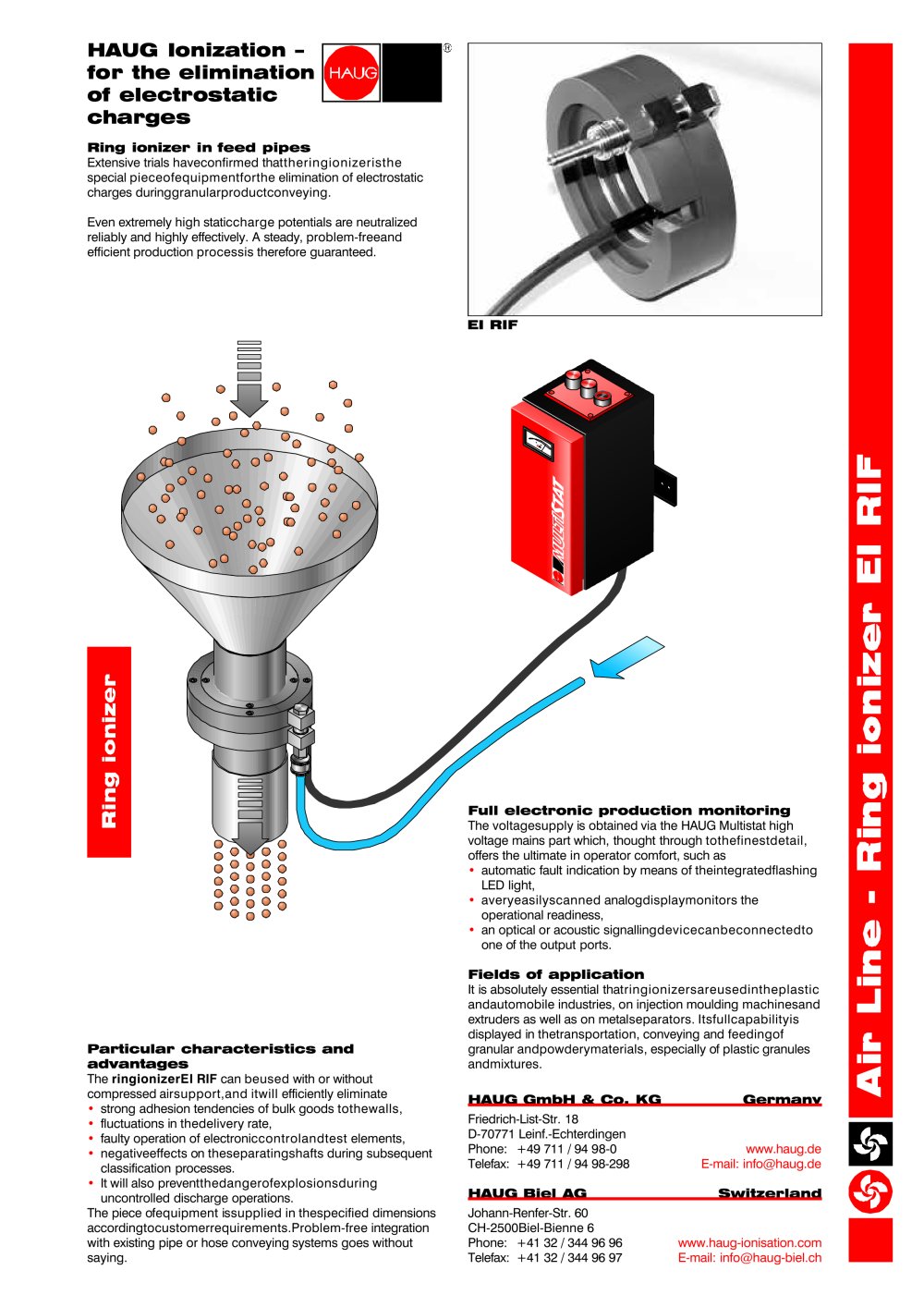

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:40.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial Black", sans-serif; } .font5 { font:13.00pt "Arial Black", sans-serif; } .font6 { font:18.00pt "Georgia", serif; } HAUG lonization -for the limination of electrostatic charges Ring ionizer in feed pipes Extensive trials haveconfirmed thattheringionizeristhe spcial pieceofequipmentforthe elimination of electrostatic charges duringgranularproductconveying. Even extremely high staticcharge potentials are neutralized reliably and highly effectively. A steady, problem-freeand efficient production processis therefore guaranteed. EI RIF o i驗\ o o TT □ lu Particular characteristics and advantages The ringionizerEi RIF can beused with or without compressed airsupport,and itwill efficiently eliminate strong adhesion tendencies of bulk goods tothewalls, Օ fluctuations in thedelivery rate, faulty operation of electroniccontrolandtest elements, Օ negativeeffects on theseparatingshafts during subsequent classification processes. It will also preventthedangerofexplosionsduring uncontrolled discharge operations. The piece ofequipment issupplied in thespecified dimensions accordingtocustomerrequirements.Problem-free integration with existing pipe or hose conveying systems goes without saying. Full electronic production monitoring The voltagesupply is obtained via the HAUG Multistat high voltage mains part which, thought through tothefinestdetail, offers the ultimate in operator comfort, such as Օ automatic fault indication by means of theintegratedflashing LED light, averyeasilyscanned analogdisplaymonitors the operational readiness, Օ an optical or acoustic signallingdevicecanbeconnectedto one of the output ports. Fields of application It is absolutely essential thatringionizersareusedintheplastic andautomobile industries, on injection moulding machinesand extruders as well as on metalseparators. Itsfullcapabilityis displayed in thetransportation, conveying and feedingof granular andpowderymaterials, especially of plastic granules andmixtures. HAUG GmbH & Co. KG Germany Friedrich-List-Str. 18 D-70771 Leinf.-Echterdingen Phone: +49 711 /94 98-0 Telefax: +49 711 / 94 98-298 HAUG Biel AG www.haug.de E-mail: [email protected] Switzerland Johann-Renfer-Str. 60 CH-2500Biel-Bienne 6 Phone: +41 32 / 344 96 96 Telefax: +41 32 / 344 96 97 www.haug-ionisation.com E-mail: [email protected]

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial Black", sans-serif; } Accessories Technical data El RIF Types: El RIF 014 200 Order-No.:04.7529.000 0external: 140 mm 0internal: El RIF 018 200 20 - 60 mm Order-No.:04.7530.000 0 external: 180 mm 0internal: El RIF 028 200 60 - 100 mm Order-No.:04.7531.000 0 external: 280 mm 0internal: El RIF 038 200 100 - 200 mm Order-No.:04.7532.000 Design: 0 external: 380 mm 0internal: 200 - 300 mm Completely encapsuledplasticbody, compressed...

Open the catalog to page 2
