Needle ionizer NI

Needle ionizer NI

Product catalog summary

Overview: The document provides technical specifications and features of the HAUG Needle Ionizer NI, designed for the elimination of electrostatic charges. It includes details on the device's components, operational parameters, and technical data.

Key Features:

The Needle Ionizer NI is equipped with a suction chamber that allows for the removal of particles escaping from hollow bodies, such as bottles. This chamber can be detached if not needed.
The ionization tips are interchangeable, allowing customization of their diameter and length to fit specific hollow bodies.

Technical Specifications:

Types available include models with a 2-meter high-voltage cable and injection electrodes of 6 mm or 8 mm diameter, with lengths up to 50 mm.
Operating temperature ranges from +5 °C to +45 °C, while storage and transport temperatures range from -15 °C to +60 °C.
The smallest bending radius for the cable is R 50.
Various power packs are compatible, with connectable lengths varying from 5 m to 36 m depending on the model.

Additional Information:

The document includes a schematic illustration of the ionizer's operation, highlighting components such as the ionizer tip, suction chamber, and air flow.
Technical changes are subject to modification without notice.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {}

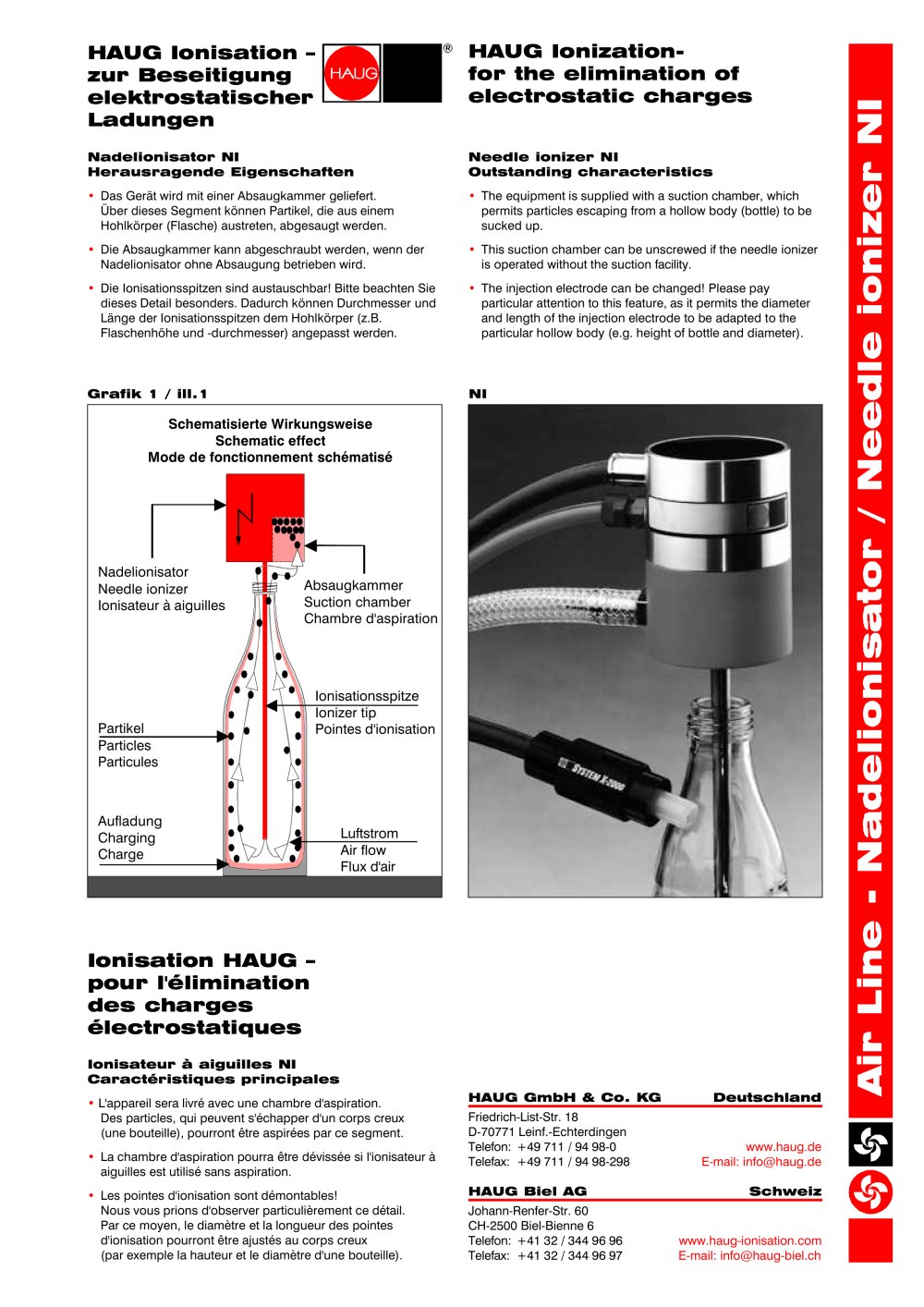

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial Black", sans-serif; } Caractristiques techniques ionisateur aiguilles Technische Daten Nadelionisator Typen: NI einschl. 2 m HS-Kabel und lnjektions-elektrode (0 6 oder 8 mm, bis zu einer L頠nge von 50 mm) Best.-Nr.: 14.7521.000 Types: NI avec 2 m cble haute tension et lectrode d'injection (0 6 ou 8 mm, longueur jusqu'⩠ 50 mm) Rf.: 14.7521.000 NI (ohne Kabel, Kabellnge variabel) Best.-Nr.: 04.7521.000 0 6 mm, L頠nge bis 50 mm Best.-Nr.:...
