Technical Specifications:
The Mini-Jet Ionizer I features a flat nozzle with dimensions of 91 x 55 x 16 mm. It has a cable connection diameter of 16 mm and consumes 315 liters of air per minute at 2 bar pressure. The optimal effective distance for operation is between 20 to 300 mm. It operates within a temperature range of +5 °C to +45 °C and can be stored or transported between -15 °C to +60 °C. The smallest bending radius for the cable is R 50. The ionizer is compatible with various power packs and cables, with maximum connectable lengths specified for different models.

Functionality:

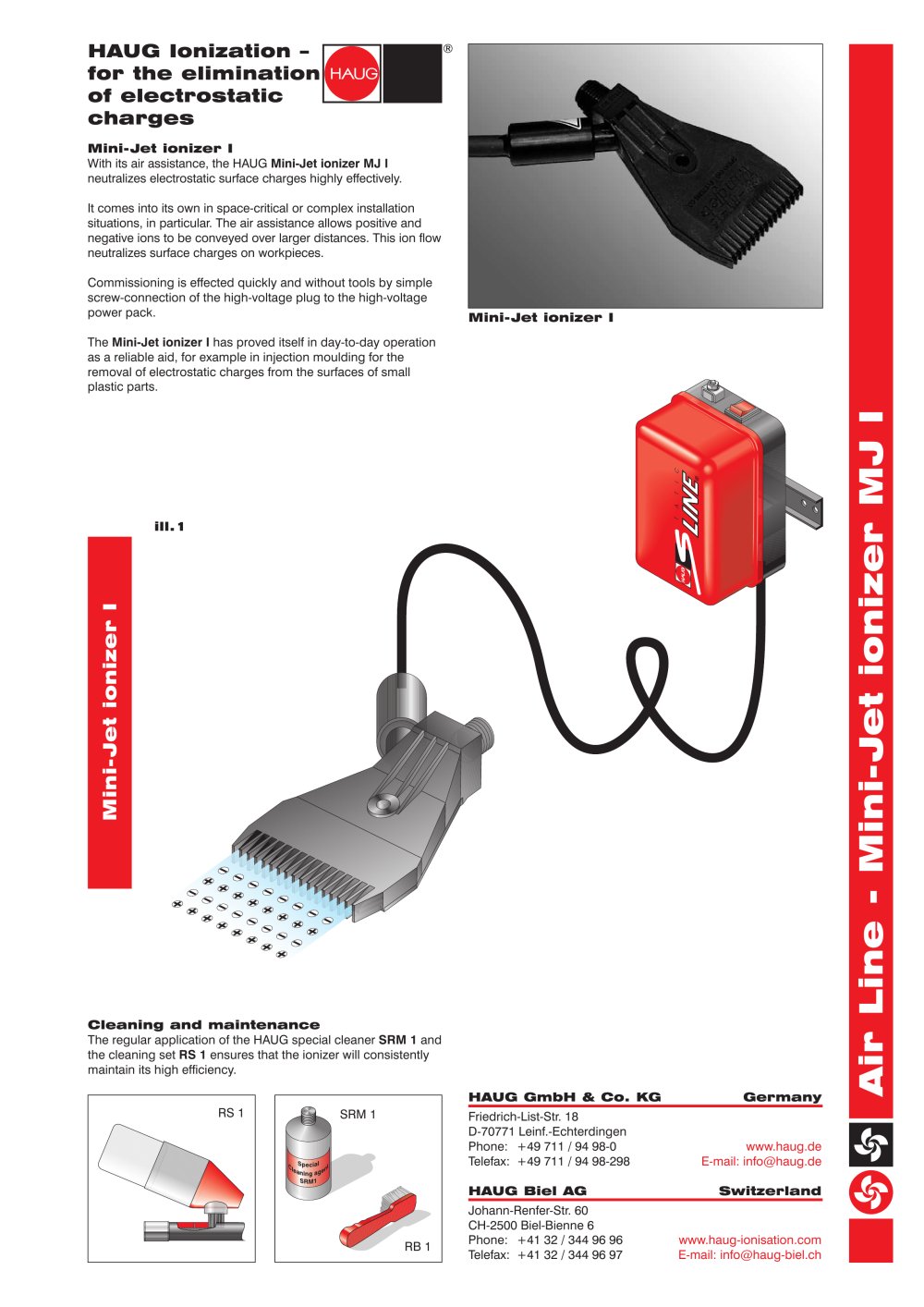

The HAUG Mini-Jet Ionizer I is designed to neutralize electrostatic surface charges effectively, especially in space-constrained or complex installations. It uses air assistance to convey ions over larger distances, neutralizing surface charges on workpieces. The device is easy to commission with a simple screw-connection to the high-voltage power pack.

Applications:
This ionizer is particularly useful in injection molding processes for removing electrostatic charges from small plastic parts.

Maintenance:
Regular cleaning with HAUG's special cleaner and cleaning set is recommended to maintain high efficiency.

Contact Information:
HAUG GmbH & Co. KG in Germany and HAUG Biel AG in Switzerland provide contact details for further inquiries.
