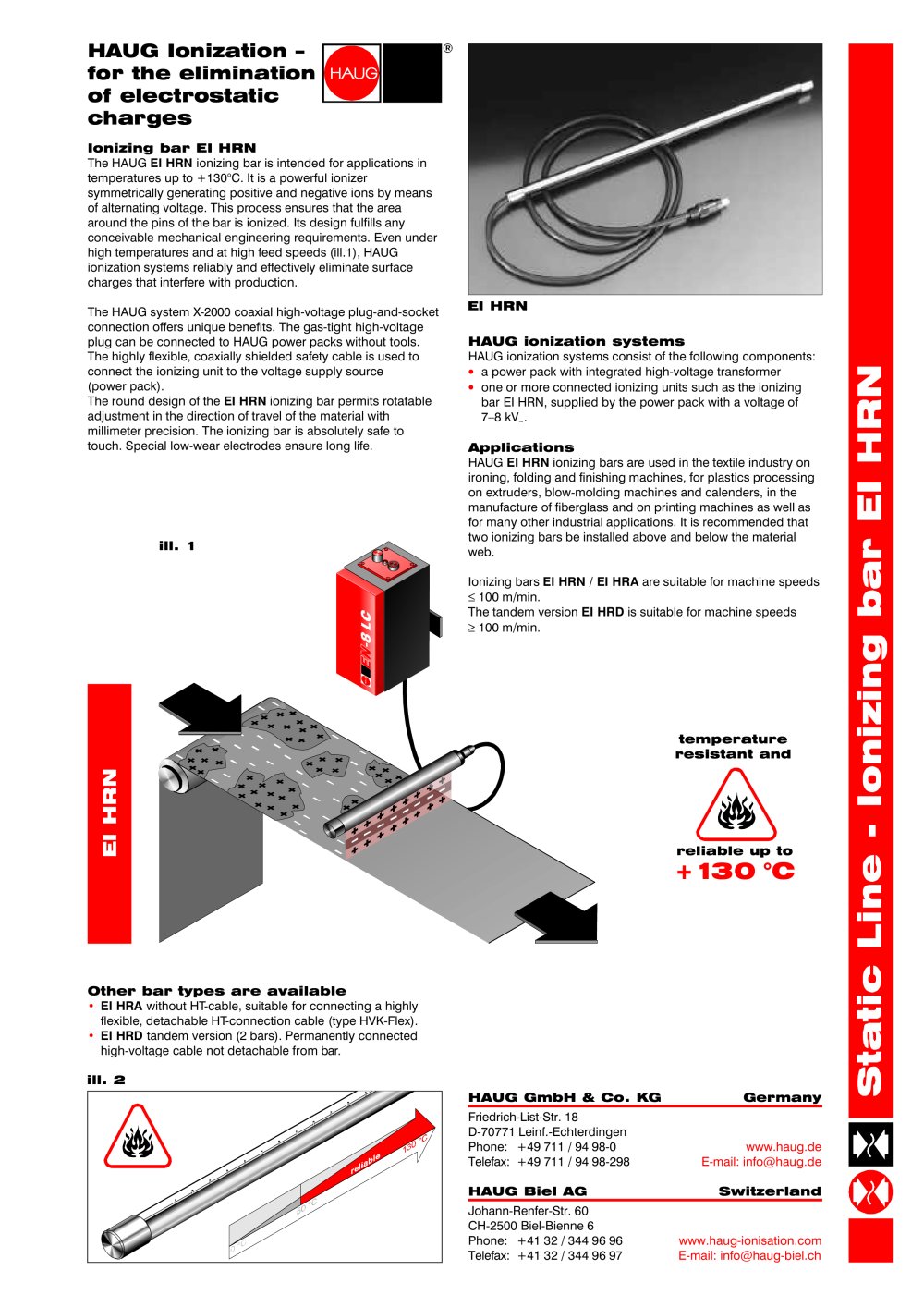

Overview: The document provides technical specifications and applications for the HAUG Ionizing Bar EI HRN, designed to eliminate electrostatic charges in high-temperature environments up to +130°C. It is suitable for various industrial applications, including textiles and plastics processing.

Specifications: The ionizing bar generates positive and negative ions using alternating voltage, ensuring effective ionization around the bar's pins. It features a coaxial high-voltage plug-and-socket connection, allowing tool-free connection to HAUG power packs. The bar is safe to touch and includes low-wear electrodes for longevity. Operating temperature ranges from +5°C to +130°C, with storage temperatures from -15°C to +60°C. The bar's diameter is 20 mm, with an effective distance of 20-30 mm.

Design and Features: The ionizing bar's round design allows for precise rotational adjustment. It is available in different versions, including the EI HRA and EI HRD, with options for detachable or permanently attached high-voltage cables. The tandem version is suitable for machine speeds over 100 m/min.

Applications: HAUG ionizing bars are used in the textile industry, plastics processing, fiberglass manufacturing, and printing machines. It is recommended to install two bars above and below the material web for optimal performance.

Accessories and Ordering Information: The document lists various accessories and order numbers for bar holders, clamping holders, and brackets. It also provides details on connectable lengths for different ionizing units and high-voltage cables.

Contact Information: HAUG GmbH & Co. KG in Germany and HAUG Biel AG in Switzerland are the primary contacts for further information and inquiries.
