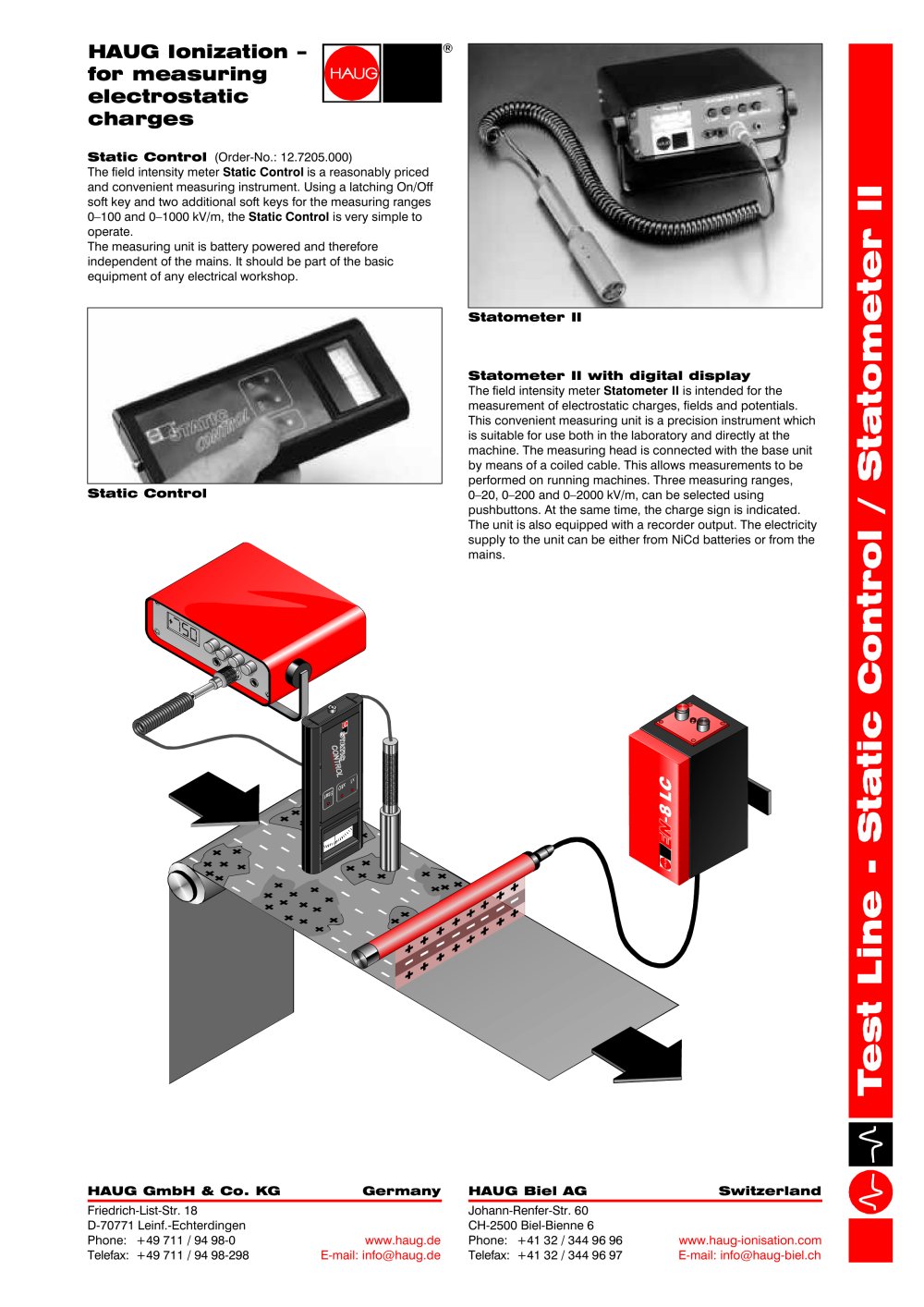

Field intensity meters Static Control / Statometer II

Product catalog summary

Overview: The Statometer II is a field intensity meter designed for measuring electrostatic charges, fields, and potentials. It is a cost-effective and user-friendly instrument suitable for both laboratory and on-site machine use.

Specifications:

Measuring Ranges: 0–20, 0–200, and 0–2000 kV/m, selectable via pushbuttons.
Display Options: Available with digital or analog display.
Power Supply: Operates on integrated rechargeable NiCd batteries or 115 V / 230 V mains voltage.
Recorder Output: -2 V to +2 V (0.2 mA).
Operating Temperature: +5 °C to +40 °C.
Storage/Transport Temperature: -15 °C to +60 °C.
Dimensions: 185 x 66 x 180 mm.
Weight: 1.5 kg.
Measuring Distance: 30 mm.

Features:

Equipped with a latching On/Off soft key and two additional soft keys for measuring ranges.
Includes a coiled cable connecting the measuring head to the base unit, allowing for measurements on running machines.
Indicates the charge sign during measurement.
Comes with a measuring case, measuring cable, measuring head, magnetic holder, batteries, and mains cable.

Applications: Ideal for electrical workshops and essential for measuring electrostatic charges in various environments.
