Introduction
This document provides guidelines for cleaning ionizing bars and pins to ensure high ionization effect and long service life. Regular cleaning is essential for optimal performance.

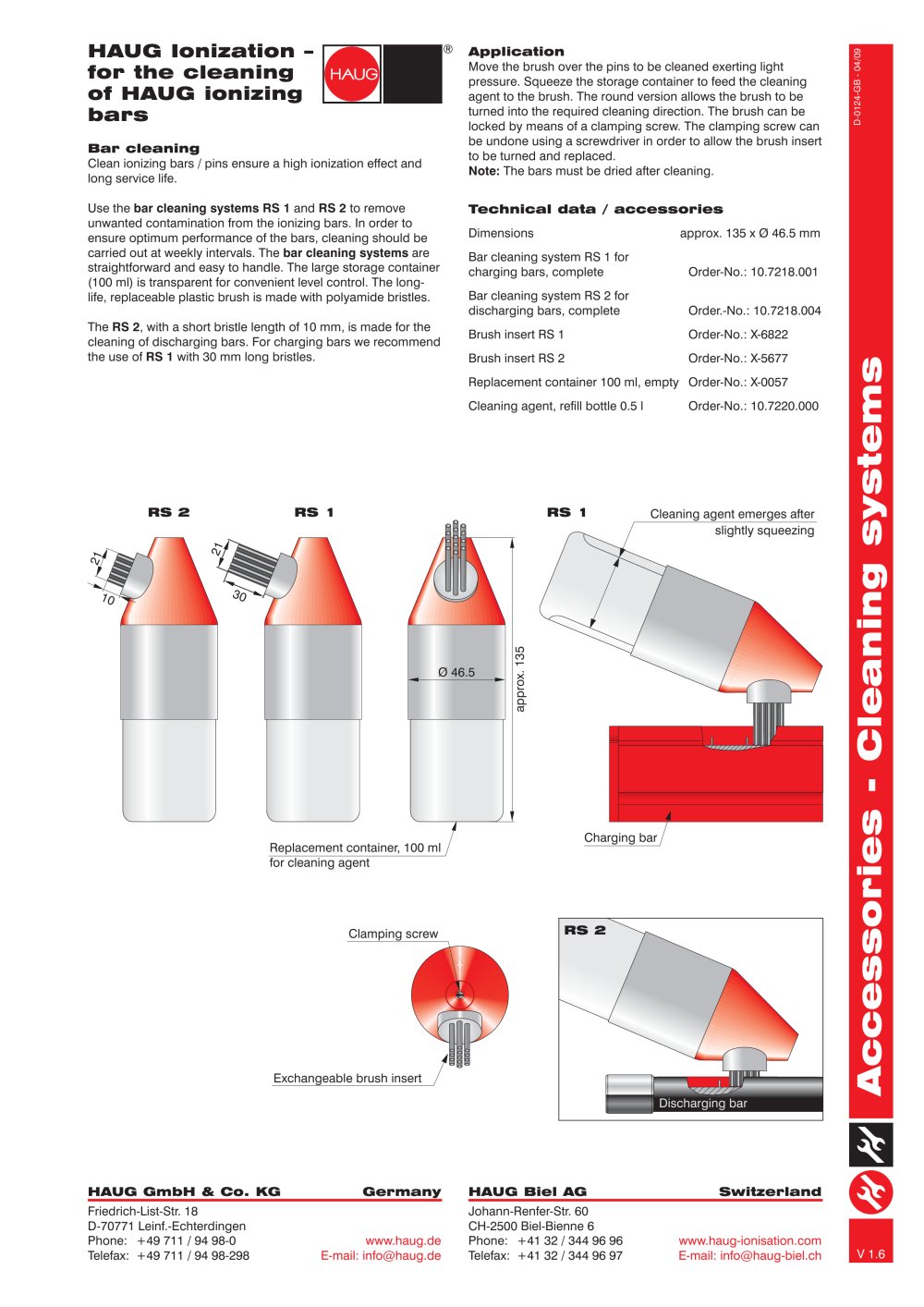

Cleaning Procedure
1. Use the designated cleaning systems (RS 1 for charging bars and RS 2 for discharging bars) to remove contamination.
2. Clean weekly for best results.
3. The cleaning system includes a transparent 100 ml storage container for easy level monitoring and a replaceable plastic brush with polyamide bristles.
4. For discharging bars, use a brush with 10 mm bristles; for charging bars, use a brush with 30 mm bristles.
5. Apply light pressure while moving the brush over the pins.
6. Squeeze the container to release the cleaning agent onto the brush.
7. The brush can be rotated and locked in place using a clamping screw.
8. Ensure bars are dried after cleaning.

Technical Specifications
- Dimensions: Approximately 135 x Ø 46.5 mm
- Order Numbers: RS 1 (10.7218.001), RS 2 (10.7218.004)
- Brush Inserts: RS 1 (X-6822), RS 2 (X-5677)
- Replacement Container: 100 ml, Order-No.: X-0057
- Cleaning Agent Refill: 0.5 l, Order-No.: 10.7220.000

Contact Information
HAUG Biel AG, Switzerland
Phone: +41 32 / 344 96 96
Email: [email protected]

HAUG GmbH & Co. KG, Germany
Phone: +49 711 / 94 98-0
Email: [email protected]

Conclusion
Regular maintenance using the specified cleaning systems will ensure the longevity and efficiency of ionizing bars.
