Charging generators AG SL / AG 25 / AG 30 / AG 35 / AG 60

Charging generators AG SL / AG 25 / AG 30 / AG 35 / AG 60
2Pages

Catalog excerpts

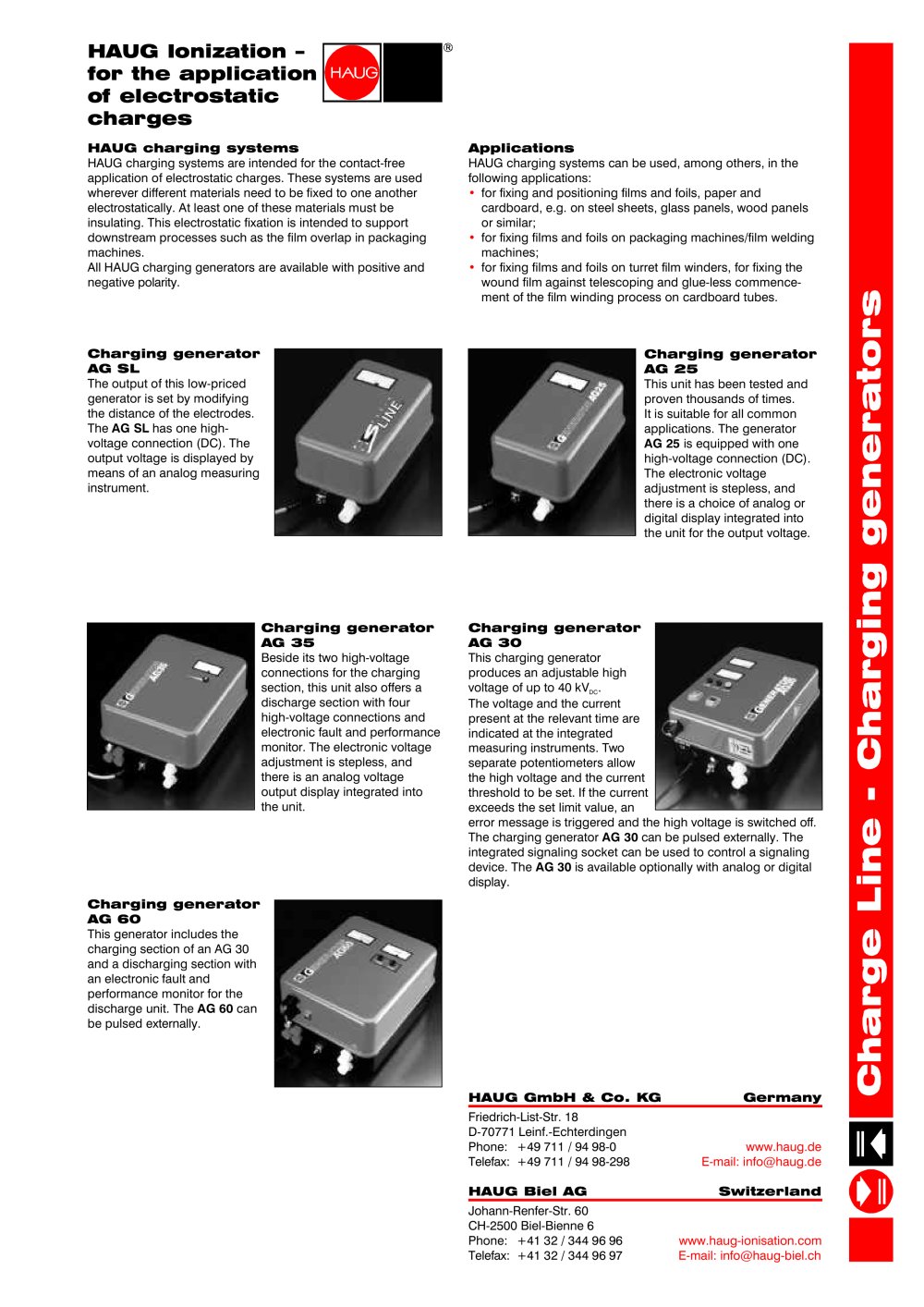

Charging generators AG SL / AG 25 / AG 30 / AG 35 / AG 60 - 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial Black", sans-serif; } .font2 { font:13.00pt "Arial Black", sans-serif; } HAUG lonization -for the application of electrostatic charges HAUG charging systems HAUG charging Systems are intended for the contact-free application of electrostatic charges. These Systems are used wherever different materials need to be fixed to one another electrostatically. At least one of these materials must be insulating. This electrostatic fixation is intended to support downstream processes such as the film overlap in packaging machines. All HAUG charging generators are available with positive and negative polarity. Applications HAUG charging systems can be used, among others, in the following applications: for fixing and positioning films and foils, paper and cardboard, e.g. on steel sheets, glass panels, wood panels or similar; Օ for fixing films and foils on packaging machines/film welding machines; for fixing films and foils on turret film winders, for fixing the wound film against telescoping and glue-less commenceխment of the film winding process on cardboard tubes. Charging generator AG SL The output of this low-priced generator is set by modifying the distance of the electrodes. The AG SL has one high-voltage connection (DC). The output voltage is displayed by means of an analog measuring instrument. Charging generator AG 25 This unit has been tested and proven thousands of times. It is suitable for all common applications. The generator AG 25 is equipped with one high-voltage connection (DC). The electronic voltage adjustment is stepless, and there is a choice of analog or digital display integrated into the unit for the output voltage. Charging generator AG 35 Beside its two high-voltage connections for the charging section, this unit also offers a discharge section with four high-voltage connections and electronic fault and performance monitor. The electronic voltage adjustment is stepless, and there is an analog voltage output display integrated into the unit. Charging generator AG 30 This charging generator produces an adjustable high voltage of up to 40 kVDC. The voltage and the current present at the relevant time are indicated at the integrated measuring instruments. Two separate potentiometers allow the high voltage and the current threshold to be set. If the current exceeds the set limit value, an error message is triggered and the high voltage is switched off. The charging generator AG 30 can be pulsed externally. The integrated signaling socket can be used to control a signaling device. The AG 30 is available optionally with analog or digital display. Charging generator AG 60 This generator includes the charging section of an AG 30 and a discharging section with an electronic fault and performance monitor for the discharge unit. The AG 60 can be pulsed externally. HAUG GmbH & Co. KG Germany Friedrich-List-Str. 18 D-70771 Leinf.-Echterdingen Phone: +49 711 / 94 98-0 Telefax: +49 711 /94 98-298 HAUG Biel AG www.haug.de E-mail: info@haug.de Switzerland Johann-Renfer-Str. 60 CH-2500 Biel-Bienne 6 Phone: +41 32 / 344 96 96 Telefax: +41 32 / 344 96 97 www.haug-ionisation.com E-mail: info@haug-biel.ch

Open the catalog to page 1

Charging generators AG SL / AG 25 / AG 30 / AG 35 / AG 60 - 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial Black", sans-serif; } Teehnieal data AG SL / AG 25 Dimensions (LxWxH): 269x168x150mm Teehnieal data AG 30 Dimensions (LxWxH): 390x280x210mm Type of protect on: IP 54 Protection class: I Type of protection: Protection class: Supply voltage: Power input: Nominal output voltage Charging: IP54 I 115 V~/230 V~ (50-60 Hz) approx. 50 VA approx. 25 kVDC Supply voltage: Power input: 115...

Open the catalog to page 2
