Product Overview

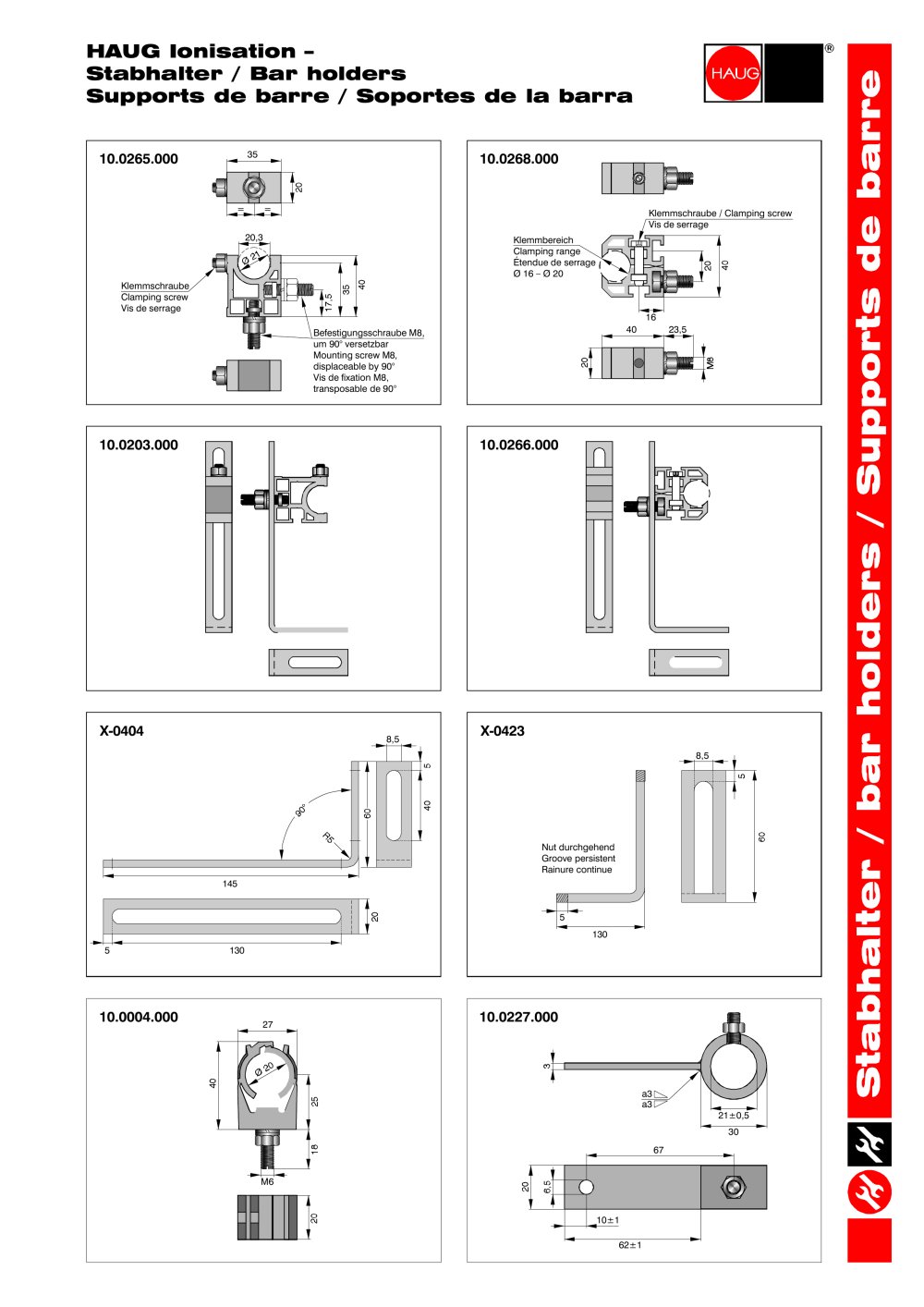

This document details the specifications and components of HAUG Ionisation bar holders (Stabhalter / Bar holders / Supports de barre / Soportes de la barra) with various part numbers including 10.0265.000, 10.0203.000, 10.0268.000, 10.0266.000, and others.

Key Components and Specifications

• Dimensions and Sizes: The bar holders have dimensions such as 5 mm and 8.5 mm thickness, lengths of 130 mm and 145 mm, and clamping ranges from Ø16 to Ø20 mm.
• Thread and Screws: Use of M6 nuts and M8 mounting screws, with the mounting screw being displaceable by 90° for flexible installation.
• Clamping Mechanism: Clamping screws (Klemmschraube / Vis de serrage) are specified with sizes M6 and M8, with clamping ranges and screw lengths detailed (e.g., 66 mm length for M6 screws).
• Groove Feature: The groove on the bar holder is persistent (continuous groove) to ensure secure holding.

Technical Parameters

• Nut: M6, continuous groove design
• Mounting screw: M8, adjustable by 90°
• Clamping range: Ø16 – Ø20 mm
• Dimensions: Various lengths and widths including 130 mm, 145 mm, 30 mm, 67 mm, and others as per part number

Installation and Usage Recommendations

The mounting screw can be repositioned by 90°, allowing flexible orientation during installation. Clamping screws ensure secure fixation of bars within the specified diameter range. The continuous groove design enhances stability and grip.

Manufacturer Information

HAUG Biel AG, Switzerland
Address: Johann-Renfer-Str. 60, CH-2500 Biel-Bienne 6
Phone: +41 32 / 344 96 96
Fax: +41 32 / 344 96 97
Email: [email protected]
Website: www.haug-ionisation.com

HAUG GmbH & Co. KG, Germany
Address: Friedrich-List-Str. 18, D-70771 Leinf.-Echterdingen
Phone: +49 711 / 94 98-0
Fax: +49 711 / 94 98-298
Email: [email protected]
Website: www.haug.de

Version and Document Control

Document version: V 1.0
