Air ionization blower Ion-Air blower IB
1 / 2 PagesView full catalog
Air ionization blower Ion-Air blower IB
Product catalog summary

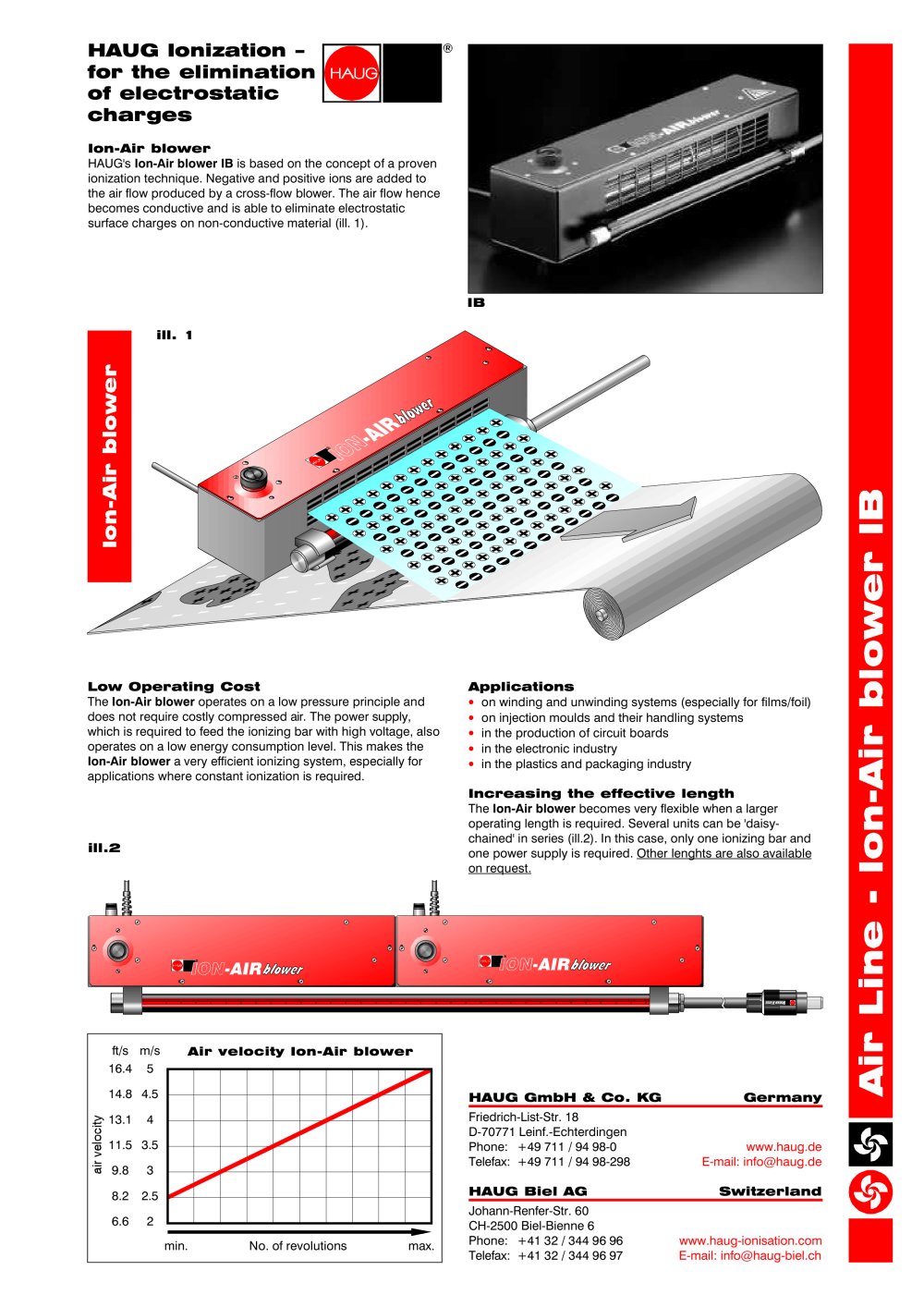

Overview: The document provides technical specifications and applications for the HAUG Ion-Air blower, a device designed to eliminate electrostatic charges using ionization techniques.
Specifications: The Ion-Air blower operates on a low-pressure principle, eliminating the need for compressed air, and is energy efficient. It is available in different lengths (457 mm, 813 mm, 1549 mm) with corresponding weights (2.7 kg, 3.6 kg, 7.0 kg) and power consumption (70 VA, 150 VA, 220 VA). The device operates at supply voltages of 115 V or 230 V and within a temperature range of +5 °C to +50 °C.
Applications: The Ion-Air blower is used in various industries, including film/foil winding systems, injection moulds, circuit board production, and the plastics and packaging industry. It can be extended by connecting multiple units in series, requiring only one ionizing bar and power supply.
Design and Accessories: The blower includes adjustable screws, retaining holders, and a base. Additional accessories include left and right brackets (Order-No.: X-3312, X-3313).
Contact Information: HAUG GmbH & Co. KG in Germany and HAUG Biel AG in Switzerland provide contact details for further inquiries.
