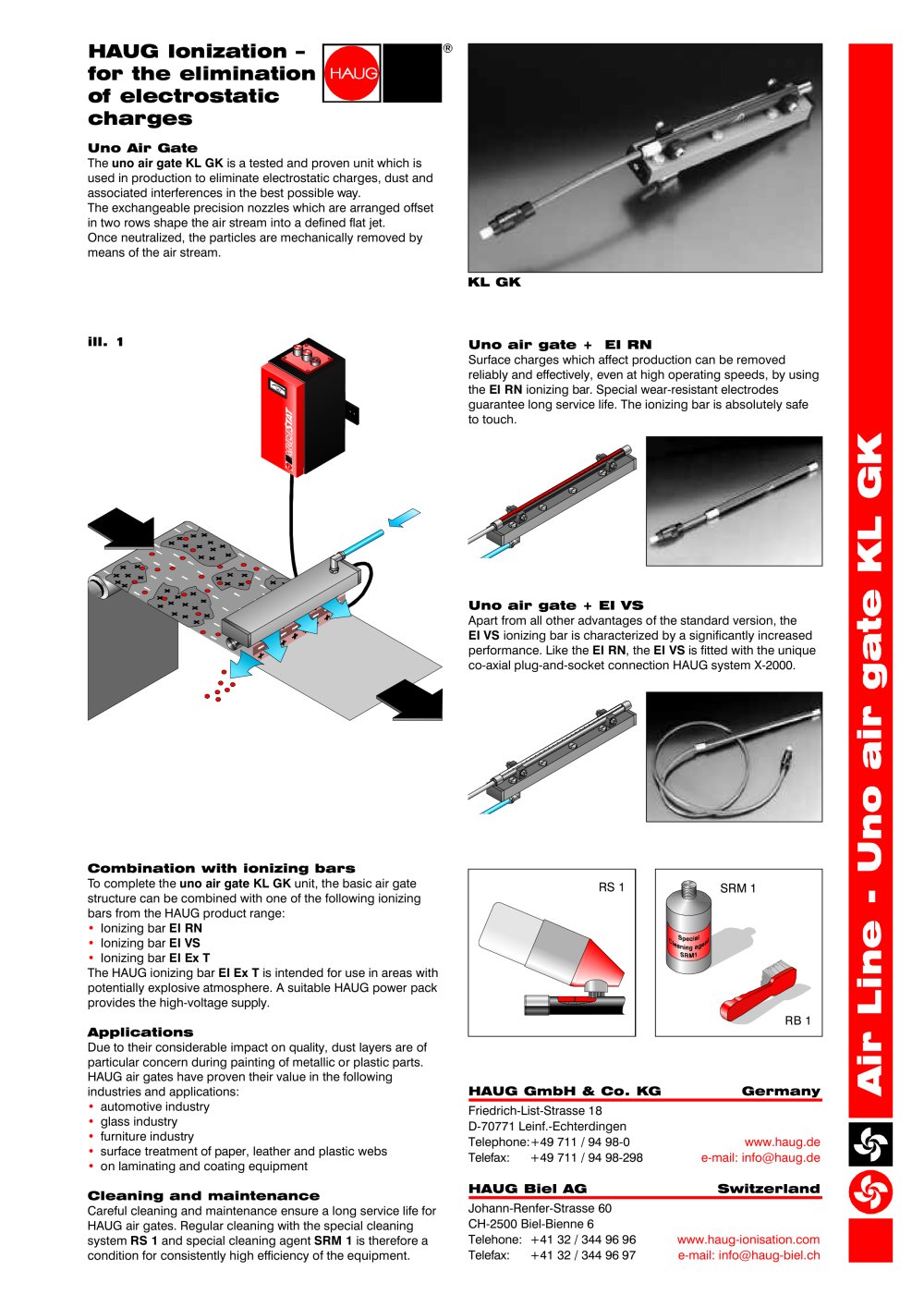

Overview: The document provides technical specifications and applications for the HAUG Uno Air Gate, a device designed to eliminate electrostatic charges and dust in industrial settings. It highlights the use of precision nozzles and ionizing bars to enhance performance and reliability.

Specifications: The Uno Air Gate features exchangeable precision nozzles arranged in two rows to create a defined flat jet for effective particle removal. It can be combined with various HAUG ionizing bars, suitable for explosive atmospheres, and powered by a HAUG power pack. The device is available in lengths ranging from 200 to 3000 mm, with special lengths available upon request. Operating temperatures range from +5 °C to +45 °C, and storage temperatures from -15 °C to +60 °C.

Applications: The Uno Air Gate is used across multiple industries, including automotive, glass, furniture, and surface treatment of materials like paper, leather, and plastics. It is particularly valuable in environments where dust layers can impact quality, such as during the painting of metallic or plastic parts.

Maintenance: Regular cleaning with a special cleaning system and agent is recommended to maintain high efficiency and prolong the service life of the air gates.

Technical Data: The document lists specific technical data, including nozzle specifications, air discharge angles, and connectable lengths for ionizing units. It also notes the availability of different power pack types and order numbers for various lengths.
