Vertical Balers

Product catalog summary

Overview: Harris Vertical Balers are designed to be affordable, durable, and easy to operate, providing an effective solution for reducing waste and associated costs. They are suitable for processing various materials including newspaper, cardboard, high-grade paper, plastics, cans, and non-ferrous metals.

Specifications:

Models: The document lists several models such as V5-HD-10, V5-HD-15, V5-SLP, V5-XHD, VNF-5, V6-15, VS-6M, and VDC-1.
Bale Size: Most models produce bales with a length of 60 inches (1524 mm) and a width of 30 inches (762 mm), except for the VS-6M which has a width of 42 inches (1067 mm).
Bale Weight (OCC): Ranges from 600-1600 lbs (272-725 kg) depending on the model.
Motor Horsepower: Varies between 10 to 15 HP across different models.
Hydraulic Pressure: Maximum pressure ranges from 1800 psi (124 BAR) to 3000 psi (206 BAR).
Platen Force: Maximum force ranges from 50,900 lbs (23,088 kg) to 145,770 lbs (66,120 kg).
Main Cylinder Bore: Sizes range from 6 inches (152 mm) to 8 inches (203 mm).
Hydraulic Pump Capacity: Ranges from 11 gpm (41 lpm) to 28.5/7.5 gpm (108/28 lpm).
Oil Reservoir Capacity: Varies from 12 gallons (45.4 L) to 44 gallons (166.6 L).
Shipping Weight: Ranges from 3,860 lbs (1,751 kg) to 9,750 lbs (4,423 kg).

Contact Information: For more information, Harris can be contacted at 770-631-7290 or 800-373-9131, and further details are available on their website www.harrisequip.com.

Note: All products and features are subject to change, and photos may not necessarily represent new equipment.

Catalog excerpts

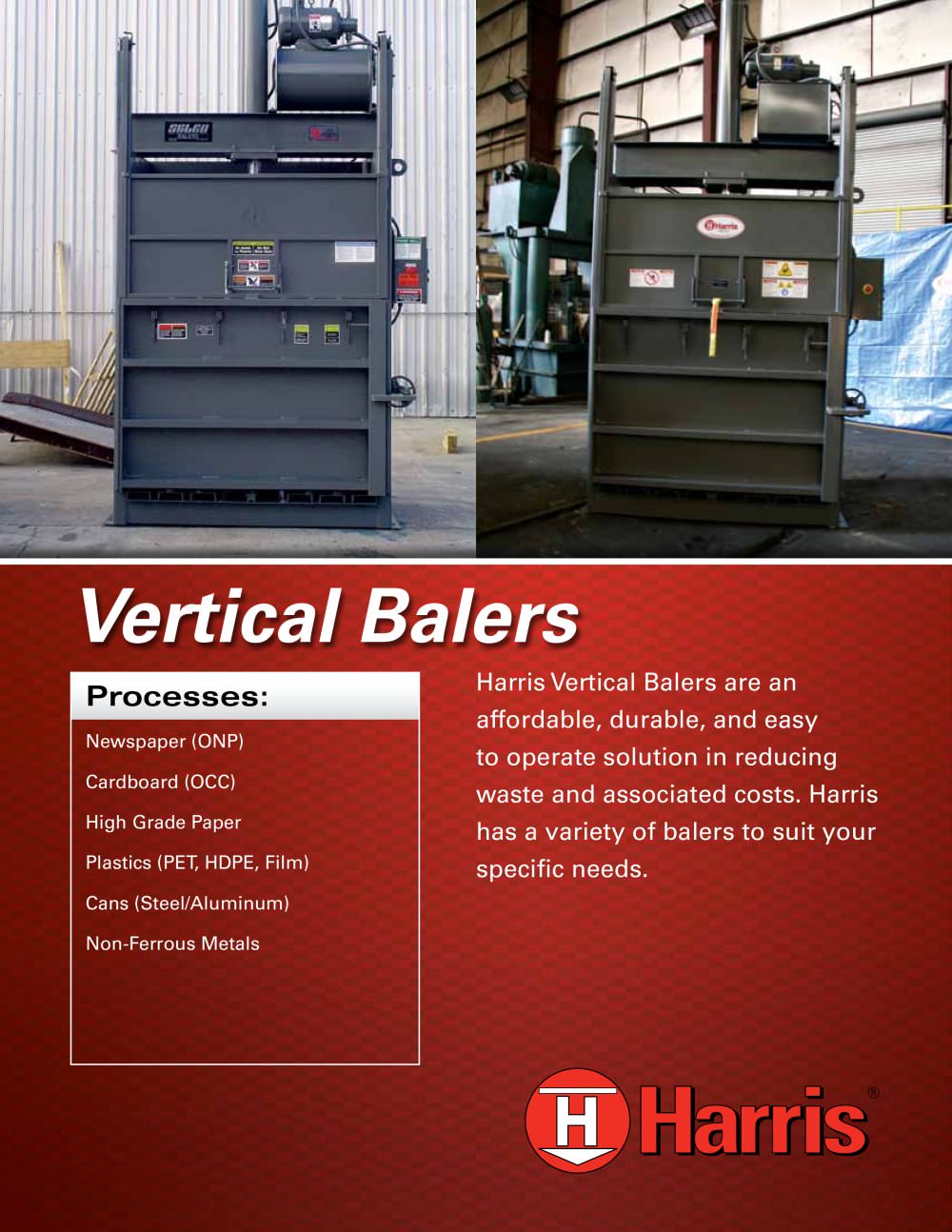

Vertical Balers Processes: Newspaper (ONP) Cardboard (OCC) High Grade Paper Plastics (PET, HDPE, Film) Harris Vertical Balers are an affordable, durable, and easy to operate solution in reducing waste and associated costs. Harris has a variety of balers to suit your specific needs. Cans (Steel/Aluminum) Non-Ferrous Metals

Open the catalog to page 1

Call today for more information *All products and features are subject to change. Photos not necessarily representative of new equipment Width: in.(mm) Feed Opening Height: in.(mm) Hydraulic Pump Capacity Bore: in.(mm) Shipping Weight Varies with Drum Height Stroke: in.(mm) Main Cylinder Platen Force Maximum (lb) Motor Horsepower Cycle Time Height: in.(mm) Width: in.(mm) Length: in.(mm) Bale Size, in baler Model Name Vertical Balers

Open the catalog to page 2

Vertical Balers

Vertical Balers
