TG Brochure

Product catalog summary

Overview: The TG line of ferrous balers is recognized as the industry standard for heavy-duty, high production, and reliable baling systems. These balers are designed to compress materials into a charging box using a three-compression system to produce bales.

Processes: The balers handle soft alloys of stainless sheet, factory clips & skeletons, shapes & wire, tubing, and non-ferrous metals such as copper wire and low alloy aluminum sheet.

Key Features:

Independent Loading Hopper: Allows for independent loading of the next charge while the baler is cycling.
Large Capacity Charging Box: Capacities range from 625 to 950 cu. ft., accommodating high volume light material and large bulky items.
Heavy Duty Structure: Built to withstand tough baling applications, resulting in less downtime and a long operating life.
Solid State Controls: Enhance reliability and simplify operation.
Programmable Controller with Modem: Allows precise operation with diagnostic support.
Operator Interface Terminal (OIT): Enables diagnostics and programming from the operator's station.
High/Low Pressure Hydraulic System: Uses high pressure for force and low pressure for speed.
Hydraulic Vane Pumps: Cost-effective maintenance compared to piston pumps.
Harris Manufactured Hydraulic Cylinders: Feature flame-hardened and polished rods with TFE pistons for durability.
10 Micron Filtration Oil System: Ensures clean operation.
Manufactured in the USA: Ensures quality and reliability.

Support and Service:

In-house Training: Provided for operators.
Qualified Installation Specialist: Available during installation.
Harris Field Service Support: A large team of trained technicians ensures fast and efficient service.
Harris Service Parts: Over $3 million in inventory reduces downtime with most parts available for overnight shipping.

Quality Assurance: TG Balers are designed, manufactured, and tested in Cordele, Georgia, using computer-aided design and manufacturing systems to ensure quality and precision.

Catalog excerpts

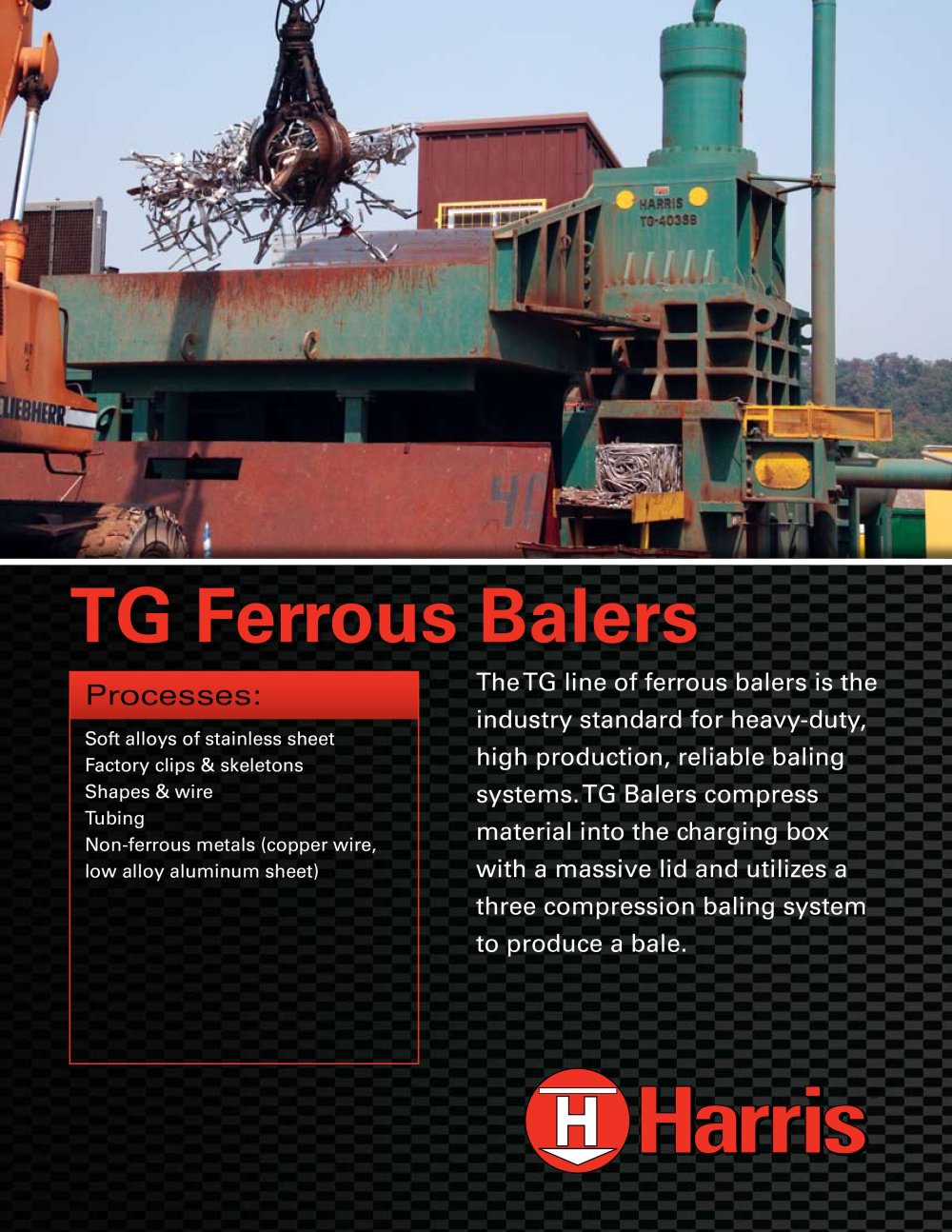

® TG Ferrous Balers The TG line of ferrous balers is the industry standard for heavy-duty, high production, reliable baling systems. TG Balers compress material into the charging box with a massive lid and utilizes a three compression baling system to produce a bale. Processes: Soft alloys of stainless sheet Factory clips & skeletons Shapes & wire Tubing Non-ferrous metals (copper wire, low alloy aluminum sheet)

Open the catalog to page 1

TG Ferrous Balers • Independent Loading Hopper - large capacity loading hopper allows independent loading of the next charge while baler is cycling. • Large Capacity Charging Box - charging box capacities of 625 to 950 cu. ft. (17.6 m3 to 26.9 m3) allows a single charge of high volume light material as well as large bulky items. • Heavy Duty Structure - withstands the toughest baling applications in the industry. This results in less downtime and an extremely long operating life. Baler models weigh between 146 to 438 tons (132.4 to 397.3 tonne). • Solid State Controls provide greater reliability...

Open the catalog to page 2
