HRB Solid Waste Baler

Product catalog summary

Overview: The HRB Solid Waste Balers by Harris are designed for efficient handling of Municipal Solid Waste (MSW) at transfer stations and landfills. These balers produce large bales, enhancing payloads and reducing transportation costs. Baling at the landfill increases cell density and reduces equipment and cover costs.

Specifications:

HRB-1545W: Features a press box of 60” W x 40.5” D x 178.5” L, with a charging box opening of 57” W x 110” L. The hopper opening is 79” W x 132” L. It produces bales weighing 4000-4500 lbs with a volume of 76 cubic ft. The baling cycle is 100 seconds without a door and 120 seconds with a door, achieving an hourly capacity of up to 81 TPH.
HRB-1245W: Features a press box of 55” W x 35.5” D x 171.5” L, with a charging box opening of 52” W x 110” L. The hopper opening is 74” W x 132” L. It produces bales weighing 3000-3500 lbs with a volume of 53 cubic ft. The baling cycle is similar to the HRB-1545W, with an hourly capacity of up to 63 TPH.

Technical Details:

Main system motors for both models are 150 Hp, operating at 1750 Rpm, with a main pump flow of 722 GPM and a maximum system pressure of 4500 PSI.
First compression bore is 16” with a force of 452 tons, while the bale ejector bore is 12” with a force of 170 tons.
The HRB-1545W has a shipping weight of approximately 80 tons, and the HRB-1245W weighs approximately 74 tons.

Contact Information: For more information, contact Harris at 770-631-7290 or 800-373-9131, or visit www.harriswaste.com.

Catalog excerpts

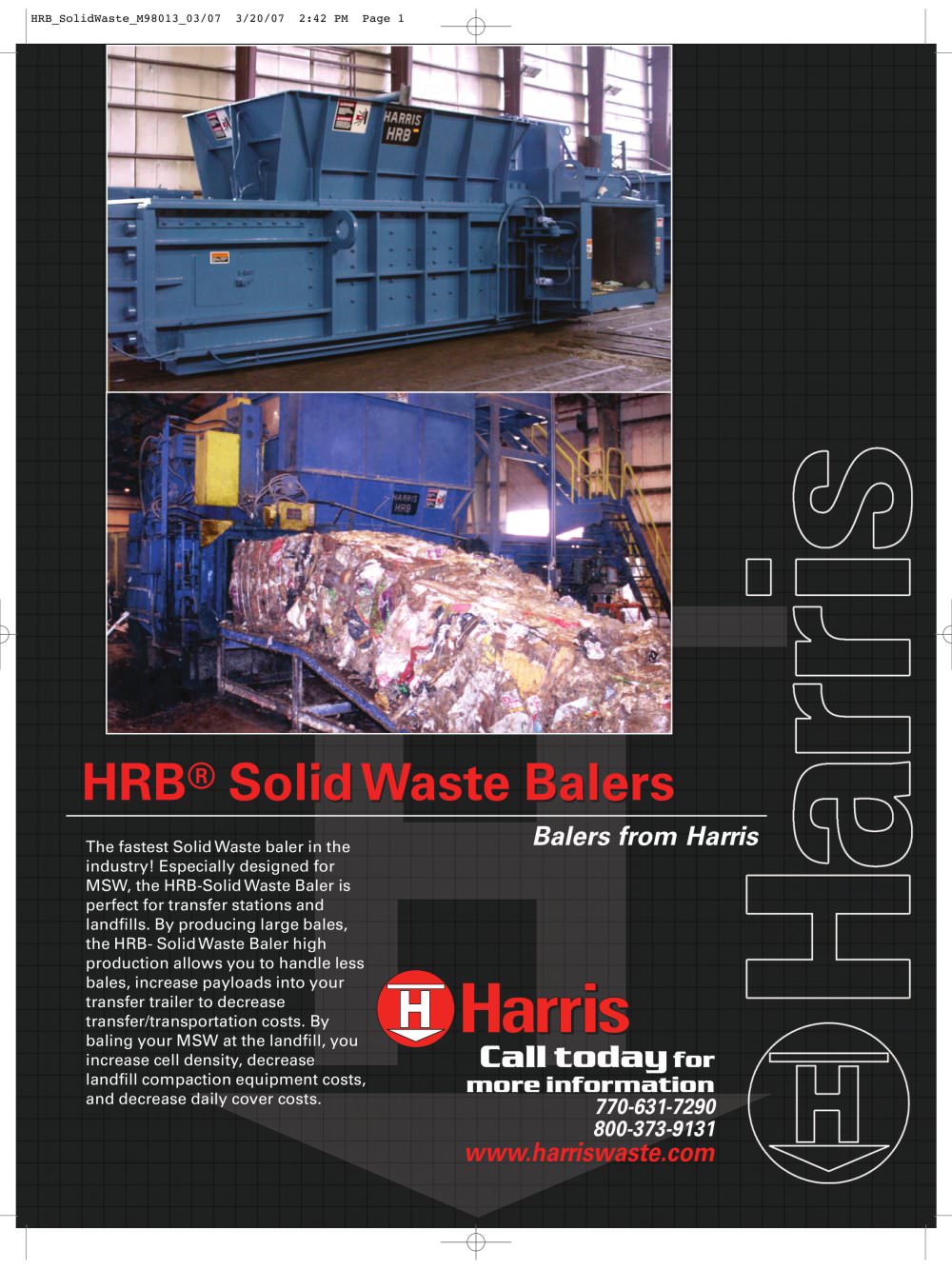

HRB® Solid Waste Balers Balers from Harris Call todayfor more information 770-631-7290 800-373-9131 www.harriswaste.com The fastest Solid Waste baler in the industry! Especially designed for MSW, the HRB-Solid Waste Baler is perfect for transfer stations and landfills. By producing large bales, the HRB- Solid Waste Baler high production allows you to handle less bales, increase payloads into your transfer trailer to decrease transfer/transportation costs. By baling your MSW at the landfill, you increase cell density, decrease landfill compaction equipment costs, and decrease daily cover costs. HRB_SolidWaste_M98013_03/07 3/20/07 2:42 PM Page 1

Open the catalog to page 1

Harris HRB-1545W Press Box Dimensions: 60” W x 401 2” D x 1781 2” L (152cm x 103cm x 453cm) Charging Box Opening: 57” W x 110” L (145cm x 279cm) Hopper Opening: 79” W x 132” L (201cm x 335) Compression Chamber Size: 52” W x 42” D x 60” L (132cm x 107cm x 152cm) Approx. Expanded Bale Size: 58” W x 44” D x 65” L (147cm x 112cm x 165cm) Bale Weight: (Average) 4000-4500 lbs. (1814-2041 kg) MSW average of 25% moisture Bale Volume: 76 Cubic ft. (2.15 Cubic m) Approx. Expanded Bale Volume: 96 Cubic ft. (2.72 Cubic m) Baling Cycle: 1. 100 Seconds (36 Cycles/Hr) W/Out Door 2. 120 Seconds (30 Cycles/Hr.)...

Open the catalog to page 2
