Horizontal Super Wide Mouth

Product catalog summary

Overview: The document describes the features and specifications of Super Wide Mouth Horizontal Balers, designed for use in distribution centers, warehouses, manufacturing facilities, and recycling centers. These balers are characterized by their large feed opening and robust construction, making them suitable for handling large volumes of material.

Structural Features:

Self Aligning Single Tension System: Ensures even force distribution with solid plate construction and self-aligning tension cylinder.
Heavy Duty Bale Chamber: Constructed with 6”x 6”x 3/8” thick steel tubing for enhanced strength.
Main Cylinder Support: Integrated into the baler structure to reduce stress on welds.
Uni-Body Side Construction: Provides uniform load distribution, minimizing stress on welds.
Replaceable AR 500 wear liners and adjustable shear blades with four knife edges.

Hydraulic Power Unit: Offers a comprehensive range of power unit sizes with an operating pressure of 3000 psi.

Inserter and Twister: Features tube steel construction and a hinged twister assembly for easy access.

Safety System:

Category 3 Safety System: Includes safety monitoring relay and magnetic safety interlock switches on access doors.
Dual trapped key interlock on hopper access door, ensuring safety during maintenance.

Controls: Equipped with a touch screen color display and programmable logic controller, offering 15 material selections and programmable settings.

Contact Information: For more information, contact via phone at 770-631-7290 or 800-373-9131, or visit www.harrisequip.com.

Catalog excerpts

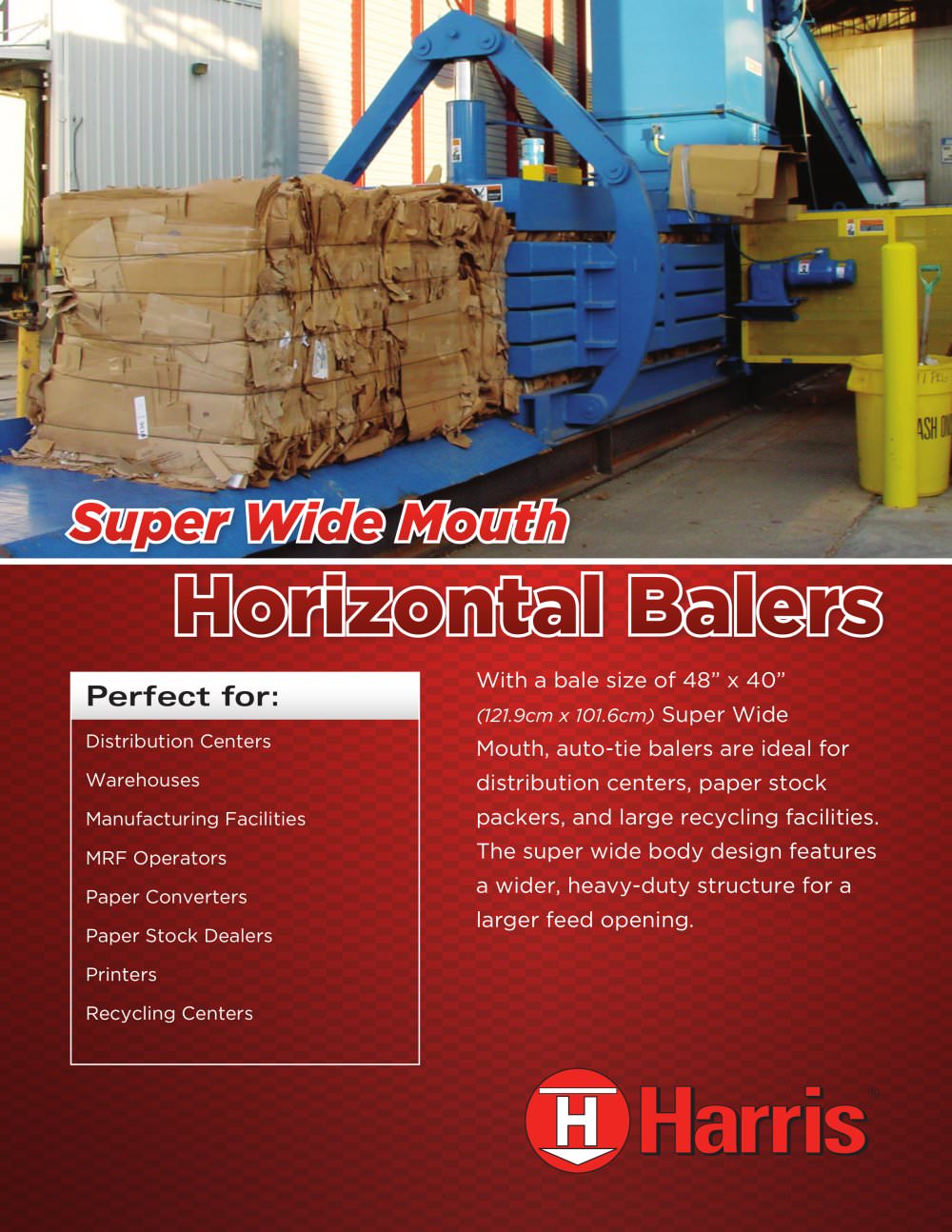

® With a bale size of 48” x 40” (121.9cm x 101.6cm) Super Wide Mouth, auto-tie balers are ideal for distribution centers, paper stock packers, and large recycling facilities. The super wide body design features a wider, heavy-duty structure for a larger feed opening. Perfect for: Distribution Centers Warehouses Manufacturing Facilities MRF Operators Paper Converters Paper Stock Dealers Printers Recycling Centers Super Wide Mouth Horizontal Balers

Open the catalog to page 1

Super Wide Mouth Horizontal Balers ® Call today for more information 770-631-7290 800-373-9131 www.harrisequip.com *All products and features are subject to change. Photos not necessarily representative of new equipment Harris ©2011 - SWM - Horizontal11 - Structural • Self Aligning Single Tension System - Robust heavy duty solid plate construction and self aligning tension cylinder and members provide even distribution of forces on all sides of the bale. Support members are interlocked into baler structure to eliminate high stress points in welds. • Heavy Duty Bale Chamber – Massive 6”x 6”x 3/8”...

Open the catalog to page 2
