BSH Shears

Product catalog summary

Overview: The Harris BSH Shears are designed with an advanced hydraulic system and features that facilitate easy operation and maintenance. Key components include a positive knife adjustment, strategically placed piping, and protected lube lines.

Processes: The BSH Shear is suitable for processing auto scrap, steel mill scrap, pipe and plate, No. 1 and No. 2 heavy melting scrap, and selected sections of freight cars and ship scrap.

Key Features:

Stall Protection System: Ensures safety and efficiency during operation.
External Gib and Blade Adjustments: Allows for easier and safer adjustments without shimming.
Replaceable Liners: Extends the life of the shear frame and charge box.
Charge Box Cylinder Mounting: Provides mechanical advantage in folding force.
Flame Hardened Cylinder Rods: Polished and ground for durability, eliminating chrome scratching or chipping.
Heavy Duty Construction: Ensures long-term durability and proven life.
10 Micron Filtration: Maintains a cleaner oil system.
Single or Double Feed Hopper: Allows feeding from both sides and material segregation.
High/Low Pressure Hydraulic System: Offers higher oil flow at lower pressures for greater ram speed.
Hydraulic Vane Pumps: Designed for up to 4500 PSI, reducing shock and extending pump life.
Tuck-&-Fold Compression Box: Efficiently processes bulky materials and large volumes of lightweight materials.
Long Compression Box: Accommodates longer materials, reducing preparation time.
Through Bolts on Hinges: Simplifies maintenance and repair.
Dual Cylinders on Compression Box: Enhances stability and force distribution.
Efficient Power Unit: Requires less power while maintaining high production rates.
Programmable Controller/Solid State Controls: Increases reliability and simplifies operation.
PanelView HMI: Allows operators to run diagnostics and program features from the control station.
Field Service Support: Harris provides a team of trained technicians for efficient service response.

Additional Information: All equipment is manufactured, pre-assembled, and tested before shipment. For more details, contact Harris at 770-631-7290 or 800-373-9131, or visit www.harrisequip.com.

Catalog excerpts

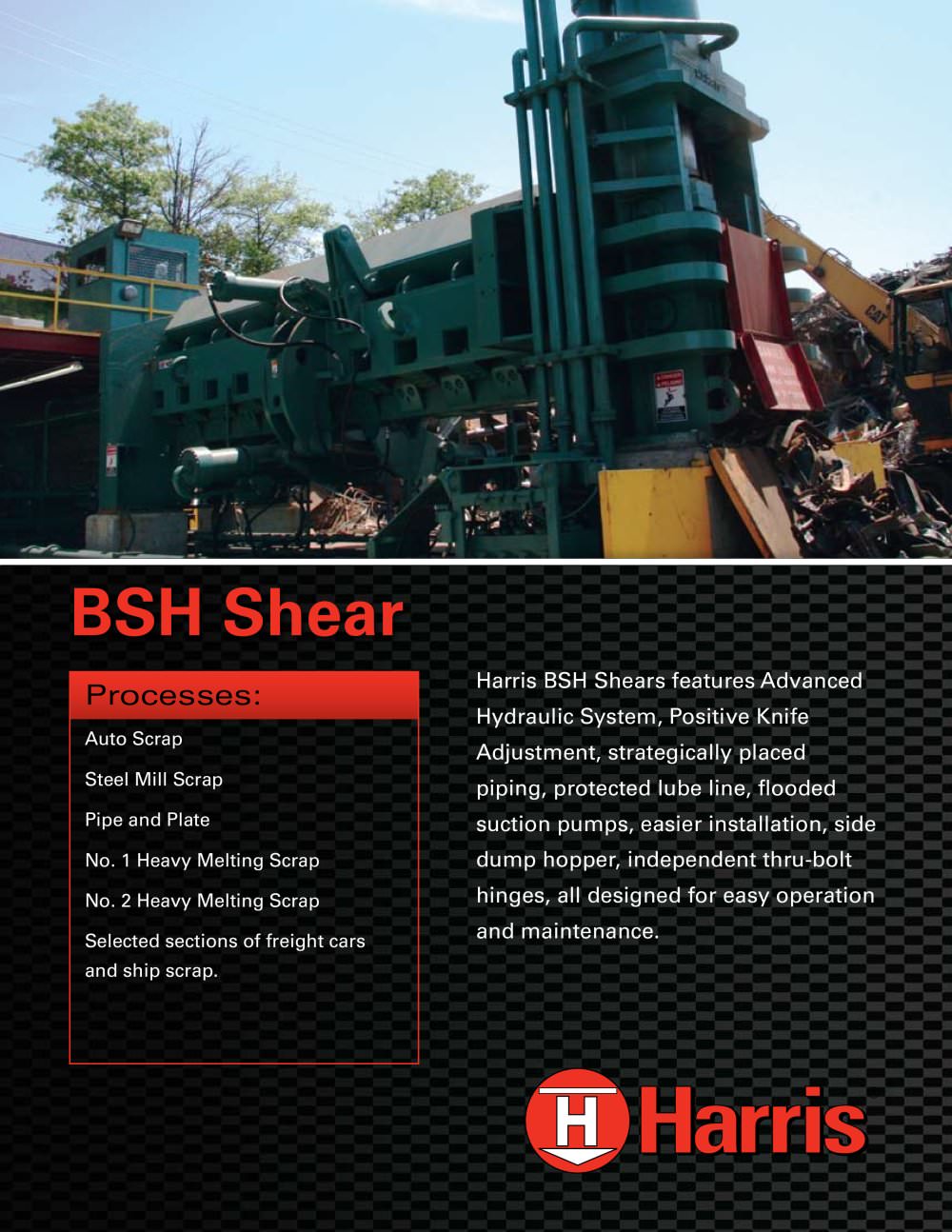

® BSH Shear Harris BSH Shears features Advanced Hydraulic System, Positive Knife Adjustment, strategically placed piping, protected lube line, flooded suction pumps, easier installation, side dump hopper, independent thru-bolt hinges, all designed for easy operation and maintenance. Processes: Auto Scrap Steel Mill Scrap Pipe and Plate No. 1 Heavy Melting Scrap No. 2 Heavy Melting Scrap Selected sections of freight cars and ship scrap.

Open the catalog to page 1

BSH Shear • Stall Protection System • External gib and blade adjustments - no shimming; easier and safer adjustments. • Replaceable liners in shear frame and charge box - longer machine life. • Charge box cylinder mounting - mechanical advantage in folding force. • Flame hardened, polished, and ground cylinder rods - no chrome to scratch or chip. • Heavy duty construction - many years of proven life and durability. • 10 micron filtration - cleaner oil system. • Single or Double Feed Hopper - Can feed from both sides of box - can segregate materials. • High/Low Pressure Hydraulic System - Harris...

Open the catalog to page 2

BSH Shears

BSH Shears
