Badger

Product catalog summary

Overview: The Harris Badger® is a versatile, narrow box baler designed for efficiency and reliability at an economical price. It is capable of producing high-density bales with the highest baling force in its class.

Processes: The baler can process a variety of materials including Newspaper (ONP), Cardboard (OCC), High Grade Paper, Solid Waste (MSW), Plastics (PET, HDPE, Film), Cans (Steel/Aluminum), White Goods, and Non-Ferrous Metals.

Standard Features:

Laser positioning system for ram and bale exit door movements, ensuring reliable and low-maintenance operation.
System operating pressure of 3500 PSI (241 bars).
Main cylinder with 10 in. (254mm) diameter, providing 137 tons (124.2 tonnes) of force and 223 PSI (15.7 kg/cm2) ram face pressure.
Eject cylinder with 7 in. (178mm) diameter, providing 67 tons (60.8 tonnes) of force and 85 PSI (6.0 kg/cm2) ram face pressure.
Harris Smartknife™ System and high-quality abrasion-resistant material replaceable liners.
Multi-Material controller with phone modem, Operator Interface Display (OIT), diagnostics, and English/Spanish display.
Heavy-duty main cylinder with Harris’ designed heavy wall cylinder tube, flame-hardened cylinder rod, and TFE piston seal.
Full automatic operation for most materials and heavy-duty uni-body frame construction.
Choice of serrated or flat shear knife and penetrating main ram with 60% penetration into the bale chamber.
Plug bale compatible and Auto Tier with 11 or 12 gauge high tensile wire.
3 phase, 60 Hz, 460 V electrical system and Harris standard warranty.

Options:

Harris Combo Door™.
Main cylinder with 11 in. (279mm) diameter, providing 166 tons (150 tonnes) of force and 269 PSI (18.9 kg/cm2) ram face pressure.
Eject cylinder with 8 in. (203mm) diameter, providing 88 tons (79.8 tonnes) of force and 110 PSI (7.7 kg/cm2) ram face pressure.
Hopper extension up to 92 in. (2438mm) high.
Bale discharge table, elevated operator’s platform, and climate-controlled operator’s cab.
Feed conveyor(s), Wye Delta main motor starting, and CE rating.
Alternative power unit locations and options for other languages and electrical voltages available on request.

Contact Information: For more information, contact Harris at 770-631-7290 or 800-373-9131, or visit www.harrisequip.com.

Catalog excerpts

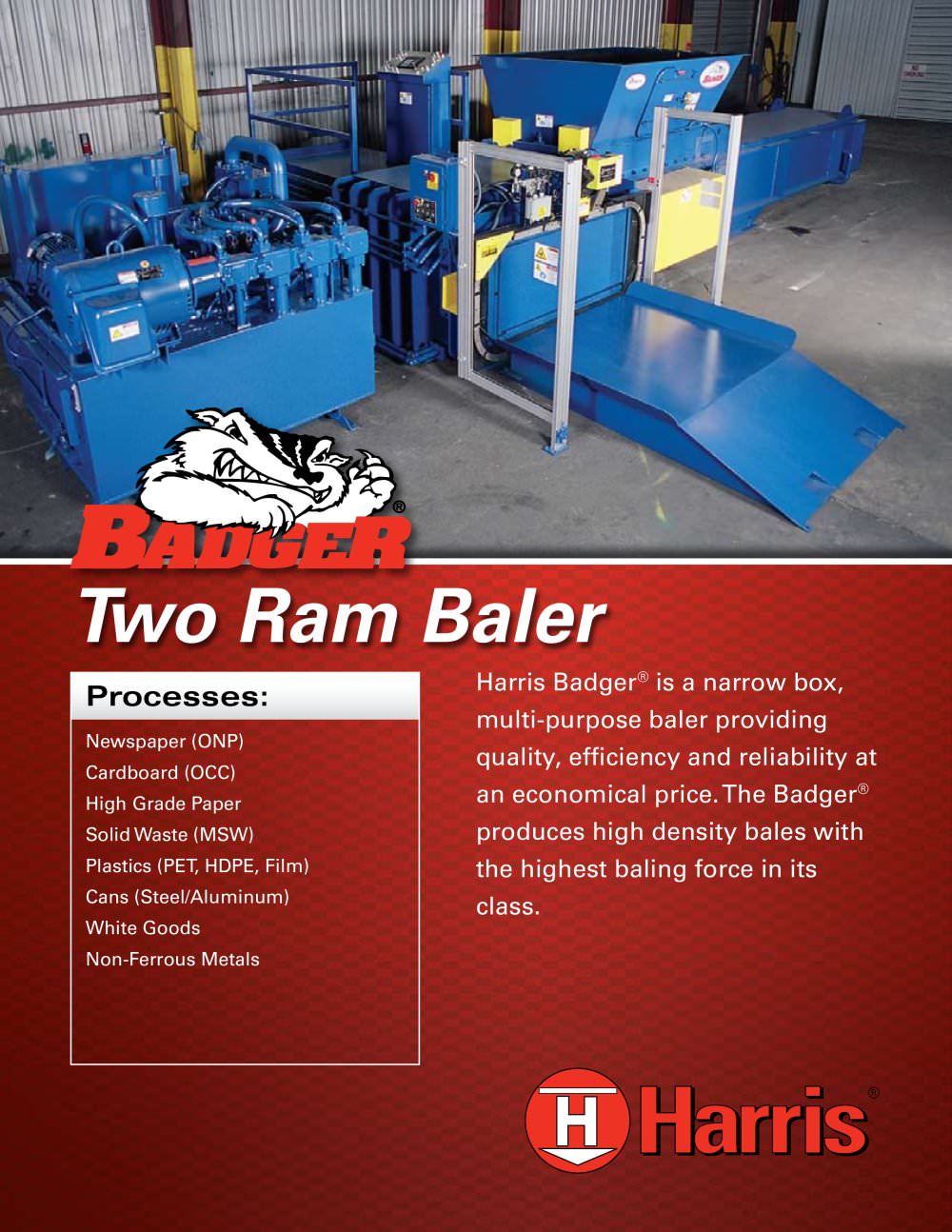

® Two Ram Baler Harris Badger® is a narrow box, multi-purpose baler providing quality, efficiency and reliability at an economical price. The Badger® produces high density bales with the highest baling force in its class. Processes: Newspaper (ONP) Cardboard (OCC) High Grade Paper Solid Waste (MSW) Plastics (PET, HDPE, Film) Cans (Steel/Aluminum) White Goods Non-Ferrous Metals

Open the catalog to page 1

Standard Features: • Laser positioning system for all ram and bale exit door movements, provides a reliable and virtually maintenance free operation. • 3500 PSI (241 bars) system operating system pressure. • 10 in. (254mm) main cylinder, 137 tons (124.2 tonnes) of force, 223 PSI (15.7 kg/cm2) ram face pressure. • 7 in. (178mm) eject cylinder, 67 tons (60.8 tonnes) of force, • 85 PSI (6.0 kg/cm2) ram face pressure • Harris Smartknife™ System. • High Quality Abrasion Resistant material replaceable liners including tongue and groove floor liners. • Multi-Material controller with: • Phone modem •...

Open the catalog to page 2
