HI 3600 Multi-Channel Machine Monitor

Product catalog summary

Overview

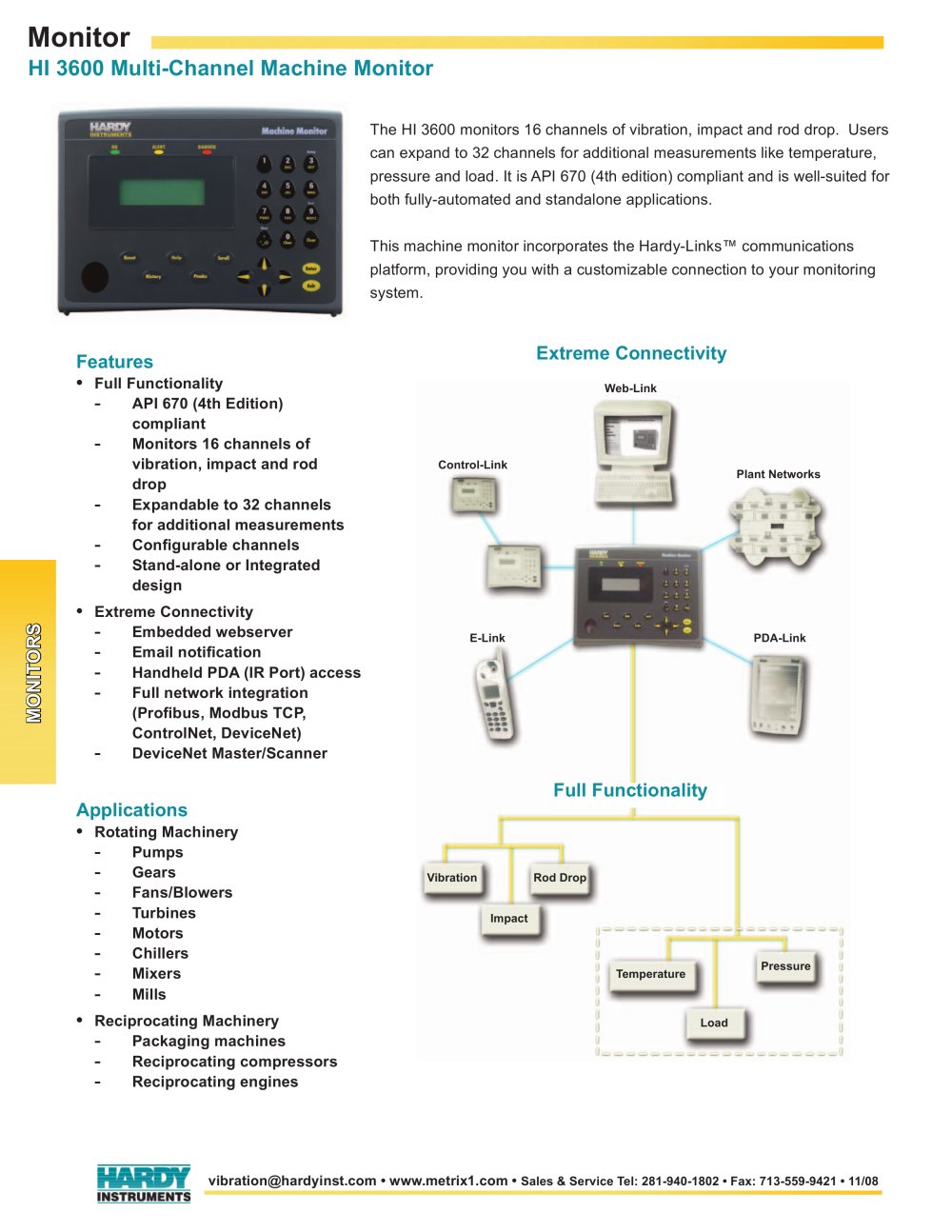

The HI 3600 is a multi-channel machine monitor designed to track vibration, impact, and rod drop across 16 channels, expandable to 32 for additional measurements such as temperature, pressure, and load. It complies with API 670 (4th edition) and is suitable for both automated and standalone applications. The system features the Hardy-Links™ communications platform for customizable connectivity.

Features

Full Functionality: API 670 compliant, monitors 16 channels, expandable to 32, configurable channels, and supports both standalone and integrated designs.
Extreme Connectivity: Includes an embedded webserver, email notifications, PDA access, and full network integration with protocols like ProfiBus, Modbus TCP, ControlNet, and DeviceNet.

Applications

Rotating Machinery: Suitable for pumps, gears, fans, turbines, motors, chillers, mixers, and mills.
Reciprocating Machinery: Ideal for packaging machines, reciprocating compressors, and engines.

Specifications

Display: 4 line x 20 character backlit LCD with LED indicators for OK, Alert, and Danger.
Update Rate: 55 times per second.
Standard Interfaces: Ethernet, DeviceNet master scanner, and IR wireless connection to Palm OS PDAs.
Input Option Cards: Includes cards for impact, vibration, displacement & position, and rod drop measurements.
Tach Inputs: Two available, supporting magnetic reluctance or eddy current probes.
Outputs: Optional relays for OK, Alert, and Danger statuses.
Power Requirements: 36W, with options for AC and DC power inputs.
Operating Temperature: Standard 0°C to 50°C, optional -20°C to 70°C.
Approvals: UL, CUL, and Hazardous (Class 1, Div 2).

Models

HI 3600 Integrated Monitoring System: Includes baseboard, controller card, option and input card slots, and standard Ethernet and DeviceNet interface.
HI 3601 Stand-Alone Monitoring System: Similar to the integrated system but includes an enclosure, keypad, and display.

Catalog excerpts

Operating Temperature: Standard: 0 װC to 50Cз Optional: -20C to 70аC Storage Temperature: -20C to 70аC Approvals: UL, CUL, Hazardous (Class 1, Div 2) Options: ControlNet ׷ Profi bus Hardy Modbus TCP ׷ Local Relay Outputs - System OK, Alert and Danger Status Input Option Cards ׷ DeviceNet I/O Modules - Temperature, Analog In/Out, Discrete In/Out > HI 3000 Series Option Cards (2 available slots): ControlNet interface ׷ Profi bus interface > Outputs: Main Power Requirement: Display (standard on HI 3601) : Tach Inputs: ׷ Optional OK, Alert, and Danger relays 3A@30VDC ׷ 4A@125VAC/250VAC Power: 36W...
