VDI Tool Presetter System
2Pages

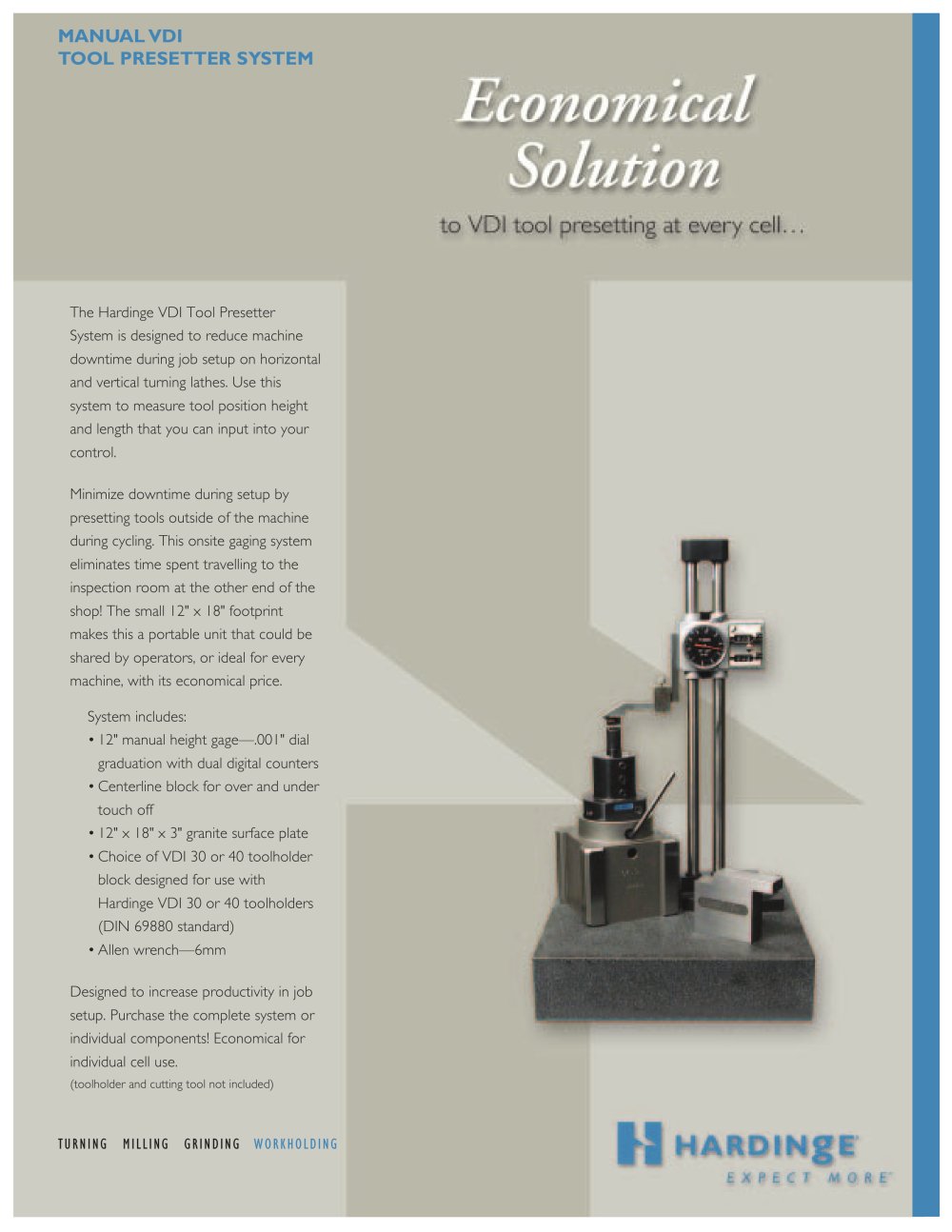

The Hardinge VDI Tool PresetterSystem is designed to reduce machine downtime during job setup on horizontal and vertical turning lathes. Use this system to measure tool position height and length that you can input into your control.Minimize downtime during setup bypresetting tools outside of the machine during cycling. This onsite gaging system eliminates time spent travelling to the inspection room at the other end of the shop! The small 12" x 18" footprint makes this a portable unit that could be shared by operators, or ideal for every machine, with its economical price.System includes:12" manual height gage՗.001" dialgraduation with dual digital countersCenterline block for over and undertouch offՕ12" x 18" x 3" granite surface plate Choice of VDI 30 or 40 toolholderblock designed for use with Hardinge VDI 30 or 40 toolholders (DIN 69880 standard)ՕAllen wrench6mmDesigned to increase productivity in jobsetup. Purchase the complete system or individual components! Economical for individual cell use. > (toolholder and cutting tool not included) TURNING MILLING GRINDING WORKHOLDING >

12" Height Gage VDI 30 Toolholder Block VDI 40 ToolholderBlock > 4.875" wide x 4.875" long1.1813"/30mm ID bore 4.875" wide x4.875" long 1.5750"/40mm ID bore Minimize downtime during jobsetup by presetting VDI tools outside of the machine during cycling. Measures height and length of tool position. Available as a complete package with choice of VDI 30 or VDI 40 toolholder block, or as individual components as listed below. CenterlineBlock AllenWrench > Tool holder and cutting tooling suppliedby customer. 12" x 18" GraniteSurface Plate > DescriptionPart NumberPrice VDI Tool Presetter System...
