The Hardinge ID Gripping Advantage
Hardinge's Sure-Grip® Expanding Collet Systems are designed to tackle challenging machining tasks with precision and a wide gripping range. These systems are compatible with various machine brands and styles, including Collet-Style, Spindle-Mount Style, and Center Arbors, facilitating reduced changeover time and quick centering.

Collet-Style Systems
These systems, such as 5C, 16C, and 3J, mount directly into the spindle or collet adapter. They feature a solid, one-piece body and arbor combination, allowing for quick changeover between collet sizes. The systems ensure true parallel gripping and include a safety stop to prevent over-expansion.

Spindle-Mount Style Systems
Available in A2-5, A2-6, and A2-8, these systems mount directly onto the machine spindle without requiring centering adjustments. Changeover between arbor sizes is quick, taking approximately five to seven minutes.

Center Arbors for Precision Machining
Designed for grinding machines and lathes, these arbors can be held between centers or chucked on one end. They feature a precision locating shoulder and diameter for custom workpiece stops, maximizing productivity by allowing simultaneous loading and machining.

Wide Gripping Range
Sure-Grip Expanding Collets are available in 1/64" increments and metric sizes, with a range of +.015" to -.001" from the specified size, eliminating the need for decimal sizes.

Safety and Interchangeability
The systems include a built-in safety feature to prevent over-expansion and allow the use of interchangeable collets across different applications, enhancing versatility.

Dead-Length® Work Stops
These work stops ensure exact part length control by locating the part against the arbor face or a machineable work stop, resulting in stable parts with better surface finishes and closer tolerances.

Draw Bar Adapters
These adapters allow the Sure-Grip Expanding Collet System to be used on various spindles, including Hardinge and ANSI/ISO A2 series, with custom machining available for specific spindle requirements.

Frequently Asked Questions
The document addresses common queries, such as the necessity of work stops, collet size variations, and the potential for damage from excessive draw bar force.

Specifications and Assemblies
Detailed specifications for 5C, 16C, and 3J collet-style assemblies are provided, including dimensions and part numbers for various components.

Overview: This document is a technical brochure from Hardinge Inc., detailing their range of workholding solutions for various machine types, including lathes, mills, and grinding machines. It emphasizes the precision and reliability of Hardinge products, aiming to enhance productivity and value.

Product Specifications: The document lists various expanding collets with specific sizes and part numbers. These include #400, #500, and #600 Expanding Collets, each with detailed size measurements in fractions of an inch and corresponding part numbers.

Product Range: Hardinge offers a comprehensive range of products including:

Spindle Tooling for Manual & CNC Lathes
Collets for Automatics, Turret Lathes & Rotary Transfer Machines
Swiss-Type Collets, Guide Bushings & Barloader Collets
hQC® Quick-Change Collet Systems
Sure-grip® Expanding Collet Systems
hCAC® Collet Adaptation Chucks
Sure-grip® 3-Jaw Power Chucks
Chuck Jaws
Toolholder Collets, Bushings & Tool Holders
Precision CNC Tooling for Mills
Collet Blocks
5C Rotary Indexing Products
Custom Workholding
Industrial Products
Machine Tools

Contact Information: Hardinge Inc. is located at One Hardinge Drive, P.O. Box 1507, Elmira, New York 14902-1507, USA. They can be contacted via phone at 800-843-8801 or 607-378-4022 in the USA, and 800-468-5946 in Canada. Fax number is 607-734-3886. Orders can be placed online at www.hardingetooling.com, and more information is available at www.hardinge.com. Email inquiries can be sent to [email protected].

Disclaimer: All specifications are subject to change without notice. Trademarks indicated by ® and ™ are owned by Hardinge Inc. The brochure is identified as #70G and was printed in the USA in June 2007.

Catalog excerpts

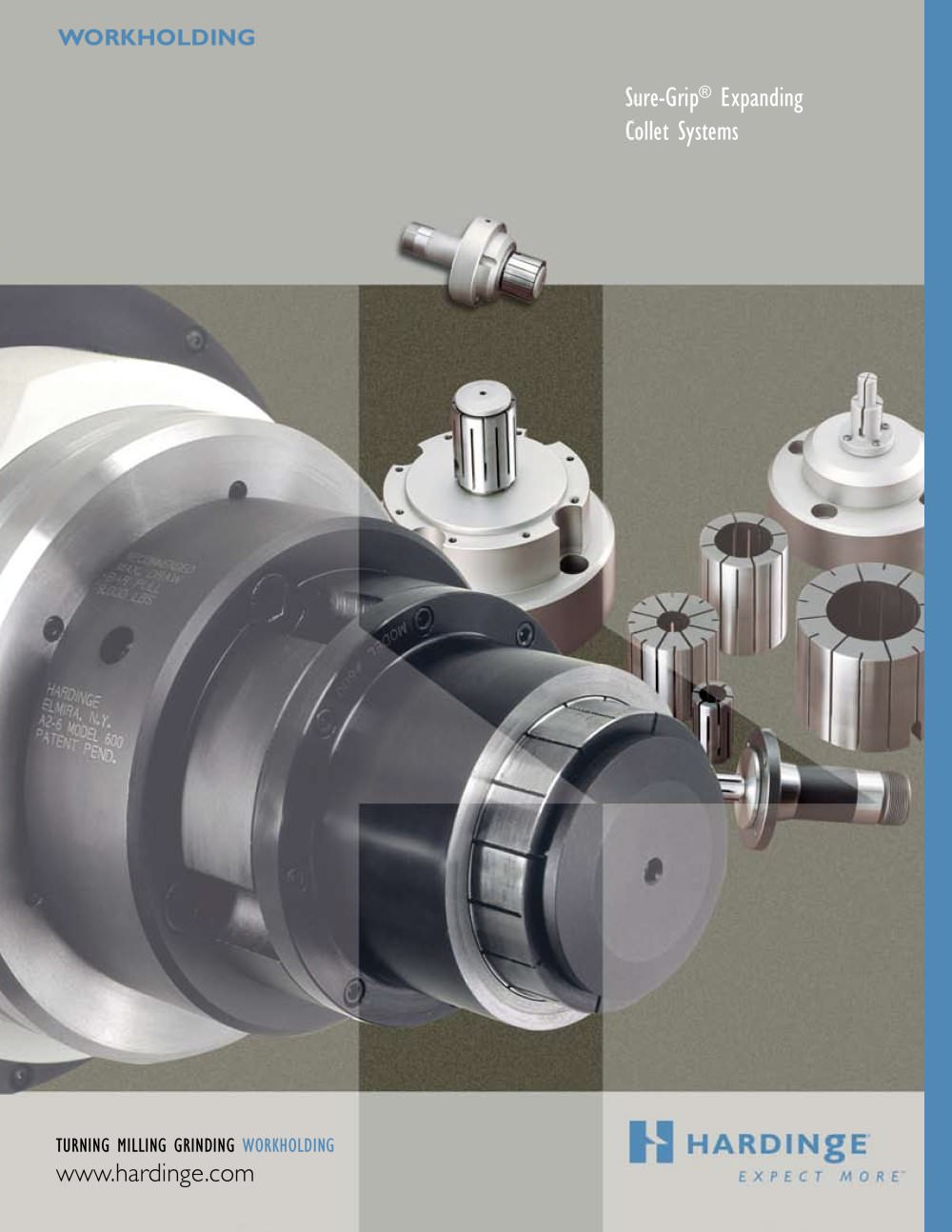

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-1

TURNING MILLING GRINDING WORKHOLDING >

Open the catalog to page 1

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-4

The Sure-Grip > Arbor assembly is designed to be used on grinding machines and lathes. The arbor can be held between centers, or chucked on one end and supported by a center on the other end. This expanding arbor assembly style is manually adjusted.The arbors have a precision locating shoulder and diameter so you can fabricate custom workpiece stops.Maximize your productivity by using two arbors. While one part is running, load the next part on the second arbor. Then you can load another arbor into the spindle when the first part is done. This is a big time saver when chucking one end of the...

Open the catalog to page 4

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-6

Face of Arbor used as the Work Stop Workpiece Workpiece Work Stop > Work Stop Work Stop > Workpiece Workpiece Custom Work Stop Work Stop Workpiece Workpiece >

Open the catalog to page 6

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-7

3J Collet-Style Hardinge > ή is the expert when it comes to exact part length control. We patented the first Dead-Length 5C and 16C collets used for high-production manufacturing.The Sure-Grip > Threaded Spindle Mount Expanding Collet has true part length control built into its design. The workpiece locates against the face of the arbor or the face of the work stop to ensure no longitudinal end movement.All expanding collets, except Model #100, take a machineable work stop that bolts directly to the expanding collet arbor or the machineΒs spindle, ensuring no end movement of the workpiece. The...

Open the catalog to page 7

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-9

Hex KeyLimit RingA = Collet Arbor AssemblyShort / Long*Collet Assemblies Collet & Screws (3) "A" Ζ Collet Working Range Model Part Number* Arbor Assembly > 1 ⁄ > 8 " to > 1 ⁄ > 2 " (3.17 to 12.70mm) 5C-100S 1833-00-00-000000 1869-00-00-000100 > 1 ⁄ > 8 " to > 1 ⁄ > 2 " (3.17 to 12.70mm) 5C-100L 1833-00-00-100000 1869-00-00-000100 > * Expanding collet assemblies are not included in collet arbor assemblysee page 27 for complete list. Collets are machined to size by the customer in the Model #100 series. Set of 3 collet screws only ז part number 0300108. *ColletDraw PlugA = Collet Arbor Assembly...

Open the catalog to page 9

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-10

From Spindle Face.718" (18.24).312" (7.93)BGCA Ref.DEF Expanding collet From Spindle Face.853" (21.67) BCADEFJIKHG BCADEJIKG Model #100Model #200, 250, 300Model #400, 500 > ThreadedTapered L M N O P Part Number Threaded-Nose 5.250" 3.000" 4.124" .090" .187" 7887-00-00-400500 Stop Adapter (133.35) (76.2) (104.75) (2.29) (4.75) Tapered-Nose 5.250" 3.000" 4.124" .090" .187" 7889-00-00-400500 Stop Adapter (133.35) (76.2) (104.75) (2.29) (4.75) > LMNO from Spindle FacePLMNPO from Spindle Face Millimeters in parentheses.Note: Spanner Wrench for Work Stop Adapters Part Number: 460-0009189 10 >

Open the catalog to page 10

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-18

Short / Long*Collet Assemblies(sold separately) A2-5 Draw Tube Adapter** for other brand CNC lathes Hardinge 16C Adapter Hex Key A = Spindle Arbor AssemblyScrews Collet & Screw **CNC Lathe Hardinge "A" Ζ Collet Working Range Model Part Number* Draw Tube Adapter 16C Adapter Arbor Assembly > 1 ⁄ > 8 " to > 1 ⁄ > 2 " (3.17 to 12.70mm) A2-5-100S 1833-00-00-000000 7875-00-00-100200 7873-00-00-100200 1845-00-00-000100 > 1 ⁄ > 8 " to > 1 ⁄ > 2 " (3.17 to 12.70mm) A2-5-100L 1833-00-00-100000 7875-00-00-100200 7873-00-00-100200 1845-00-00-000100 > * Expanding collet assemblies are not included in collet...

Open the catalog to page 18

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-21

Hardinge 16C, 20C & 25C Adapter **A2-6 Draw Tube Adapter for other CNC Lathes Hardinge TwinTurn A = Spindle Arbor Assembly*ColletDraw PlugWork Stop Assembly ή B65 Adapter Screws Collet CNC Lathe Hardinge Talent 20C Adapter Hardinge TT " A" Spindle Work Stop Model Working Range Part No.* Adapter** 8/52 Adapter 25C Adapter B65 Adapter Arbor Assembly Assembly > *** A2-6-300 1" to 1.515" 1837-00-19 7879-00-00-000300 7879-00-90-852300 7877-00-00-000300 7917-00-00-000300 1857-00-00-000300 1855-00-00-000300 (25.40 to 38.48mm) 7919-00-00-000300 A2-6-400 1 > 1 ֢D > 2 " to 2.265" 1839-00-19 7879-00-00-000400...

Open the catalog to page 21

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-22

Model #200 - 600 > Ref. from Spindle Face DHGJ B C FEIK A Spindle Face Dimension .620" (15.75)

Open the catalog to page 22

Sure-Grip Expanding Collet Systems - Collet-style & Spindle Mount-24

A = Spindle Arbor AssemblyCollet*Draw PlugWork Stop AssemblyHardinge20C & 25C Adapter Model #300 - 600 > ScrewsA2-8 Draw Tube Adapter** for other CNC Lathes Collet CNC Lathe Hardinge Talent Hardinge "A" Ζ Spindle Work Stop Model Working Range Part No.* Adapter** 10/78 Adapter 25C Adapter Arbor Assembly Assembly*** A2-8 #300 1" to 1.515" 1837-00-19 7883-00-00-000300 7875-00-90-107300 7881-00-00-000300 1879-00-00-000300 1855-00-00-000300 (25.40 to 38.48mm) A2-8 ֖ #400 1 > 1 ⁄ > 2 " to 2.265" 1839-00-19 7883-00-00-000400 7875-00-90-107400 7881-00-00-000400 1879-00-00-000400 1855-00-00-000400 (38.10...
