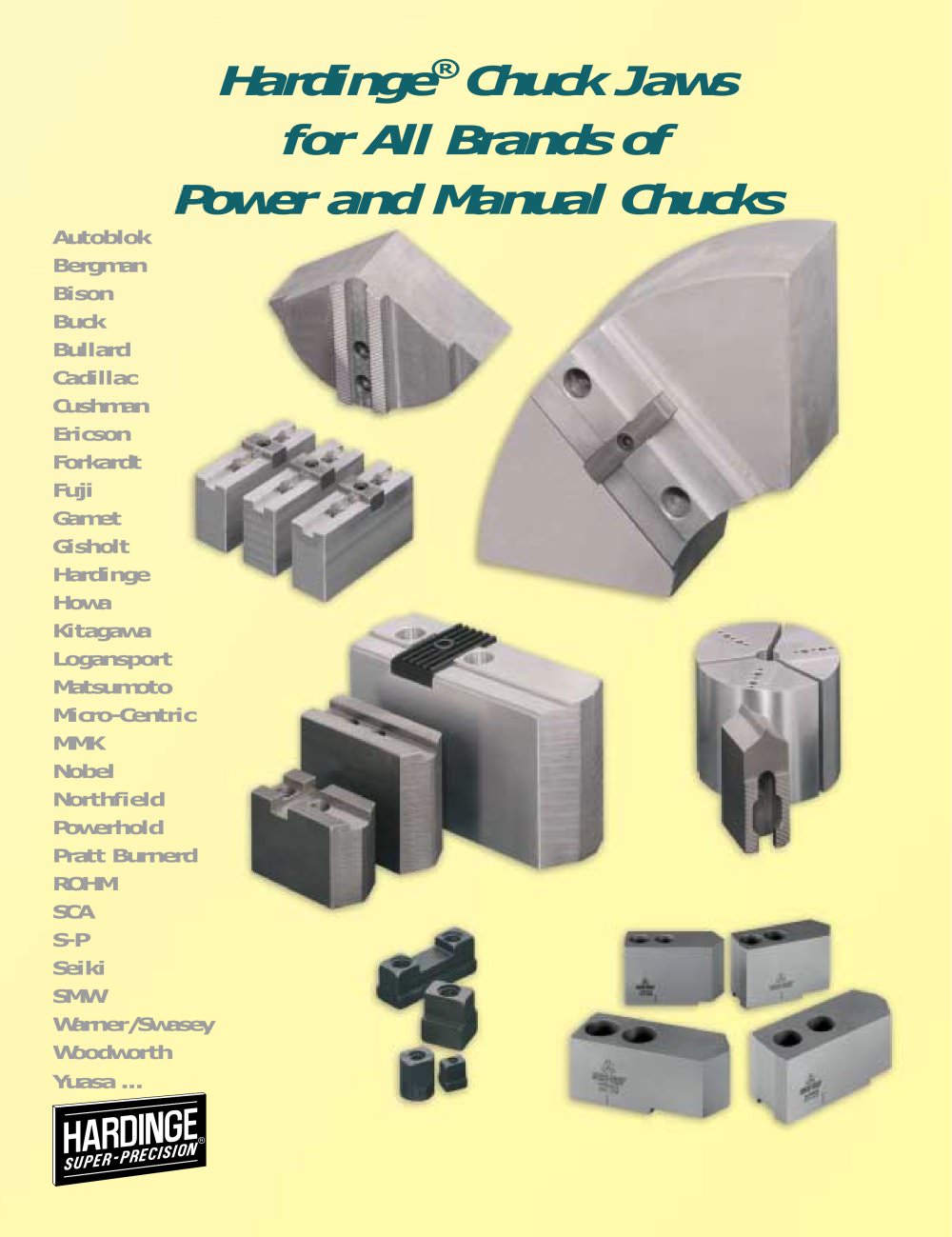

Hardinge® Chuck Jaws

Product catalog summary

Overview: The document is a brochure from Hardinge Inc., detailing their range of chuck jaws and workholding products for various brands of power and manual chucks. It includes specifications, product offerings, and ordering information.

Specifications: Hardinge chuck jaws are made from 6061 T-6 condition aluminum and 1018 Cold Rolled Steel, with detailed dimensions provided. Various styles are available, including American Standard Tongue and Groove and Metric Tongue and Groove.

Product Offerings: Hardinge offers a wide range of workholding products, including spindle tooling for manual and CNC lathes, expanding collet systems, and precision tool holding systems. Each product category is associated with a specific brochure number for further details.

Ordering Information: Customers in the USA and Canada can place orders via toll-free numbers, while international customers can use a standard phone line. Fax and internet ordering options are also available.

Manufacturing Facilities: Hardinge has manufacturing facilities in Elmira, New York, USA; Shanghai, China; Exeter, England; St. Gallen, Switzerland; and Nan Tou City, Taiwan, indicating their global presence.

Table of Contents: The document includes a comprehensive table of contents listing various styles of jaws and accessories, categorized by chuck brand and type.

Key Data from Tables: Tables provide detailed measurements for each jaw type, including width, height, length, groove, tongue, spacing, bolt, nose type, and weight, crucial for selecting appropriate jaws for specific applications.

Procedures and Recommendations: Recommendations include reducing maximum RPM when using oversized jaws and specifying material when ordering, with options for steel and cast iron.

Quick-Change Sure-Grip Chucks Overview: Detailed specifications and features of Hardinge Sure-Grip Quick-Change Chucks are provided, designed for efficient and precise machining operations.

Conversion Kits: Available for 6", 8", 10", and 12" Hardinge Sure-Grip Power Jaw Chucks, allowing for easy adaptation and enhanced functionality.

4-Jaw Chucks: Made from A319 Cast Aluminum, specified for various sizes with details on dimensions and weight.

Collet Adaptation Chucks: Highlighted for their ability to convert jaw chuck-style lathes into collet lathes, offering higher precision and production efficiency.

Additional Products: References additional Hardinge products, including expanding collet systems and precision tool holding systems.

Conclusion: Hardinge positions itself as a comprehensive resource for workholding and industrial products, emphasizing their experience and confidence in their products, which are used in their own manufacturing processes.

Catalog excerpts

Made with A713 (Tenzaloy > ) Aged to T-6 Condition SPECIFICATIONS (inchesΗunless specified otherwise) Chuck SizeModel No.Part No.DiameterSegmentWeight (lb) Master Plates make machininglarge thin-walled parts easy! (2nd no. denotes size) Diameter RangeSet of 310 or 12 18-10-MPSC-00010991818 OD x 2 ID45 They replace face plate fixtures and makea universal fixture out of your chuck. 18-12-MPSC-00011001818 OD x 2 ID4524-12-MPSC-00011022424 OD x 12 ID*102 12, 15, 18, or 24 24-15-MPSC-00011032424 OD x 12 ID*10224-18-MPSC-00011042424 OD x 12 ID*102 24-24-MPSC-00011052424 OD x 12 ID*10230-15-MPSC-00011063030...

Open the catalog to page 20

Hardinge HCAC > Collet Adaptation Chucks help move you up to a higher precision, higher production shop.Setup time takes a pleasant drop allowing more time to make products. Collet Adaptation Chucks convert a chuck-style spindle into a collet-style spindle. Collets run truer than jaw chucks, allowing you to eliminate many secondary operations. You can choose a draw-style collet adaptation chuck to provide the best TIR possible, or the stationary-collet style for its ability to hold lengths, even when the chucking diameter varies.Plain nose adapters are used with standard draw-collets or style...
