XR 760 VMC
16Pages

{{requestButtons}}

Catalog excerpts

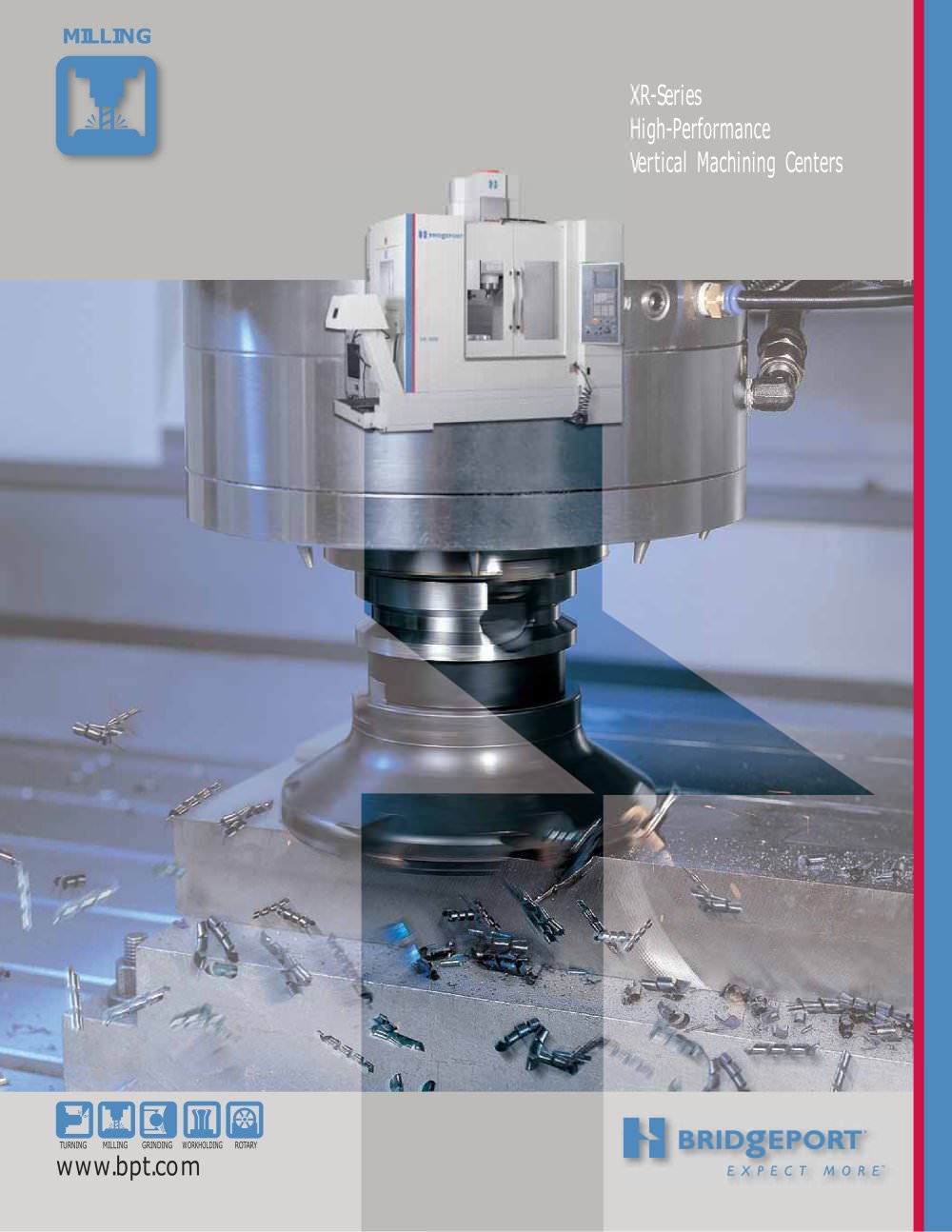

XR 760 VMC - 1

TURNING MILLING GRINDING WORKHOLDING ROTARY >

Open the catalog to page 1
XR 760 VMC - 2

Final assembly of the XR 1000 in Elmira, NY. 2 2 >

Open the catalog to page 2
XR 760 VMC - 4

Best overall working cube in its class610mm (24-inch) Y-axis travel on XR 760 and XR 1000 > Large 45mm high-quality, low maintenance linear guideways provide greater positioning accuracy and superior fi nishesvery low friction and high stiff-ness for long machine life.Oversized high-class 45mm double-nut ballscrewsחfi xed and pre-tensioned to provide superior machine accuracy and repeatability. All geometric alignments conform to ISO 230 standardsevery machine passes strict laser and ballbar tests. Best-in-class spindle design incorporates fi ve (5) bearings for superior rigidity and...

Open the catalog to page 4
XR 760 VMC - 6

XR-Series VMCs are equipped with the very latest, high-performance WEISS spindle technology. The XR 610 through XR 1000 models are supplied with a powerful 12,000-rpm, 18.5-kW (25-hp) belted spindle drive; 30-kW (40-hp) on the XR 1270 and XR 1500 models. Other speeds and drive system options offered.The XR 1270 HP and XR 1500 HP models feature a directly-coupled 15,000-rpm 30-kW (40-hp) spindle, while the 50-taper XR 1270 HPD and XR 1500 HPD models include a 375-to-7,500-rpm 30-kW (40-hp) gear-box driven spindle. Other speeds available.The WEISS directly-coupled spindle configuration...

Open the catalog to page 6
XR 760 VMC - 7

3 Directly-coupled spindle shown > www.bpt.com Spindle chiller Thermistors 7 >

Open the catalog to page 7
XR 760 VMC - 8

? Travels X-axis - 610mm (24) Y-axis - 510mm (20Ԕ) Z-axis - 610mm (24) ? Worktable Length - 900mm (35.4Ԕ) Width - 500mm (19.68) ? Rapid rates (X/Y)ԗ43m/min (1,692ipm) (Z)36m/min (1,417ipm) ? Spindle horsepower 18.5-kW (25-hp) Fanuc 21-kW (28-hp) Heidenhain ? Spindle speedsח12,000-rpm; 40 taper 9,000- or 15,000-rpm option available ? Fanuc 18i-MB or Heidenhain iTNC 530 control > ? Travels X-axis - 760mm (30) Y-axis - 610mm (24Ԕ) Z-axis - 610mm (24) ? Worktable Length - 900mm (35.4Ԕ) Width - 600mm (23.6) ? Rapid rates (X/Y)ԗ43m/min (1,692ipm) (Z)36m/min (1,417ipm) ? Spindle horsepower 18.5-kW...

Open the catalog to page 8
XR 760 VMC - 9

? Travels X-axis - 1270mm (50) Y-axis - 700mm (27.55Ԕ) Z-axis - 610mm (24) ? Worktable Length - 1397mm (55Ԕ) Width - 700mm (27.55) ? Rapid rates (x/y/z)ԗ36m/min (1,417ipm) ? Spindle horsepower30-kW (40-hp) (Fanuc and Heidenhain) ? Spindle speedsח12,000-rpm; 40 taper 9,000- or 15,000-rpm option available HP model15,000-rpm; 40 taper HPD modelח7,500-rpm; 50 taper ? Fanuc 18i-MB or Heidenhain iTNC 530 control > ? Travels X-axis - 1500mm (59.05) Y-axis - 700mm (27.55Ԕ) Z-axis - 610mm (24) ? Worktable Length - 1702mm (67Ԕ) Width - 700mm (27.55) ? Rapid rates (x/y/z)ԗ36m/min (1,417ipm) ? Spindle...

Open the catalog to page 9
XR 760 VMC - 10

Fanuc 18i-MB ControlStandard ? 264mm (10.4ה) LCD Color Monitor ? AI Nano Contour ControlHigh-Speed Machining Software ? Bell Shaped ACC/DEC after cutting feed interpolation ? Advanced Feed Forward Control ? Auto Corner Override and more ? HRV3חallows for fi ne digital tuning of the servo drives? Dynamic Graphic Display ? Ethernet Ready ? PCMCIA Card Slotcan be used to run large fi les directly from a memory card? Manual Pulse Generator ? Part Program Memory 256KB (640M) ? Rigid Tapping ? Extended Editing Functionsחcut, copy and merge? Tool Life Management ? Custom Macro BParametric Part...

Open the catalog to page 10
XR 760 VMC - 11

12,000-rpm Belted Spindle with Fanuc ControlXR 610, XR 760 and XR 100012,000-rpm Belted Spindle with Heidenhain ControlXR 610, XR 760 and XR 1000 15,000-rpm Directly-Coupled Spindle with Fanuc Control 15,000-rpm Directly-Coupled Spindle with Heidenhain Control XR 1270 HP and XR 1500 HP XR 1270 HP and XR 1500 HP 12,000-rpm Belted Spindle with Fanuc ControlXR 1270 and XR 150012,000-rpm Belted Spindle with Heidenhain ControlXR 1270 and XR 1500 > www.bpt.com See pages 14 and 15 for a complete listing of spindle drives available. 11 size="-1">

Open the catalog to page 11
XR 760 VMC - 12

Increase your productivity by adding affordable automation to your machining center for rapid positioning of single or multiple part setups. Enhanced, entry-level 5C E n h a n c e d , e n t r y - l e v e l Flexible, quick-change16C and 3J Rotary F l e x i b l e Zero backlash, gearless, Direct-Drive Rotary > 2 Rotary Systems Systems Systems > ? Beefy, dual-bearing spindle for heavier radial and axial loads? 5C ? Beefy, dual-bearing spindle for heavier radial and axial loads? 16C and 3J single, dual & triple, trunnion and 2-axis confi gurations? A2-5, 16C or 3J collet-ready spindle? 5C...

Open the catalog to page 12
XR 760 VMC - 13

Hardinge standard, performance and high-performance turning centers Kellenberger, Hauser, Tripet and Tschudin grinding machines We can help you turn your business around! From our compet- itively-priced standard SV-Series machines to our performance GS-Series and ELITE The Hardinge grinding companies include Hauser, Kellenberger, Tripet, Tschudin and, most recently, Bridgeport. Collectively we have all the technology, experience and know- how you need to transform your manufacturing operations. From high-performance cylindrical and jig grinding machines through to multi- functional ID/OD...

Open the catalog to page 13
XR 760 VMC - 14

XR 610 XR 760 Axis Travel Table (X axis) 610mm (24) 760mm (30Ԕ) Saddle (Y axis) 510mm (20) 610mm (24Ԕ) Head (Z axis) 610mm (24) 610mm (24Ԕ) Table Surface to Spindle Gauge Plane Distance (Min to Max) 100 to 710mm (3.94 to 27.95Ԕ) 100 to 710mm (3.94 to 27.95Ԕ ) > Positioning Auto Mode (X and Y axes) 43m/min (1,692ipm) 43m/min (1,692ipm) Auto Mode (Z axis) 36m/min (1,417ipm) 36m/min (1,417ipm) Feedrate Range (X and Y axes) .0025 - 20 m/min (0.1-787 ipm) .0025 - 20 m/min (0.1-787 ipm ) Feedrate Range (Z axis) .0025 - 20 m/min (0.1-787 ipm) .0025 - 20 m/min (0.1-787 ipm ) Minimum Increment...

Open the catalog to page 14
XR 760 VMC - 16

Canada United Kingdom Canadian Hardinge Machine Tools Ltd. 7111 Kennedy Road Mississauga, Ontario Canada L5S 0A4 Phone: 905.624.8252 Fax: 905.624.8494 web site: www.hardingecanada.com Bridgeport Hardinge Machine Tools, Ltd. Whiteacres Cambridge Road Whetstone Leicester LE8 6BD England Tel: +44 (0)116 2869900 Fax: +44 (0)116 2869901 Bridgeport e-mail: sales@bpt.com Bridgeport web site: www.bpt.com Hardinge e-mail: sales@hardinge.co.uk Hardinge web site: www.hardinge.co.uk Germany Hardinge GmbH Saalestrasse 20 47800 Krefeld Germany Phone: (49) 2151 496490 Fax: (49) 2151 4964999 > China...

Open the catalog to page 16
