XR 600 5AX

Product catalog summary

Overview: The document provides detailed specifications and features of the XR-Series High-Performance 5-Axis Vertical Machining Centers, specifically the XR 300 5AX and XR 600 5AX models. These machines are designed for high precision and productivity in various sectors including aerospace, automotive, and medical.

Specifications:

Travel: The XR 300 5AX offers X, Y, and Z-axis travels of 410mm, 610mm, and 500mm respectively, while the XR 600 5AX provides 885mm, 800mm, and 500mm.
Positioning: Both models feature rapid traverse rates of 36m/min for X/Y axes and 32m/min for the Z-axis. The A and C axes have rotation speeds of 25rpm and 33.3rpm respectively for the XR 600 5AX.
Worktable: The XR 300 5AX supports a maximum workpiece size of 300 x 300mm with a load capacity of 100kg, whereas the XR 600 5AX can handle 600 x 450mm and 300kg.
CNC Control: Both models are equipped with the Heidenhain iTNC 530 control system, featuring a 384mm color TFT display and user-friendly programming.
Spindle: Standard spindle speed is 12,000rpm, with optional speeds of 9,000/15,000rpm. The XR 600 5AX offers a directly-coupled 15,000rpm spindle option.
ATC (Automatic Tool Changer): Both models have a 48-tool capacity with an optional 60-tool capacity, featuring a 4.6 to 4.9 seconds chip-to-chip tool change time.
Accuracy: Positioning accuracy is 0.010mm, with high-precision models achieving 0.008mm. A & C axes accuracy is 5 arc seconds.
Machine Size: The XR 300 5AX dimensions are 2990 x 2880mm with a mass of 7600kg, while the XR 600 5AX measures 3950 x 3670mm and weighs 12100kg.

Technological Features: The XR-Series incorporates advanced spindle technology with grease lubrication "on-the-fly" for extended spindle life and higher performance. The WEISS spindle design in the XR 600 5AX enhances productivity with low vibration and high power density.

Applications: These machining centers are suitable for complex part manufacturing, from one-off parts to high-volume production, maintaining tight tolerances over long runs.

Catalog excerpts

TURNING MILLING GRINDING WORKHOLDING ROTARY >

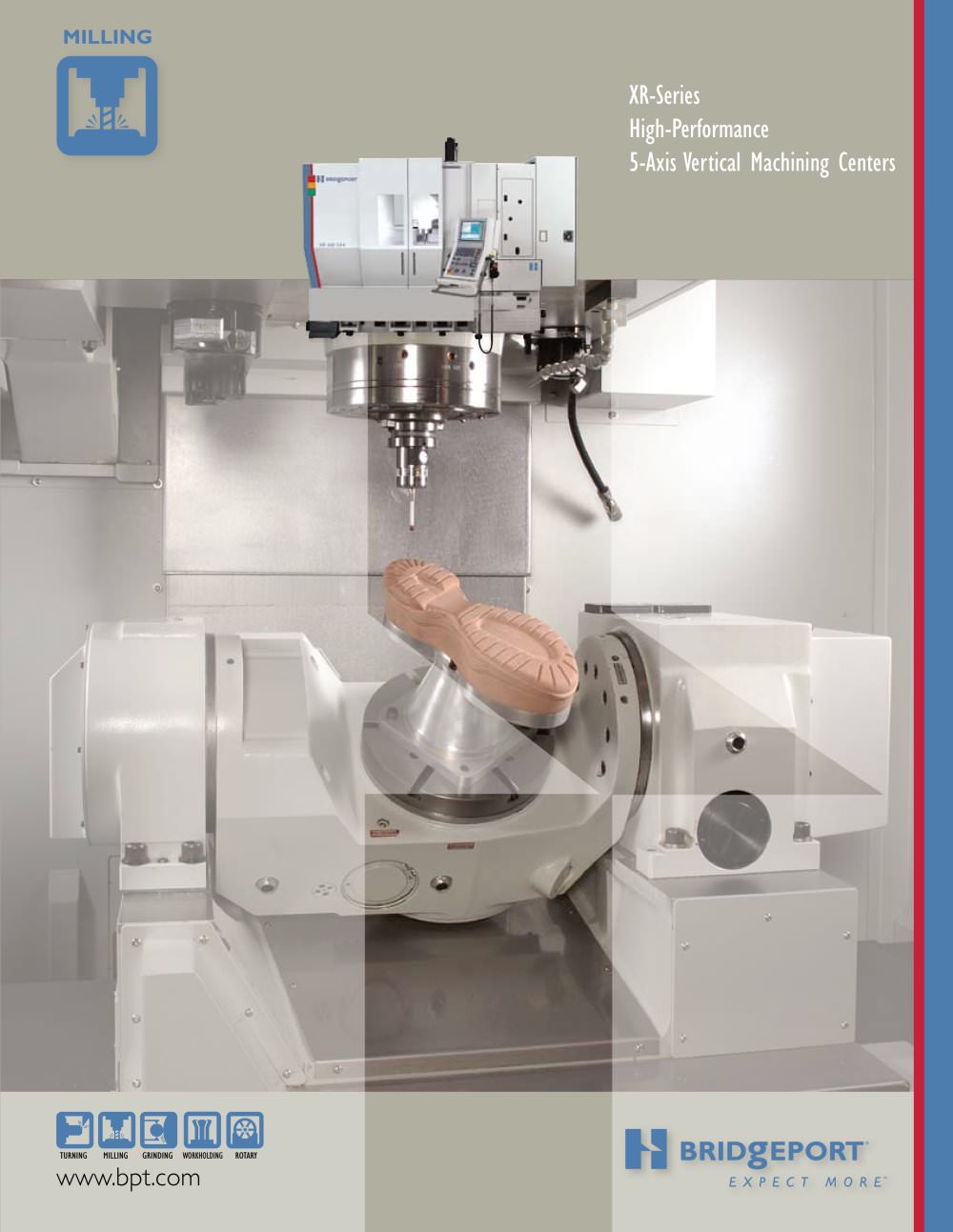

Open the catalog to page 1

XR 300 5AX > s X-axis - 410mm (16.14") Y-axis - 610mm (24.02") Z-axis - 500mm (19.69") An investment in Bridgeports latest generation of XR-Series 5-Axis vertical machining centers will bring instant and positive results. Our unrivalled technology coupled with an unswerving commitment to improving our customers' productivity and business performance have contributed to a large, and loyal, customer base. Our 5-Axis VMCs are ideally suited for a diverse range of applications within the aerospace, automotive, motor sport, medical, mold, and tool and die sectors. They provide cost-effective manufacturing...

Open the catalog to page 2

The strategically located automatic tool changer features random access, bi-directional indexing with a fast 4.6 second chip-to-chip change time (60-tool ATC optional). > Heidenhain iTNC 530 control s 384mm (15.1) color TFT display s > The GX range features the state-of-the-art Fanuc system. >

Open the catalog to page 3

XR 300 5AX XR 600 5AX TRAVEL POSITIONING X Axis 410mm [-205 +205] 885mm [-580 + 305] (16.14") [-8.07 +8.07] (34.84") [-22.83 +12.01] Y Axis 610mm [-305 ~ +305] 800mm [-375 ~ +425] (24.02") [-12.01 ~ +12.01] (31.50") [-14.76 ~ +16.73] Z Axis 500mm (19.69") 500mm (19.69") A Axis -30 ~ +120 -30 ~ +120а C Axis 360 360а Swing Diameter (max.) 300mm (11.81") 600mm (23.62") Spindle Nose to Table @ 0 (min. - max.) 30 - 530mm (1.18" - 20.87") 130 - 630mm (5.12" - 24.80") Spindle Nose to Table @ 90а (min. - max.) 30 - 530mm (1.18" - 20.87") 160 - 660mm (6.30" - 25.68") X/Y Axis Rapid Traverse Rate 36m/min...

Open the catalog to page 4
