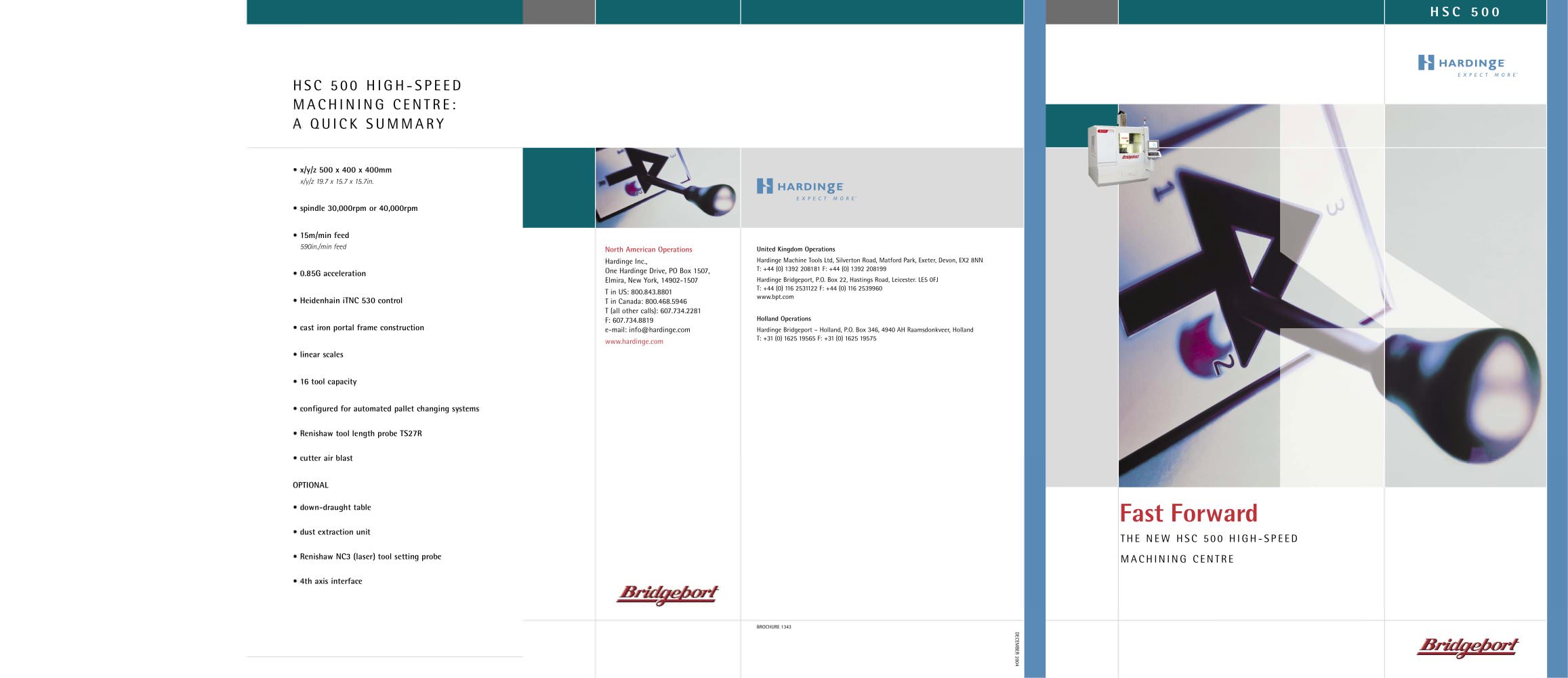

590in./min feed North American Operations > United Kingdom Operations Hardinge Inc., One Hardinge Drive, PO Box 1507, Elmira, New York, 14902-1507T in US: 800.843.8801 T in Canada: 800.468.5946 T (all other calls): 607.734.2281 F: 607.734.8819 e-mail: info@hardinge.comwww.hardinge.com > Hardinge Machine Tools Ltd, Silverton Road, Matford Park, Exeter, Devon, EX2 8NNT: +44 (0)1392 208181 F: +44 (0)1392 208199Hardinge Bridgeport, P.O. Box 22, Hastings Road, Leicester. LE5 0FJT: +44 (0)116 2531122 F: +44 (0)116 2539960 www.bpt.com Holland Operations Hardinge Bridgeport Ֆ Holland, P.O. Box 346, 4940 AH Raamsdonkveer, HollandT: +31(0)162519565 F: +31(0)162519575 www.bpt.com www.hardinge.com BROCHURE 1343 DECEMBER 2004 size="-3">

Open the catalog to page 1

BRIDGEPORT, PART OF THE HARDINGEGROUP, IS A MARKET-LEADING BRAND KNOWN AND RESPECTEDWORLDWIDE ֖ FOR THE DESIGN,DEVELOPMENT, APPLICATION, SALE ANDSUPPORT OF CNC MACHINING CENTRES.OUR UNRIVALLED TECHNOLOGYCOUPLED WITH AN UNSWERVINGCOMMITMENT TO IMPROVING OURCUSTOMERS' PRODUCTIVITY ANDBUSINESS PERFORMANCE HAVECONTRIBUTED TO A LARGE, AND LOYAL, CUSTOMER BASE.ALWAYS AT THE CUTTING-EDGE OFINNOVATIVE AND TECHNOLOGICALDEVELOPMENTS, THE BRIDGEPORTNAME IS SYNONYMOUS WITH QUALITYAND ENGINEERING EXCELLENCE THAT IS SECOND TO NONE.WE ARE CONFIDENT THAT OURADVANCED MANUFACTURING TECHNOLOGY WILL NOT ONLY...

Open the catalog to page 2

Dimensions 180 x140 x 80mm > (7.1 x 5.5 x 3.1in.) Tool descriptions 10mm > (0.39in.) dia Spindle rpm 19,000 Feedrate 6,000mm/min > (236in./min) Cycle time 20mins Tool descriptions 6mm > (0.24in.) Ballnose end mill Spindle rpm 40,000 Feedrate 6,500mm/min > (256in./min) Cycle time 10mins Tool descriptions 2mm > (0.08in.) Ballnose end mill Spindle rpm 40,000 Feedrate 3,250mm/min > (128in./min) Cycle time 26mins TOTALMACHININGTIME 56mins >

Open the catalog to page 3

The HSC 500֒s robust and rigid cast iron portal constructiondisplays excellent dampingproperties with mechanical and thermal stability leading togreater accuracy and precision. The machine is built to providemaximum stiffness minimising backlash and unwanted friction when machining. Schneeberger linear rollerguides and an accurate drivesystem guarantee precise positioning and high rigidity with axis acceleration rates up to 0.85g and feed rates of15m/min > and, for roughing operations,tools with a maximum diameterof 13mm > (0.51in.) can beaccommodated. With the30,000rpm HSK E40 option,tools...

Open the catalog to page 4

֑Lets get one thing straight Җ high-speedmachining is not just fast milling! At Bridgeportwe prefer to define HSM as an ultra-productive and effective machining process for the fastand efficient removal of a diverse range ofmetals and materials.However, to get the most from the process its important to understand the fundamentals of the high-speed machining concept itselfand their impact on every aspect of themachining process.Fundamentals such as:ҕ how high acceleration and feedrates reduce part cycle times and improve overallpart accuracy. the construction of the machine itself andthe...

Open the catalog to page 5

MACHINING ENVELOPE DUST EXTRACTION (OPTIONAL) x axis500mm > (19.7in.) Two stage filter system y axis400mm > (15.7in.) 1,500m > 3 /hr > (53,000cfh) z axis400mm > (15.7in.) SERVICES Feed rates 15m/min > (590in./min) Total power 25kVA Accel/decel0.85g Air supply5.5bar > (80psi) SPINDLE Air consumption500l/min > (17cfm) SPECIFICATION OPTIONS ҕ Renishaw NC3 Laser Tool Setting Probe Micro LubeՕ Dust Extraction Unit Renishaw Spindle ProbeՕ Pallet Changing Systems 4th Axis Interface Speed40,000rpm 30,000rpm Weight3,180kg > (7,000lbs) Power (S6 - 40%)9kW > (12hp) 9kW > (12hp) DIMENSIONS TaperHSK...
