SV 150 (6" Chuck)

SV 150 (6" Chuck)
8Pages

Catalog excerpts

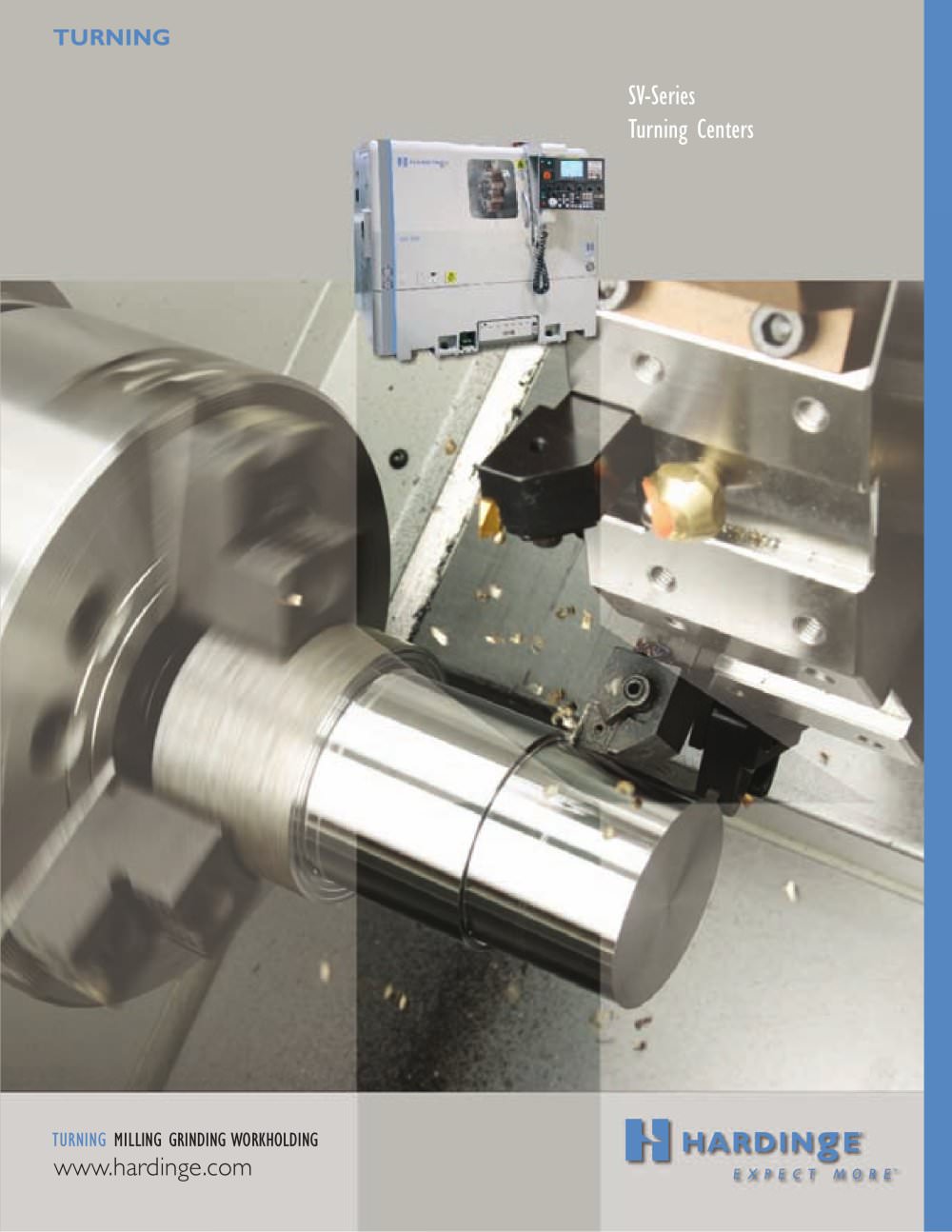

TURNING MILLING GRINDING WORKHOLDING >

Value and performance > We know how important it is to get a quality turning center at a great price! Thats why weҒre pleased to offer the Hardinge designed and built SV-Series turning centers. Compared to the other brands of well-known, low-priced lathe manu- facturers, SV-Series machines are outstanding turning centers that rivaland in some cases beatחall of them when it comes to features and price! The SV-Series models offer many of the same key components that have made our popular TALENT lathes a big sellerrigid and robust one-piece cast iron base, a swing-out CNC control panel for...

Open the catalog to page 2

IndustryΒs most reliable motors and drives. Heavy-duty axis motors and drives provide superior machine capability. Non-contact magnetic spindle encoder eliminates the need for belted encoder, increasing overall reliability. One-degree spindle orient included.Best in class spindle design incorporates 2-roller and 2-angular contact bearing for superior rigidity, thermal stability and overall spindle life.Machine base and all major castings are made with high quality grey cast iron for supe- rior rigidity, durability, and ther- mal stability. One piece base construction allows for easy chip...

Open the catalog to page 3

Standard 3-jaw chuck Standard 12-station turret top plate permits very rigid tool positioning >

Open the catalog to page 4

General Programming Functions (Continued) Hardinge Safe Start Format 8.4" Color LCD Display Two Interpolating Axes Input of Offset Value by Programming (G10) Programmable Resolutionҗ0.0001"/0.001mm > Interpolation (Linear and Circular) > Manual Guide (G-code Assist) > Ն Tool Geometry and Tool Wear Offsets (64 pair each) > Multiple Repetitive Canned Cycles I (Turning) > Inch/Metric Data Selection by G-Code > Registered Part Programs (200 total) 640 Meters (256 KB) Part Program Storage Rigid Tapping Thread, Synchronous Cutting Operation (Continued) Single Block Tool Life Management > Flash...

Open the catalog to page 5

Hardinge precision and Super-Precision > CNC turning centers We can help you turn your business around. From our competitively-priced SV-Series range of machines to our TAL- ENT Grinding machines > ή The Hardinge grinding companies include Hauser, Kellenberger, Tripet, Tschudin and, most recently, Bridgeport. Collectively we have all the technology, experience and know-how you need to transform your manufacturing operations. From high-performance cylindrical and jig grinding machines through to multi- functional ID/OD and universal machines not to mention Bridgeport's state-of-the- art...

Open the catalog to page 6

Turret (Bidirectional) Vertical Block Vertical Block Vertical Block Vertical Block Number of Stations 12 12 12 12 Square Shank Tool Size (Max.) 3/4" or 20mm 3/4" or 20mm 1" or 25mm 1" or 25mm Round Shank Tool Size (Max.) 1-1/4" or 32mm 1-1/4" or 32mm 1-1/2" or 40mm 1-1/2" or 40mm Index Time (Adjacent Station) Accuracy All Machines Laser Inspected Evaluation Standard ANSI/ASME B5.57 ANSI/ASME B5.57 ANSI/ASME B5.57 ANSI/ASME B5.57 PositioningחX and Z Axes .0002"/ѱ.005mm .0002"/ѱ.005mm .0002"/ѱ.005mm .0002"/ѱ.005mm RepeatabilityX and Z Axes ױ .0001"/ .0025mm ѱ .0001"/ .0025mm ѱ .0001"/ .0025mm...

Open the catalog to page 7

Expect more from your Hardinge products. Choose Hardinge precision and reliability for increased productivity and value! > Hardinge Inc. One Hardinge Drive | P.O. Box 1507 | Elmira, New York 14902-1507 USAUSA: 800.843.8801 | Canada: 800.468.5946 | Phone: 607.734.2281 | Fax: 607.734.8819 Corporate Web Site: www.hardinge.com | E-mail: info@hardinge.com > All specifi cations and prices subject to change without notice. U.S. currency shown. All marks indicated by Ү and are trademarks of Hardinge Inc. Brochure #1356 ٕ Litho in USA թHardinge Inc. 2007 7.5M March 2007 size="-1">
