RS-Series turning centers RS 42 (6" Chuck)

RS-Series turning centers RS 42 (6" Chuck)
20Pages

Catalog excerpts

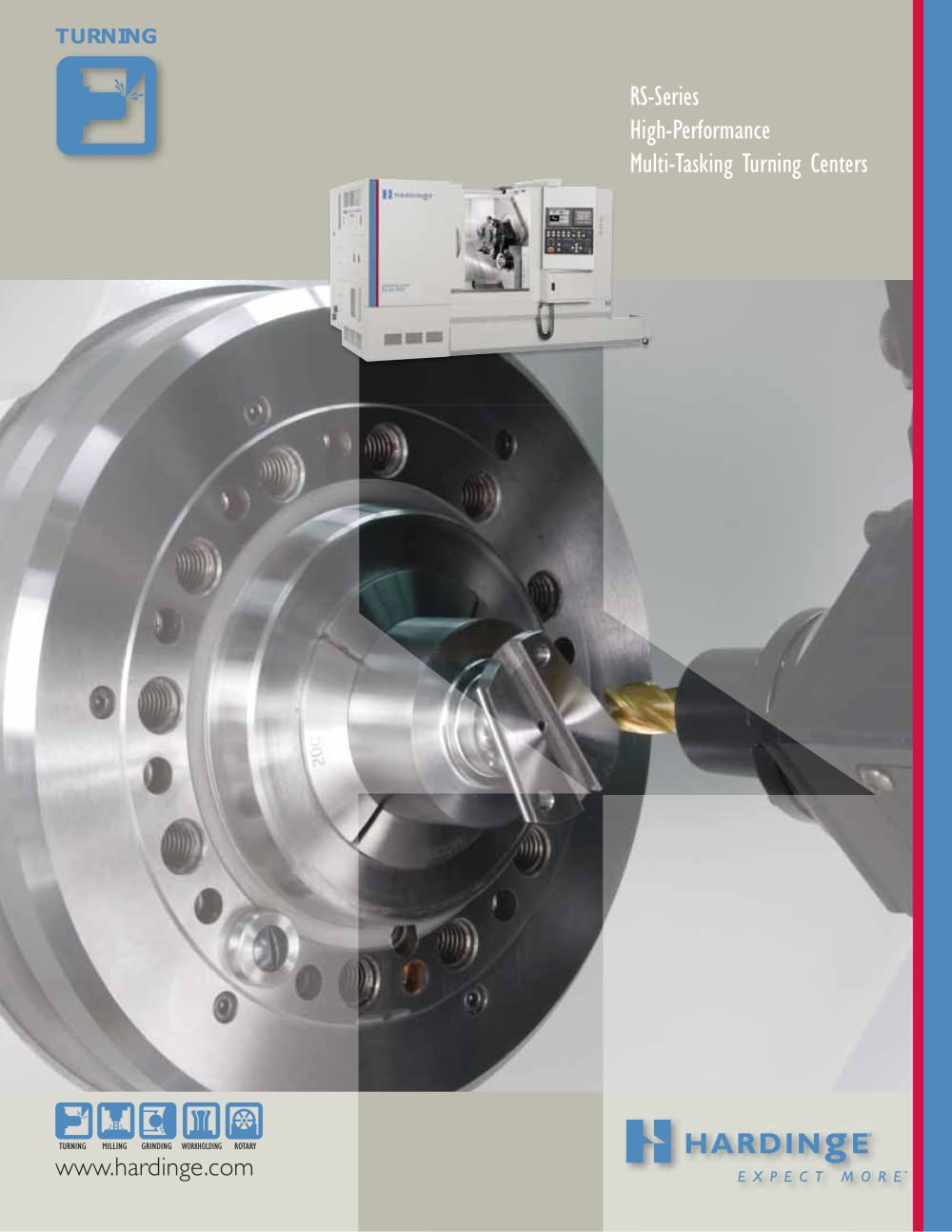

RS-Series turning centers RS 42 (6" Chuck) - 1

TURNING MILLING GRINDING WORKHOLDING ROTARY >

RS-Series turning centers RS 42 (6" Chuck) - 2

RS machines offer superior features and performance for both job shops and production environments. The machines can be confi gured for 2-axis turning or for complex multi-tasking operations in a single set-up. Standard features include: ҕ Powerful and rigid collet-ready spindle Rigid HARCRETE > ծ -reinforced cast iron base Exclusive ESA turret top plate and PRECI-FLEX > ծ tooling system 2.9-bar (187-psi) thru-tool coolant Օ Heavy-duty linear guideways, ball screws and axis drives Linear glass scale (X-axis) Օ User-friendly pendant-mounted control Manual Guide i programming Օ Ethernet...

Open the catalog to page 2

RS-Series turning centers RS 42 (6" Chuck) - 4

Finer surface fi nishes and 30% longer tool life Our rugged cast iron bases with HARCRETE > polymer composite (synthetic granite) reinforcement offer added stiffness with superior damp- ing characteristics of vibration to the workpiece. > Heavy cutting capability, extended tool life and fi ne surface fi nishes This analytical procedure assures that the machine structure has the ideal thermal characteristics for high-precision machining. FEA techniques were used to design a rigid, structurally balanced machine, result- ing in superior damping characteristics for minimized vibration to the...

Open the catalog to page 4

RS-Series turning centers RS 42 (6" Chuck) - 5

Faster traverse rates, longer machine life and greater positioning accuracy Wide-spaced, oversized linear guideways provide optimum stiffness with less friction, less heat and less thermal growth. The lin- ear way modules consist of slide members (guide trucks) and linear rails to provide a large load rating, stable accuracy, high rigid- ity and low friction. The spacing between the Z-axis rails provides optimum stiffness for the overall machine design. Oversized 40mm (1.57) ballscrews are featured. Torque limiters are provided as standard equipment. Z-Axis linear guideway > High machining...

Open the catalog to page 5

RS-Series turning centers RS 42 (6" Chuck) - 6

Increased concentricity, surface fi nish capability and superior roundness The preferred method of holding a workpiece for precision machining is with a collet. The Hardinge-designed and -built ANSI collet-ready spindle permits the in- dustrys best part rigidity, since parts are gripped close to the spindle bearings. Ask for ғThe Hardinge Advantage Technical Information Bulletin TIB-229. 6 > Workholding solutions for optimized productivity Hardinge manufactures the worldԒs most complete line of collets, jaw chucks and quick- change spindle tooling for the most demanding workholding...

Open the catalog to page 6

RS-Series turning centers RS 42 (6" Chuck) - 7

Powerful main spindle drive has all the power and torque youll need to do precise turning, drilling and rigid tapping operations. Hardinge-built spindles are hardened & ground and of one-piece construction. They are mounted in a high-strength cast iron headstock housing and mounted to the HARCRETE-reinforced cast iron base for optimum stiffness, rigidity and damping. In addition, a labyrinth seal shields coolant from the spindle bearings. This design accommodates the use of higher pressure coolant systems. Continuous air fl ow > Exceptional thermal stability for increased part accuracy The...

Open the catalog to page 7

RS-Series turning centers RS 42 (6" Chuck) - 8

This option is available on ESA and VDI 30 top plates to work on the main or sub spindle (standard on RS M, RS MS and RS MSY models). Each station can be equipped with a driven tool for cross- or end-milling/drilling operations in the toughest materials. C-axis is included on machines confi gured with live tooling. One-degree spindle orient is available as an option. Internal and external coolant- style live tool holders are offered to direct coolant to the work area. Angular drilling or milling is easily accomplished using adjustable live tooling attachments. Air/oil mist lubrica- tion is...

Open the catalog to page 8

RS-Series turning centers RS 42 (6" Chuck) - 9

Run out adapter: < 0.002mm (< .000078Ҕ)Run out tool tip (shrink fi t type) : < 0.003mm (< .00012)Tool change: < 60 sec Repeatability: < 0.003mm (< .00012Ԕ) Tool clamping force: > 4 x collet Chip removal volume: > 2 x collet Increased insert/tool life: + 3-5 X > www.hardinge.com

Open the catalog to page 9

RS-Series turning centers RS 42 (6" Chuck) - 10

i Series RS or Siemens 840D control > Ε A2-5, 16C collet spindle nose 42mm (1-5/8Ք) bar capacity 11-kW (15-hp) spindle drive system Օ 95Nm (70ft-lb) torque 6,000-rpm spindle speed Օ Hardinge/GE Fanuc > i Series RS or Siemens 840D control > A2-6, 20C collet spindle noseՕ 51mm (2) bar capacity ԕ 15-kW (20-hp) spindle drive system 286Nm (211ft-lb) torque Օ 6,000-rpm spindle speed Hardinge/GE Fanuc > i Series RS or Siemens 840D control > Օ A2-6, 25C collet spindle nose 65mm (2-1/2Ք) bar capacity 22-kW (30-hp) spindle drive system Օ 365Nm (270ft-lb) torque 4,500-rpm spindle speed Օ Hardinge/GE...

Open the catalog to page 10

RS-Series turning centers RS 42 (6" Chuck) - 11

When used with live tooling, this feature allows cutting square, hexagon or other polygon shapes on workpiece ODs. W s > Polar, cylindrical and 3-axis interpolation allows unlimited machining capabilities when used with the live tooling optionpositioning increments of .001 degree (C-Axis is standard on RS M, RS MS and RS MSY models). P w o > Sub spindle (part present sensor shown) Parts catcher Automatic Tool Touch Probe The sub spindle offers a thru-capacity up to 42mm (1 T > עD 8 ) with 16C collets and a gripping capacity of 139mm (5 g > 1 ԢD 2 ) with 150mm (6Ԕ) jaw chucks. Exact...

Open the catalog to page 11

RS-Series turning centers RS 42 (6" Chuck) - 12

Extended Part Program Edit Machine Lock Programming Functions (contd) Operation (contҒd) Manual Pulse Generator (MPG) Graphic Toolpath Display On-Screen Spindle & Axis Load Meters > Hardinge Safe Start Format > O External Workpiece Number Search Option Stop > Rapid Traverse Override (Low-25-50-100%) > Input of Offset Value by Programming (G10) > Spindle Speed and T-Code Displays Actual Cutting Speed Display > Interpolation (Linear and Circular) on All Screens Tool Geometry and Tool Wear Offsets ՗ Miscellaneous > Multiple Repetitive Canned Cycles I (Turning) > Multiple Repetitive Canned...

Open the catalog to page 12

RS-Series turning centers RS 42 (6" Chuck) - 13

Dwell Time Programming Functions (contd) Continual Thread Cutting Operation (contҒd) Coordinate System Setting Emergency Stop High-Level Programming (Custom Macro) > Execution from External Device > Decimal Point Programming > Direct Drawing Dimension Programming > Engraving Cycle (Peripheral and End Faces) > Diameter/Radius Programming Incremental Jog with 3D Coordinate System Conversion > 4 Extended Part Program Edit > Jog Feed with 3D Coordinate System Conversion > 4 External Workpiece Number Search > Feedrate in Inch/Tooth or mm/Tooth > 1 Manual Pulse Generator (MPG) Handwheel > (Used...
