Overview: The HLV Toolroom Lathe is designed for super-precise tolerances and fine surface finishes, suitable for both inch and metric manual machining. It is perfected by Hardinge Inc., a leader in precision machining.

Specifications:

Spindle: Capacity varies with collet type, with a maximum of 6"/152mm for step chucks. The spindle configuration is 5C Hardinge with a tapered nose, and speeds range from 125 to 3,000 rpm.
Capacity: Swing over bed is 11"/279mm, with a between-centers distance of 18"/457mm. The carriage and cross slide power feed ranges are 5/16 to 7 ipm and 3/16 to 4 ipm, respectively.
Tailstock: Features a Morse Taper Center MT No. 2 with a spindle travel of 3 3/4"/95mm.
Miscellaneous: The machine weighs approximately 2,250 lb/1021 kg and has dimensions of 71 1/2"/1816mm in length, 31"/787mm in depth, and 72 3/4"/1848mm in height.

Features:

Includes a No. 2 Morse Taper Tailstock and a spindle speed selector switch with an indicator.
Offers a range of threads in the gearbox from 11 to 108 (inch) and 0.275 to 2.7 (mm), with 72 thread changes available.
Tooling options include 5C precision spindle tooling, various jaw chucks, and precision carbide tools.
Accessories such as fast-change tool holders, steady rest, and taper turning attachments are available.

Productivity and Performance:

The lathe's dovetail design ensures maximum tool rigidity and accuracy.
Independent variable electric feeds allow for multiple operations without production time waste.
Features like a preloaded spindle and lever-operated collet closer enhance rigidity and accuracy.
Dual dials and an inch/millimeter gearbox facilitate precise thread cutting.
An optional Acu-Rite® digital readout provides super-accurate tool positioning.

Contact Information: For orders in the USA, call 800-843-8801; in Canada, call 800-468-5946. For other inquiries, contact 607-734-2281 or visit www.hardinge.com.

Catalog excerpts

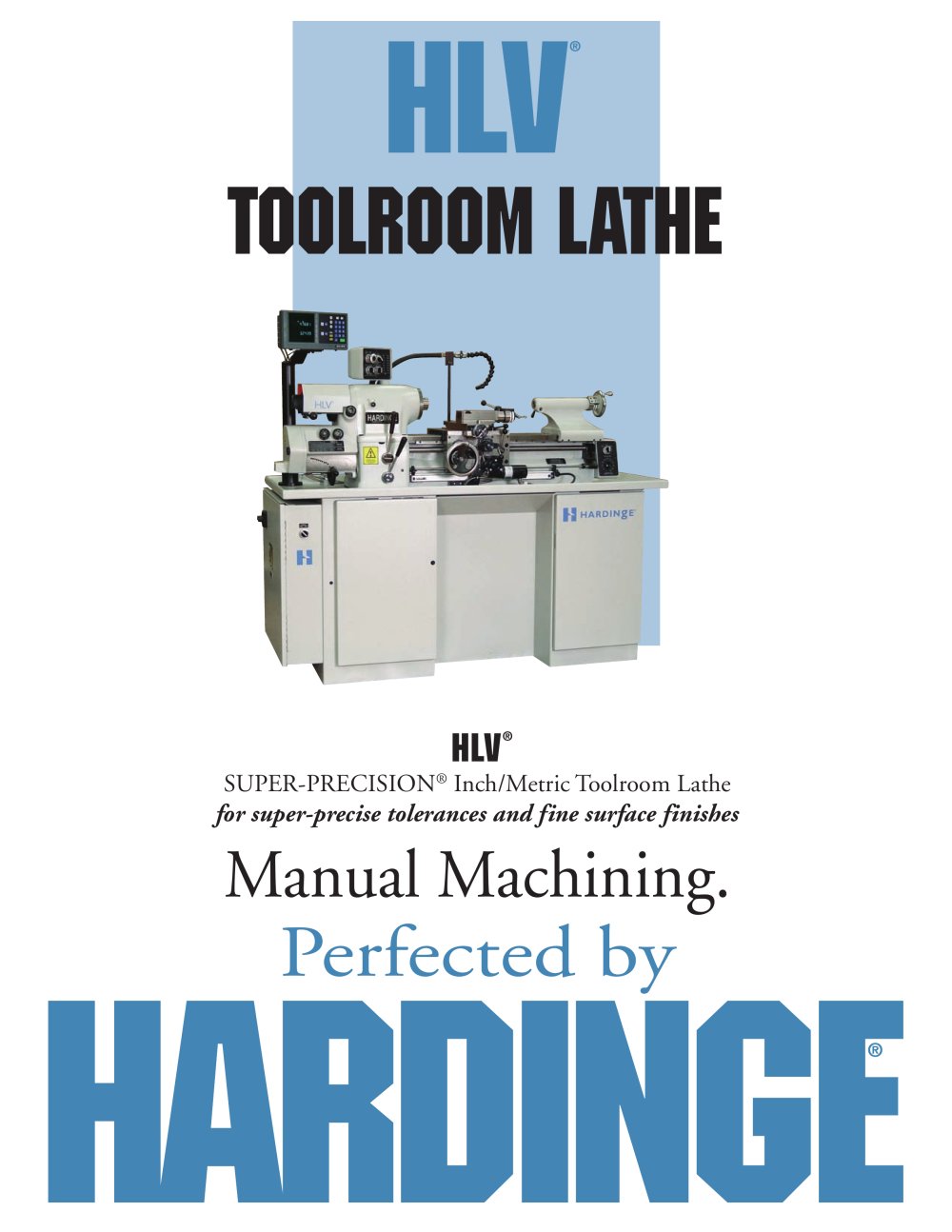

ή SUPER-PRECISION > Inch/Metric Toolroom Lathe for super-precise tolerances and fine surface finishes >

Open the catalog to page 1

Inch/millimeter gearbox for precision thread cutting. Digital readout option shown. No. 2 Morse Taper Tailstock Maximum Spindle Runout (TIR).000025".00065mm > Spindle Capacity With Round 5C Collets1 1 / 16 "/27mm With Hexagon 5C Collets 7 / 8 "/22mm With Square 5C Collets 3 Spindle Speed Selector Switch with Indicator > / 4 "/19mm With Step Chucks6"/152mm With Jaw Chucks5"/127mm With Expanding Collets3"/76mm Range of Threads in Gearbox՗11 to 108 (inch) > Number of Thread Changes72in Gearbox > Spindle Configuration5C HardingeTapered Nose Threaded-Nose Spindle is also available Hole Through Spindle1...
