Bridgeport GX 300 & GX 510 Machining Centers

Bridgeport GX 300 & GX 510 Machining Centers
2Pages

Catalog excerpts

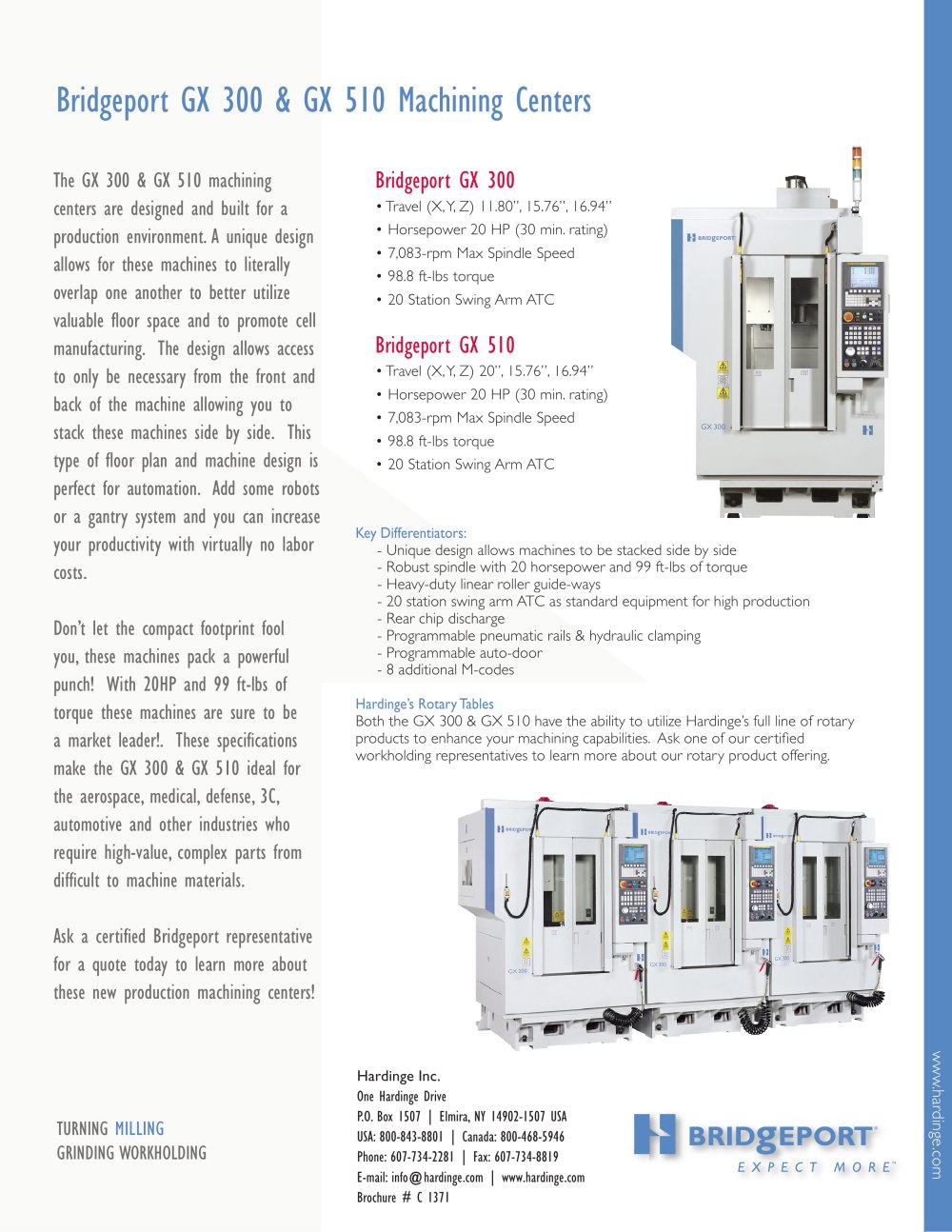

Bridgeport GX 300 & GX 510 Machining Centers - 1

Turning Milling G rinding Workholding www.hardinge.com Hardinge Inc. O ne Hardinge Drive P.O. Box 1507 | Elmira, NY 14902-1507 USA U SA: 800-843-8801 | Canada: 800-468-5946 Phone: 607-734-2281 | Fax: 607-734-8819 E-mail: info@hardinge.com | www.hardinge.com Brochure # C 1371 Bridgeport GX 300 • Travel (X, Y, Z) 11.80”, 15.76”, 16.94” • Horsepower 20 HP (30 min. rating) • 7,083-rpm Max Spindle Speed • 98.8 ft-lbs torque • 20 Station Swing Arm ATC Bridgeport GX 510 • Travel (X, Y, Z) 20”, 15.76”, 16.94” • Horsepower 20 HP (30 min. rating) • 7,083-rpm Max Spindle Speed • 98.8 ft-lbs torque • 20 Station Swing Arm ATC Bridgeport GX 300 & GX 510 Machining Centers Key Differentiators: - Unique design allows machines to be stacked side by side - Robust spindle with 20 horsepower and 99 ft-lbs of torque - Heavy-duty linear roller guide-ways - 20 station swing arm ATC as standard equipment for high production - Rear chip discharge - Programmable pneumatic rails & hydraulic clamping - Programmable auto-door - 8 additional M-codes Hardinge’s Rotary Tables Both the GX 300 & GX 510 have the ability to utilize Hardinge’s full line of rotary products to enhance your machining capabilities. Ask one of our certified workholding representatives to learn more about our rotary product offering. The GX 300 & GX 510 machining centers are designed and built for a production environment. A unique design allows for these machines to literally overlap one another to better utilize valuable floor space and to promote cell manufacturing. The design allows access to only be necessary from the front and back of the machine allowing you to stack these machines side by side. This type of floor plan and machine design is perfect for automation. Add some robots or a gantry system and you can increase your productivity with virtually no labor costs. D on’t let the compact footprint fool you, these machines pack a powerful punch! With 20HP and 99 ft-lbs of torque these machines are sure to be a market leader!. These specifications make the GX 300 & GX 510 ideal for the aerospace, medical, defense, 3C, automotive and other industries who require high-value, complex parts from difficult to machine materials. Ask a certified Bridgeport representative for a quote today to learn more about these new production machining centers!

Open the catalog to page 1

Bridgeport GX 300 & GX 510 Machining Centers - 2

www.hardinge.com Fanuc OiMC Control GX 300 GX 510 Axis Travel X-Azis 11.80in. (300mm) 20in. (510mm) Y-Axis 15.8in. (400mm) 15.8in. (400mm) Z-Axis 16.9in. (430mm) 16.9in. (430mm) Positioning Rapid Traverse Rates (X, Y,Z Axes) 1,181in./min. 1,181in./min. Manual Mode (X, Y, Z Axes) 0-354in./min. 0-354in./min. Feedrate Range (X, Y, Z Axes) 0.1-472in./min. 0.1-472in./min. Acceleration (X, Y, Z Axes) 190 in./s2 (4.8m/s2) 190in./s2 (4.8m/s2) Minimum Increment 0.00004in. 0.00004in. Ball Screw Diameter and Pitch (X, Y, Z Axes) 1.26”x10 pitch (32mm) 1.26”x10 pitch (32mm) Spindle Spindle Speed Range...

Open the catalog to page 2
