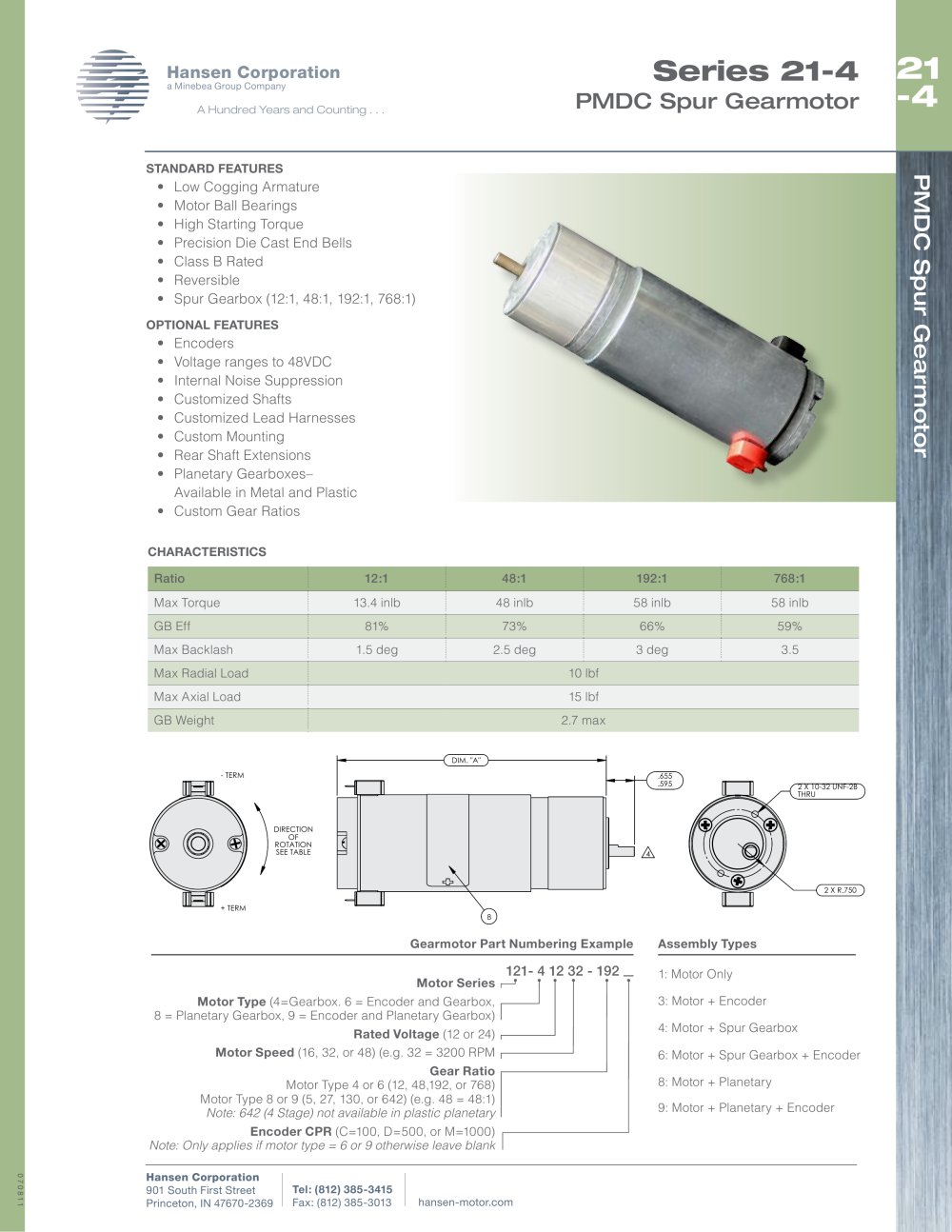

PMDC Spur Gearmotor

Product catalog summary

Characteristics:

Gear Ratios: 12:1, 48:1, 192:1, 768:1
Max Torque: 13.4 in-lb (12:1), 48 in-lb (48:1), 58 in-lb (192:1 and 768:1)
Gearbox Efficiency: 81% (12:1), 73% (48:1), 66% (192:1), 59% (768:1)
Max Backlash: 1.5° (12:1), 2.5° (48:1), 3° (192:1), 3.5° (768:1)
Max Radial Load: 10 lbf
Max Axial Load: 15 lbf
Gearbox Weight: 2.7 max

Standard Features:

Low Cogging Armature
Motor Ball Bearings
High Starting Torque
Precision Die Cast End Bells
Class B Rated
Reversible
Spur Gearbox (12:1, 48:1, 192:1, 768:1)

Optional Features:

Encoders
Voltage ranges to 48VDC
Internal Noise Suppression
Customized Shafts and Lead Harnesses
Custom Mounting and Rear Shaft Extensions
Planetary Gearboxes available in Metal and Plastic
Custom Gear Ratios

Assembly Types:

1: Motor Only
3: Motor + Encoder
4: Motor + Spur Gearbox
6: Motor + Spur Gearbox + Encoder
8: Motor + Planetary
9: Motor + Planetary + Encoder

Part Numbering Example:

Format: 121-4 12 32 - 192
Motor Series, Motor Type, Rated Voltage, Motor Speed, Gear Ratio
Encoder CPR if applicable

Available Stock Assemblies:

Various part numbers with specifications for different voltages and gear ratios
Contact Hansen Motors for custom assemblies

Contact Information:

Hansen Corporation, 901 South First Street, Princeton, IN 47670-2369
Tel: (812) 385-3415
Fax: (812) 385-3013
Website: hansen-motor.com
