PMDC Planetary Gearmotor

1 / 2 PagesView full catalog

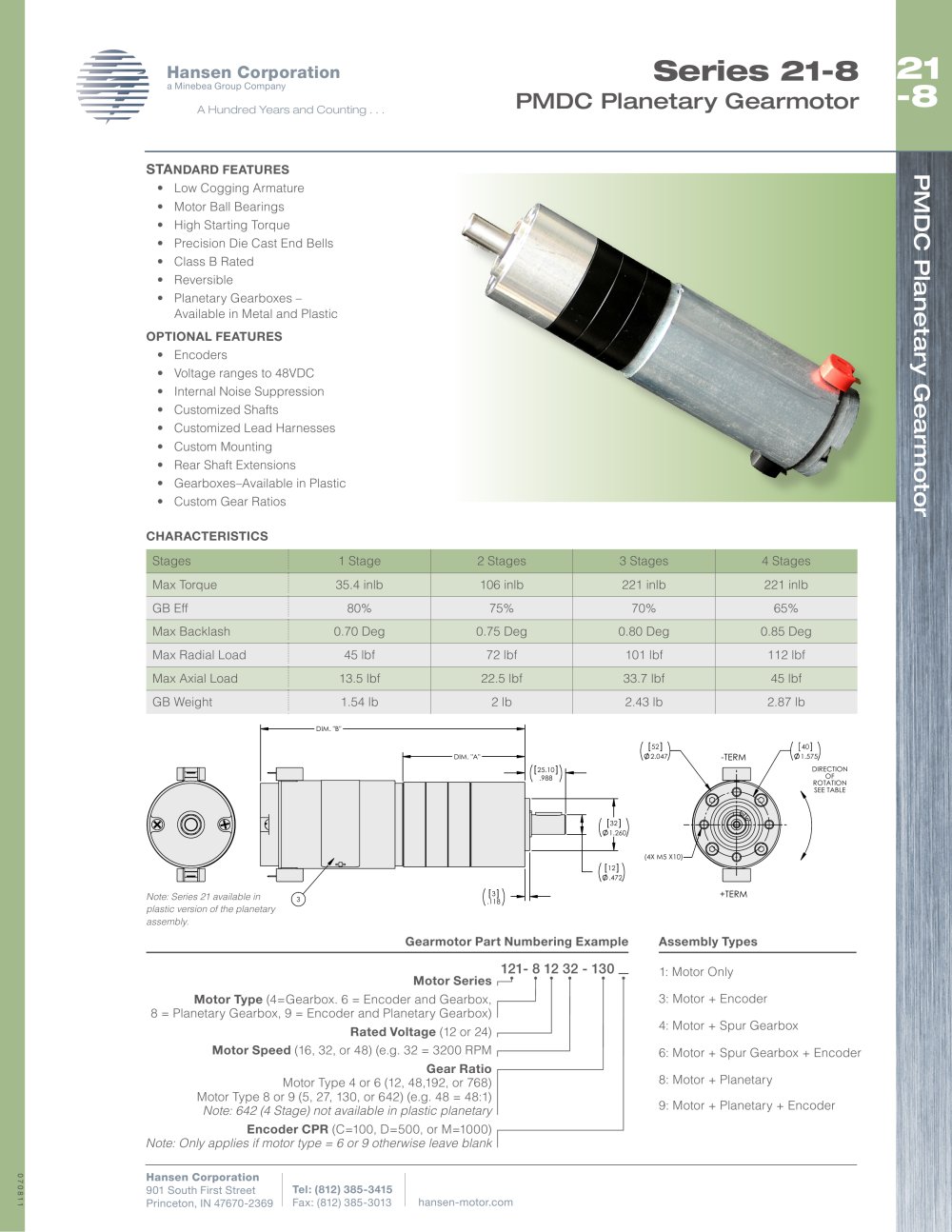

PMDC Planetary Gearmotor

Product catalog summary

Characteristics:

Stages: 1 to 4 stages available.
Max Torque: Ranges from 35.4 in-lb for 1 stage to 221 in-lb for 3 and 4 stages.
Gearbox Efficiency (GB Eff): Decreases from 80% for 1 stage to 65% for 4 stages.
Max Backlash: Increases from 0.70 degrees for 1 stage to 0.85 degrees for 4 stages.
Max Radial Load: Ranges from 45 lbf for 1 stage to 112 lbf for 4 stages.
Max Axial Load: Ranges from 13.5 lbf for 1 stage to 45 lbf for 4 stages.
Gearbox Weight: Increases from 1.54 lb for 1 stage to 2.87 lb for 4 stages.

Standard Features:

Low Cogging Armature
Motor Ball Bearings
High Starting Torque
Precision Die Cast End Bells
Class B Rated
Reversible
Planetary Gearboxes available in Metal and Plastic

Optional Features:

Encoders
Voltage ranges up to 48VDC
Internal Noise Suppression
Customized Shafts and Lead Harnesses
Custom Mounting and Rear Shaft Extensions
Gearboxes available in Plastic
Custom Gear Ratios

Assembly Types:

Motor Only
Motor + Encoder
Motor + Spur Gearbox
Motor + Spur Gearbox + Encoder
Motor + Planetary
Motor + Planetary + Encoder

Part Numbering Example:

Format: 121-8 12 32 - 130
Motor Series, Motor Type, Rated Voltage, Motor Speed, Gear Ratio, Encoder CPR

Available Stock Assemblies:

Various part numbers with different dimensions, gearbox types, ratios, and voltage specifications.

Overall Available Ratios:

Different ratios available for spur and helical gearboxes across 1 to 4 stages.

Contact Information:

Hansen Corporation, 901 South First Street, Princeton, IN 47670-2369
Tel: (812) 385-3415
Fax: (812) 385-3013
Website: hansen-motor.com

All Hansen Corporation catalogs and technical brochures
