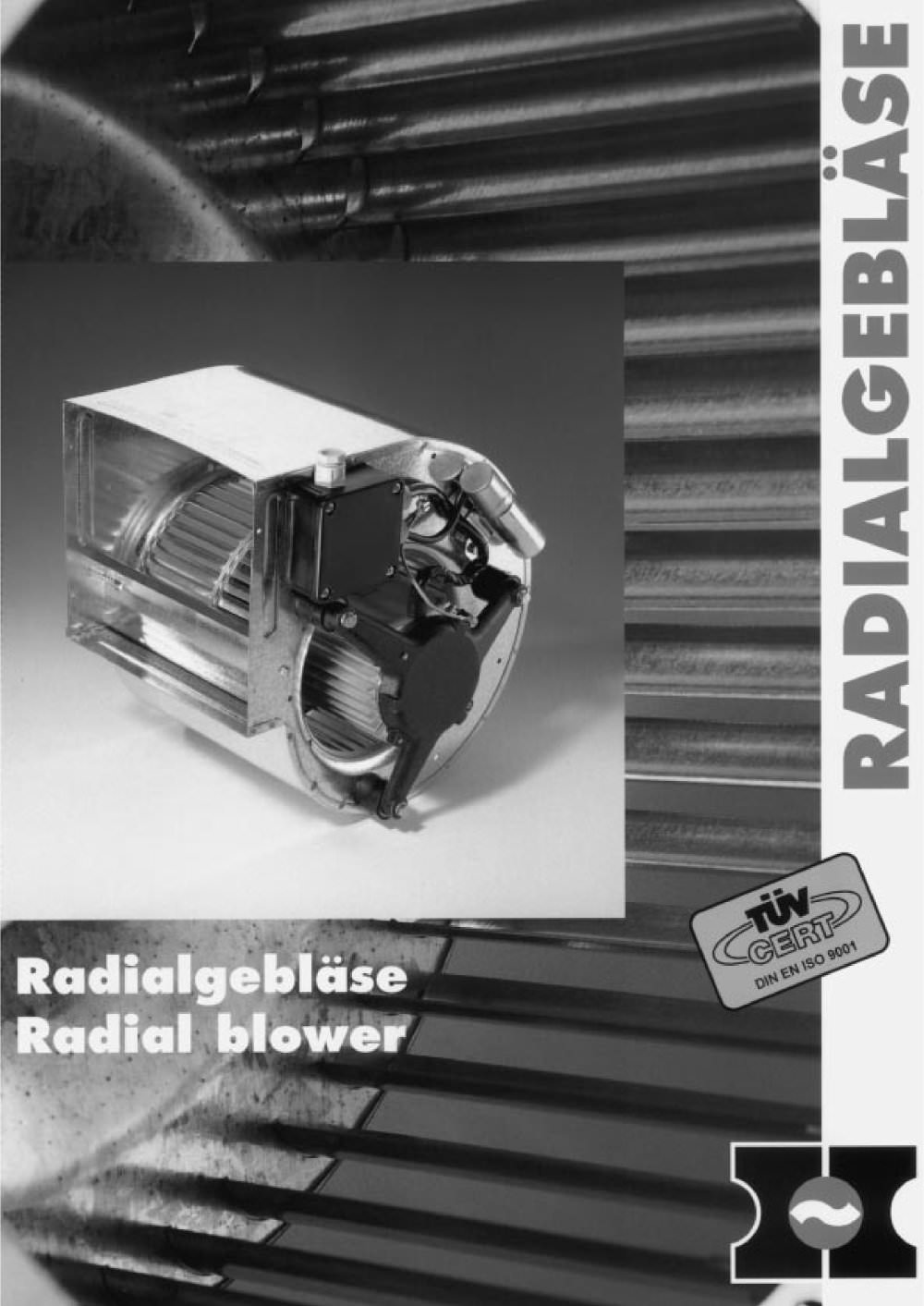

Radial fans (up to 5,500 m³/h)
1 / 4 PagesView full catalog
Radial fans (up to 5,500 m³/h)
Product catalog summary
Overview: This document provides technical specifications for the RADIAL BLOWERS Type range RAD, including models RAD 1919, RAD 2419, RAD 2424, and RAD 2727. Each model is detailed with its volume flow, pressure increase, electrical specifications, and protection systems.
Specifications:
- RAD 1919: Volume flow ranges from 0 to 3000 m3/h with a pressure increase. Operates on 3-phase 400 V or single-phase 230 V at 50 Hz. Power input is 340 W or 500 W with a maximum speed of 1500 rpm. Protection system is IP 54 with a temperature controller.
- RAD 2419: Volume flow ranges from 0 to 3000 m3/h. Similar electrical specifications as RAD 1919 but with a power input of 1050 W or 1300 W.
- RAD 2424: Volume flow ranges from 0 to 5000 m3/h. Electrical specifications are consistent with previous models, with a power input of 1050 W or 1300 W.
- RAD 2727: Volume flow ranges from 0 to 6000 m3/h. Operates with a power input of 1400 W or 1900 W. Maintains the same protection system and temperature controller as other models.
Key Features:
- All models feature a protection system rated at IP 54.
- Temperature controllers are included in all models.
- Capacitors are specified for each model, ensuring efficient operation.
See more
Catalog excerpts
3 /h) Druckerhhung/Pressure increase Technische Daten / Technical data Technische Daten / Technical data 1 ~ [50 Hz]U [V] P 梈 230/Y 400340500max. 1500max. 1500IP 54IP 546Ɩja/yesja/yes > 1 [W]n [1/min] Schutzart/Protection system C > 410 V [ F]Temperaturwդchter/Temperature controller3 ~ [50 Hz]230 > 3 /h] Druckerhhung/Pressure increase 1 ~ [50 Hz]U [V] P 梈 230/Y 40010501300max. 1500max. 1500IP 54IP 5416Ɩja/yesja/yes > 1 [W]n [1/min] Schutzart/Protection system C > 410 V [ F]Temperaturwդchter/Temperature controller3 ~ [50 Hz]230 >
