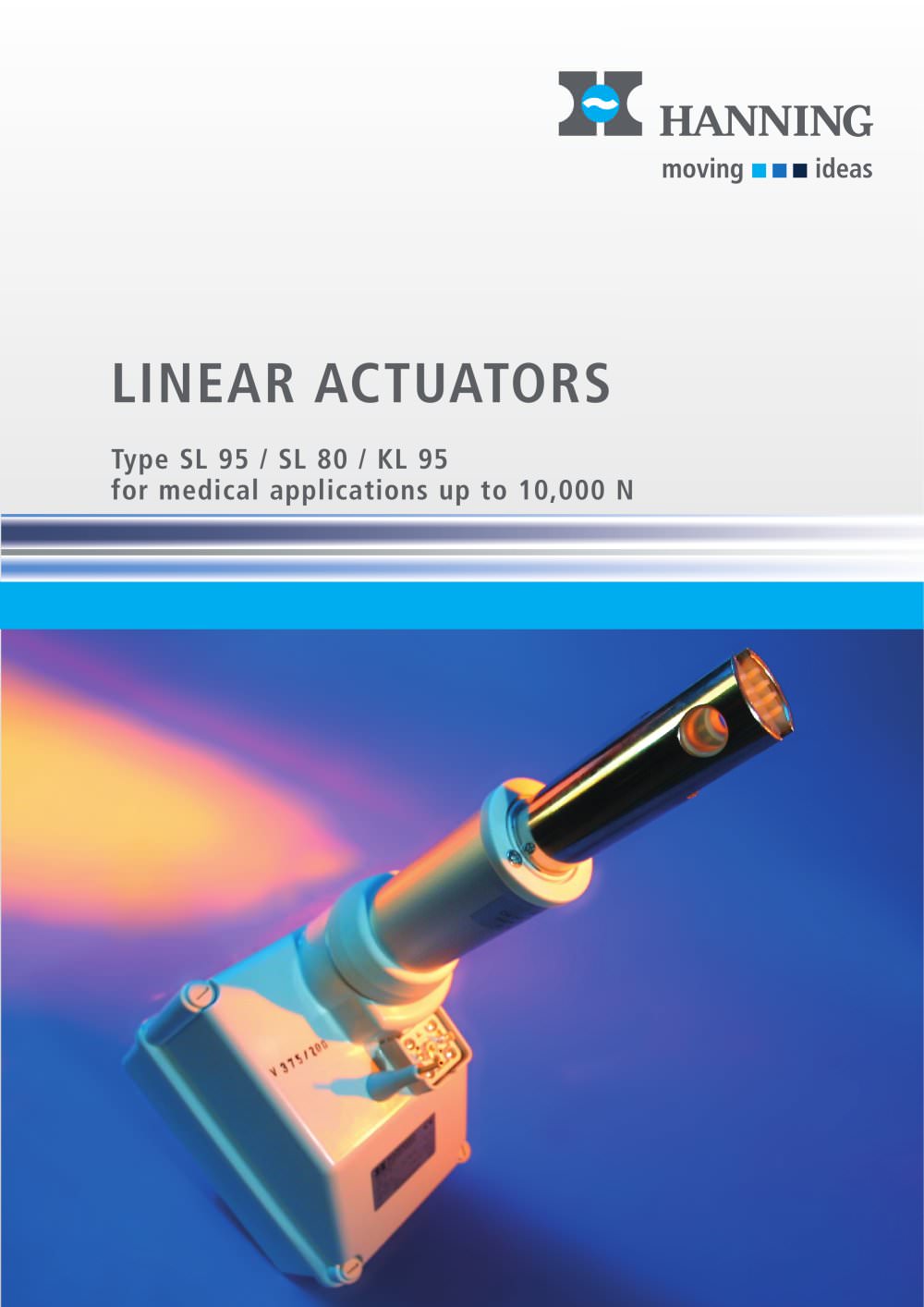

Type SL 95 / SL 80 / KL 95for medical applications up to 10,000 N >

KL 95 linear actuatorPage 10 Accessories andsafety from page13 onwards SL 95 linear actuatorPage 4SL 80 linear actuatorPage 7 2 >

moving ideas With this slogan we present ourselves on the market.It represents our aim to develop and produce modern and economic drive solutions for our customers.Our experience and orientation towards the futureprovide the foundations for our ambitious strategies. > From our manufacturing sites in Germany as well as our international sales offices we deliver HANNING products and service to successful companies all over the world. > The encapsulated linear actuators of the SL 95,SL 80 and KL 95 series are mainly distinguished by their compact and rugged design,the stro kelengths and traversing...

The range of HANNING encapsulated linear actuators is headed bythe SL 95.It enables pressure and tension up to 10,000 N and traversing speeds up to 42 mm/s or 50 mm/s which almost remain constant even at rated load.The SL 95 linear actuators are ideal drives for a powerful and safeadjustment of therapy tables and many more medical applications.The The declutching is achieved by a special bearing which ensures the power transmission between worm and motor shaft.HANNINGs engineering department offers the development andimplementation of individual solutions.Together with the customer we define...

SL 95 Mains voltage1~ 100 / 115 / 230 V AC 10% Stroke lengthup to 500 mm,over 500 mm on request Class of protection1 or 2 Type of protectionIP55,IP66 Duty time25 s on,400 s offControlѕ pneumatically electrically Օ via standard PLC via HANNING universal control units Օ via HANNING frequency invertersEnd position limitation End position limitation through internal micro-switch Օ Optionally the end positions can be externally limited by micro switches Position detection Hall sensor Օ Analog distance measuring systemSafety options Declutching in downwards direction,special declutch bearingՕ HANNING...

z=Overlapping depends on load and stroke lengthH= Horizontal fork joint position,turned by 90V= Vertical fork joint position,as shown 6 >

The new SL 80 is very powerful and covers up to 8,000 N.Many new HANNINGs engineering department offers the development and implementation of individual solutions. applications are possible.Its newly developed housing with integrated endshield ensures a very compact design.The SL 80 is now also suitable for smaller mounting spaces.The very rugged motors enablealmost a load-constant speed up to 15 mm/s.As option,the SL 80 is also available with a declutch system.Thepower transsmission can be interrupted in one direction so that the traversing in,for instance,the ingoing direction is only caused...

SL 80 Mains voltage1~ 100 / 115 / 230 V AC 10% Stroke lengthup to 300 mm,over 300 mm on request Class of protection1 or 2 Type of protectionIP55,IP66 Duty time25 s on,400 s offControlѕ pneumatically electrically Օ via standard PLC via HANNING universal control unitsEnd position limitationՕ End position limitation through internal micro-switch Optionally the end positions can be externally limited by micro switches Position detection Օ Hall sensor Analog distance measuring systemSafety optionsՕ Declutching in downwards direction,motor disengaged HANNING safety-lock-box Օ HANNING touch-safety-control-box...

H= Horizontal fork joint position,turned by 90V= Vertical fork joint position,as shown 9 >

The KL 95 is the smallest linear actuator of this series.It is however as rugged as all the other drives.It is suitable for applications up to4,000 N and traversing speeds of 20 mm/s.As option,the KL 95 is also available with a declutch system.Thepower transsmission can be interrupted in one direction so that thetraversing in,for instance,the ingoing direction is only caused by theweight which is loaded on the drive. The declutching is achieved by interrupting the power transmission between screw nut and travel tube. HANNINGs engineering department offers the development and implementation of...

KL 95 Mains voltage1~ 100 / 115 / 230 V AC 10% Stroke lengthup to 300 mm,over 300 mm on reques Class of protection2 Type of protectionIP55,IP66 Duty time25 s on,400 s offControlѕ pneumatically electrically Օ via standard PLC via HANNING universal control unitsEnd position limitationՕ Mechanical end position limitation Optionally the end positions can be externally limited by micro switches Position detection Օ Hall sensor Analog distance measuring systemSafety optionsՕ Declutching in downwards direction,motor disengaged HANNING safety-lock-box Օ HANNING touch-safety-control-box >

H= Horizontal fork joint position,turned by 90V= Vertical fork joint position,as shown 12 >

HANNINGs drive system is rounded off by an extensive accessoryrange which also includes different control variants and hand and footswitches.A drive can either be controlled through a HANNING pneumatic handor foot switch or an electrical hand or foot switch. Furthermore it is possible to control a drive with an infra-red remotecontrol and the CTRL universal control unit.This system includes acomfortable memory function which directly finds programmed positions.The switch design and the control type can be selected as desired. > Pneumatic control systems ҕPneumatic hand switchPneumatic foot switch...

HANNINGs frameless universal control unit is suitable for applications in very small mounting spaces and offers the user many control andsafety options.All HANNNG linear actuators can be equipped with this type of control unit. > Safety options ҕEnable inputSafety switch-off Օ5 V DCAnalog keyboard ՕInfra-red interface RECS80 Coded signal cable RECS80 ՕBus interface (in preparation) Error diagnosticsControl Motor control Voltage supply 4 x 0.5 kW single phaseՕConnection of up to four motors possibleConnection of up to three motors and two switching outputs possibleՕProgramming of up to eight memory...

Medical applications require a very high safety standard.HANNINGlinear actuators are equipped with different active and passive safetydevices which ensure that they can be safely and perfectly integrated into our customers applications. Our safety devices ensure a very high safety standard for our customersҒ applications.Our products are certified and approved by all common standardsand regulations to ensure trouble-free operation in medical applications. In addition to the safety options directly integrated into the motor as declutching functions,HANNING offers a safety-lock-box and apatented...
