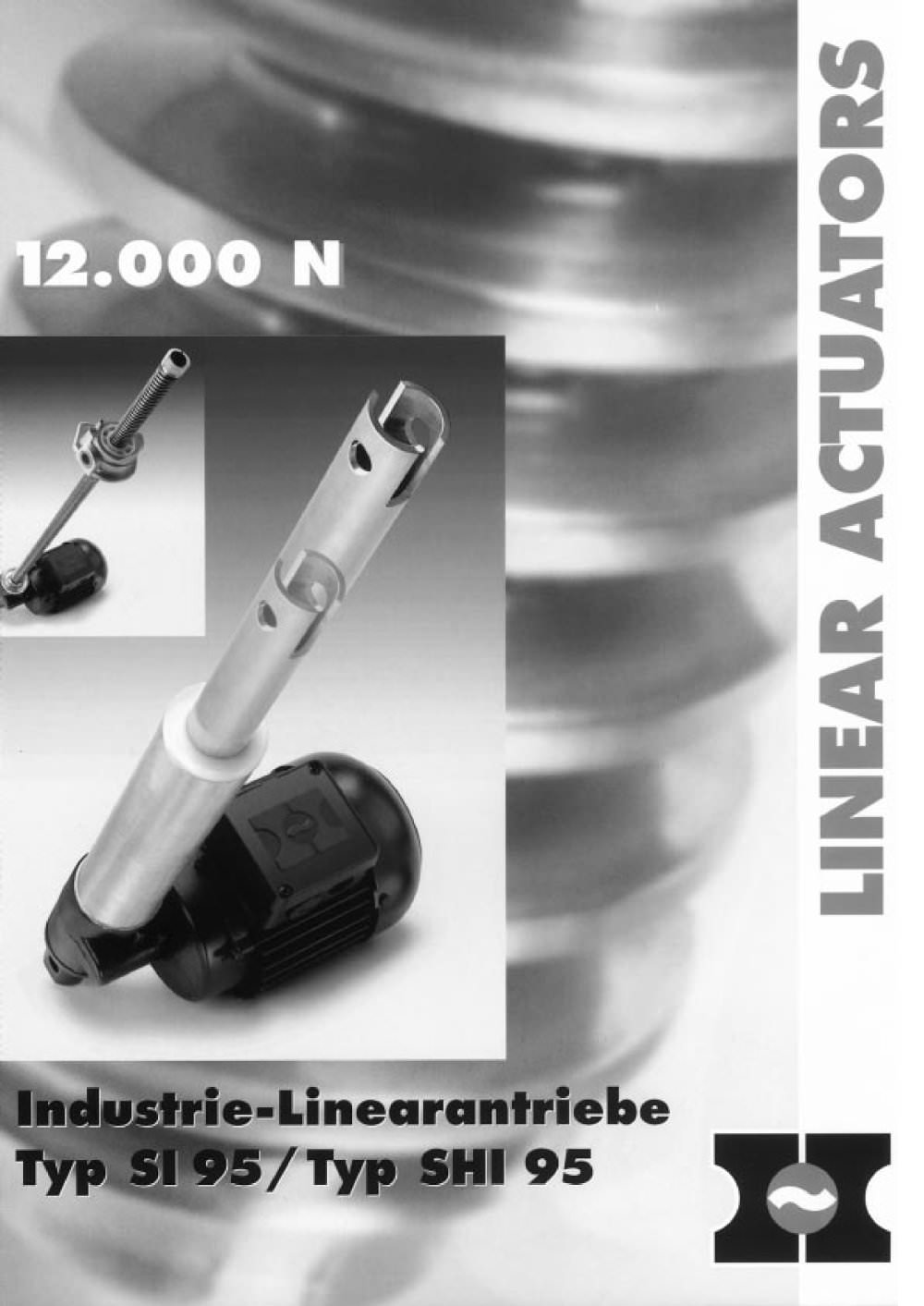

Linear actuator SI 95 / SHI 95
1 / 2 PagesView full catalog
Linear actuator SI 95 / SHI 95
Product catalog summary
Technical Specifications:
- Supply Voltage: Single-phase 100–230 V AC ±10%, Three-phase 400 V
- Stroke: Customizable upon request
- Protection System: IP 40 – IP 54
- Protection Class: Class 1
- Duty Cycle: S3–50% ED, 150 seconds on, 150 seconds off
- Operation System: Electric, low voltage via control box
- End Position: Mechanical limit stop
- Position Control: Optional analog distance measurement system (0–10 V, 0–20 mA) for SHI 95
Performance Data:
- Force, Frequency, Speed:
- 12000–2000 N at 50 Hz: 3.5–63.0 mm/s
- 12000–2000 N at 60 Hz: 4.2–75.0 mm/s
- 12000 N at 50 Hz: 7.0 mm/s
- 9000 N at 50 Hz: 14.0 mm/s
Control Box Option:
- Can operate up to four linear actuators
- Includes a low voltage handset
Additional Notes:
- Fixing dimension is load dependent
